Camera and light option for 500 m
Underwater camera and lighting assembly designed for depths up to 500 m, built in AISI 316 stainless steel with optional mounting brackets for various oceanographic systems.
Explore product sections
About

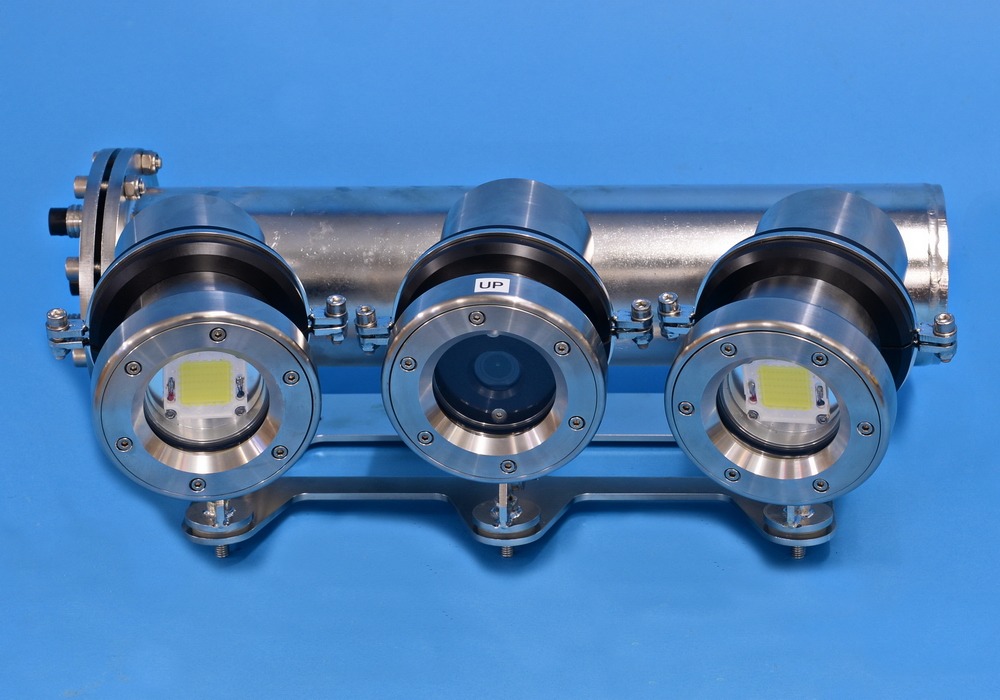

The KC Denmark Camera and Light Option (19.680) is a robust, pressure-resistant imaging system for underwater observation and documentation down to 500 meters. The unit is constructed in AISI 316 stainless steel and supplied with integrated light sources and video housing, optimized for low-light underwater operation. Mounting brackets can be provided to fit a wide range of oceanographic equipment, allowing seamless integration with existing sampling, lander, or monitoring platforms. The system provides stable illumination and clear video capture in deep-sea environments and is fully serviceable with Subconn connectors for power and data connections.
Features
Highlighted features for Camera and light option for 500 m
Specifications
Camera and light option for 500 m Specifications
- Material
- AISI 316 stainless steel
- Maximum depth
- 500 m
- Length
- 50 cm (excluding connectors)
- Height
- 19.5 cm
- Weight
- 26 kg including cables
Standard Delivery Content
The contents of a standard order of Camera and light option for 500 m
- Camera and light unit
- Stainless steel frame and housing
- Integrated Subconn connectors
- Mounting brackets (optional)
Application

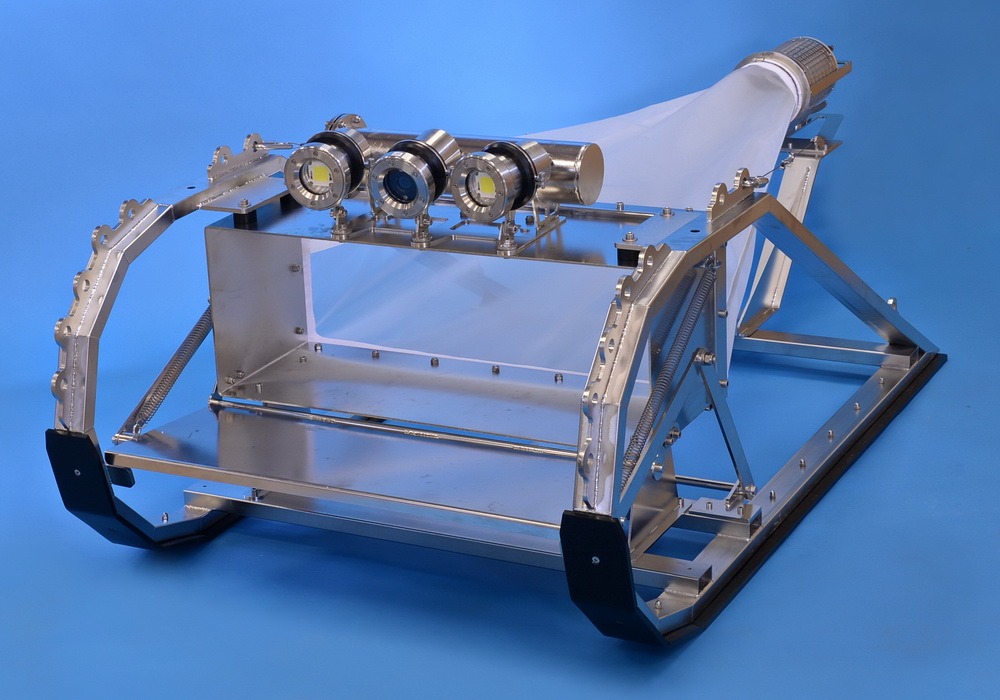

Used for visual documentation and real-time monitoring during deep-sea sampling and research operations, compatible with landers, corers, and other oceanographic instruments deployed to depths up to 500 m.
Accessories
Accessories for Camera and light option for 500 m
-
# __zz.mis-brkt19
Mounting brackets
Customizable brackets for attaching the camera and light assembly to oceanographic frames or instruments.
