Custom made Lander 2
Custom-built deep-sea lander in a triangular design with a removable buoyancy rack, prepared for acoustic releases and instrumentation; supports operations to 6000 m when equipped with the compatible deep-sea profiler.
Explore product sections
About

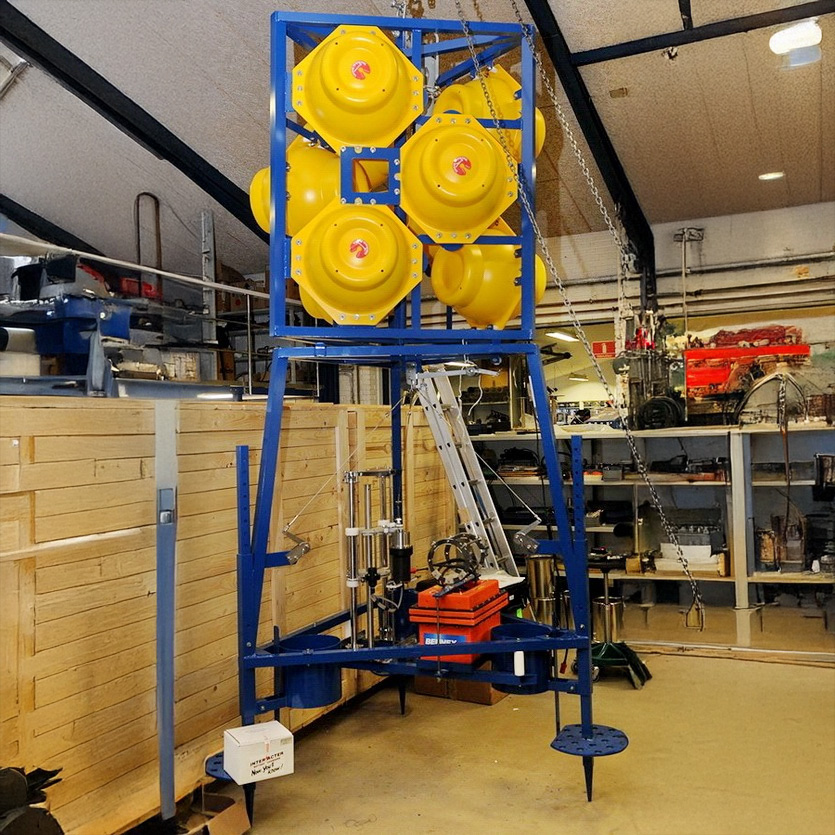

This custom made lander features a triangular framework with a removable rack for buoyancy spheres to ease transport and handling. The antenna is a 2 m Ø28 mm stainless-steel tube mounted on a flotation rack with powerful AISI 316 springs. The system is prepared for a deep-sea profiler (model 500.135, rated to 6000 m), VHF beaconing and xenon flasher, and incorporates catch ring, burn-wire release preparation, and fixtures for acoustic release transponders. Structural members are aluminium tube 50 × 50 × 4 mm (floatation rack and lower frame) with 4 adjustable legs. Buoyancy uses 17" glass spheres with PE-HD hard hats (approx. 25 kg per sphere). Ballast components include aluminium buckets (I.D. Ø26 cm), brackets, acrylic tube chain guards, and adjustable holders for acoustic release transponders in stainless steel 316 and polypropylene.
Features
Highlighted features for Custom made Lander 2
Specifications
Custom made Lander 2 Specifications
- Design
- Triangular lander with removable buoyancy rack
- Maximum depth (profiler)
- 6000 m
- Antenna
- 2 m, Ø28 mm stainless steel tube
- Springs (antenna mount)
- AISI 316 stainless steel, powerful type
- Floatation rack
- Aluminium tube 50 × 50 × 4 mm, removable
- Catch ring
- Ø50 cm, AISI 316 stainless steel

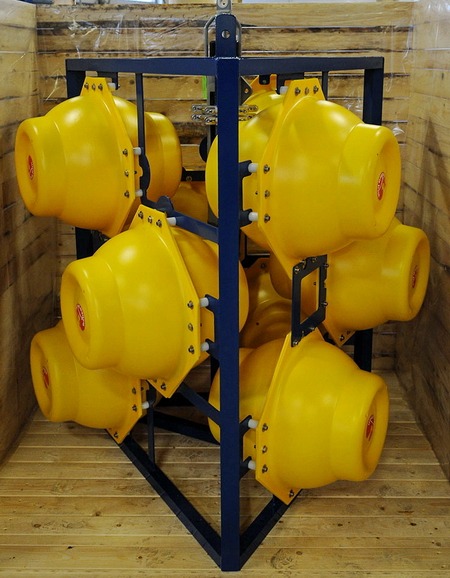

- Buoyancy spheres
- 17" glass spheres with yellow PE-HD hard hats, approx. 25 kg per sphere
- Lower frame
- Aluminium tube 50 × 50 × 4 mm, 4 adjustable legs
- Release preparation
- Burn wire release system readiness
- Ballast buckets
- 3 pcs aluminium, I.D. Ø26 cm
- Ballast protection
- 3 pcs brackets and 4 pcs acrylic tube for chain protection
- Transponder holders
- 4 pcs adjustable, stainless steel 316 and polypropylene
- Acoustic release
- Prepared for 2 pcs transponder system
Application
For deep-sea oceanographic deployments, environmental monitoring and benthic studies, instrument hosting, recovery via acoustic releases, and beacon-assisted localization up to 6000 m (with compatible profiler).
Accessories
Accessories for Custom made Lander 2
-

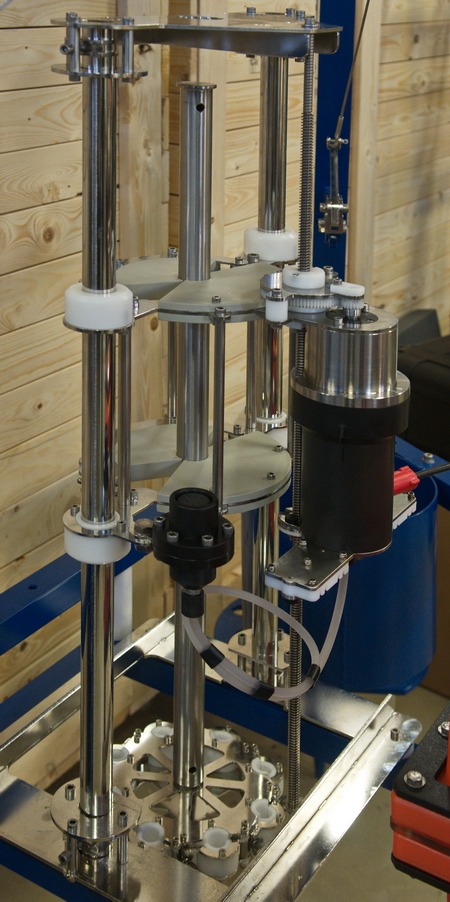

# 500.135
Deep-sea Profiler
Deep-sea profiler compatible with the lander; rated to 6000 m.
-
# __zz.mis-786234
ST400A Xenon Flasher
Xenon flasher for 6000 m depth.
-
# __zz.mis-238945652
VHF Radio Beacon (Transmitter)
VHF beacon transmitter for localization.
-
# __zz.mis-28369211
Beacon Receiver
Receiver unit for VHF beacon tracking.
-
# __zz.mis-0098239846
Acoustic Release Transponder(s)
Transponders for acoustic release; positions provided on flotation rack and lower frame.
