Custom made Lander 3

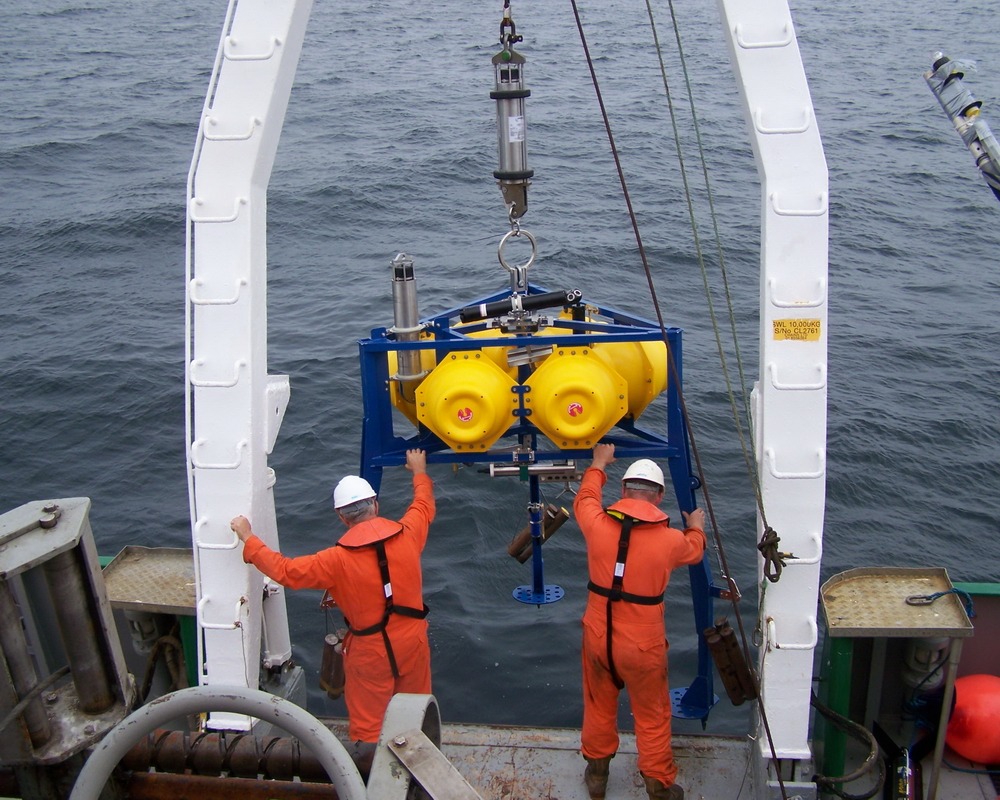

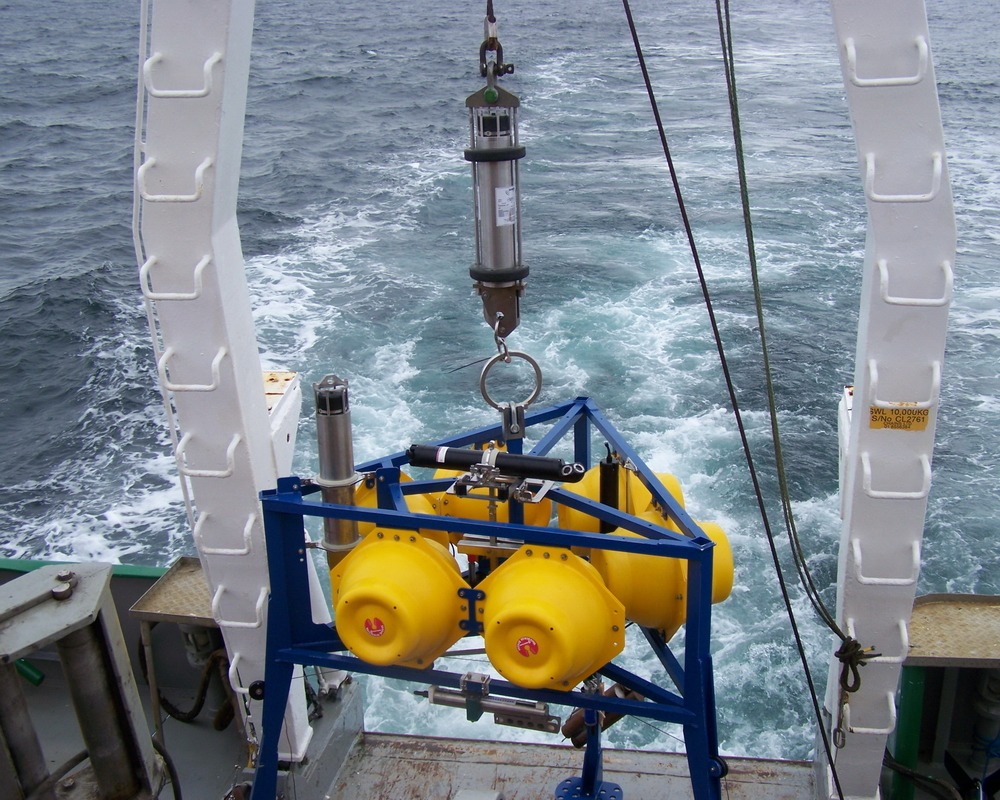

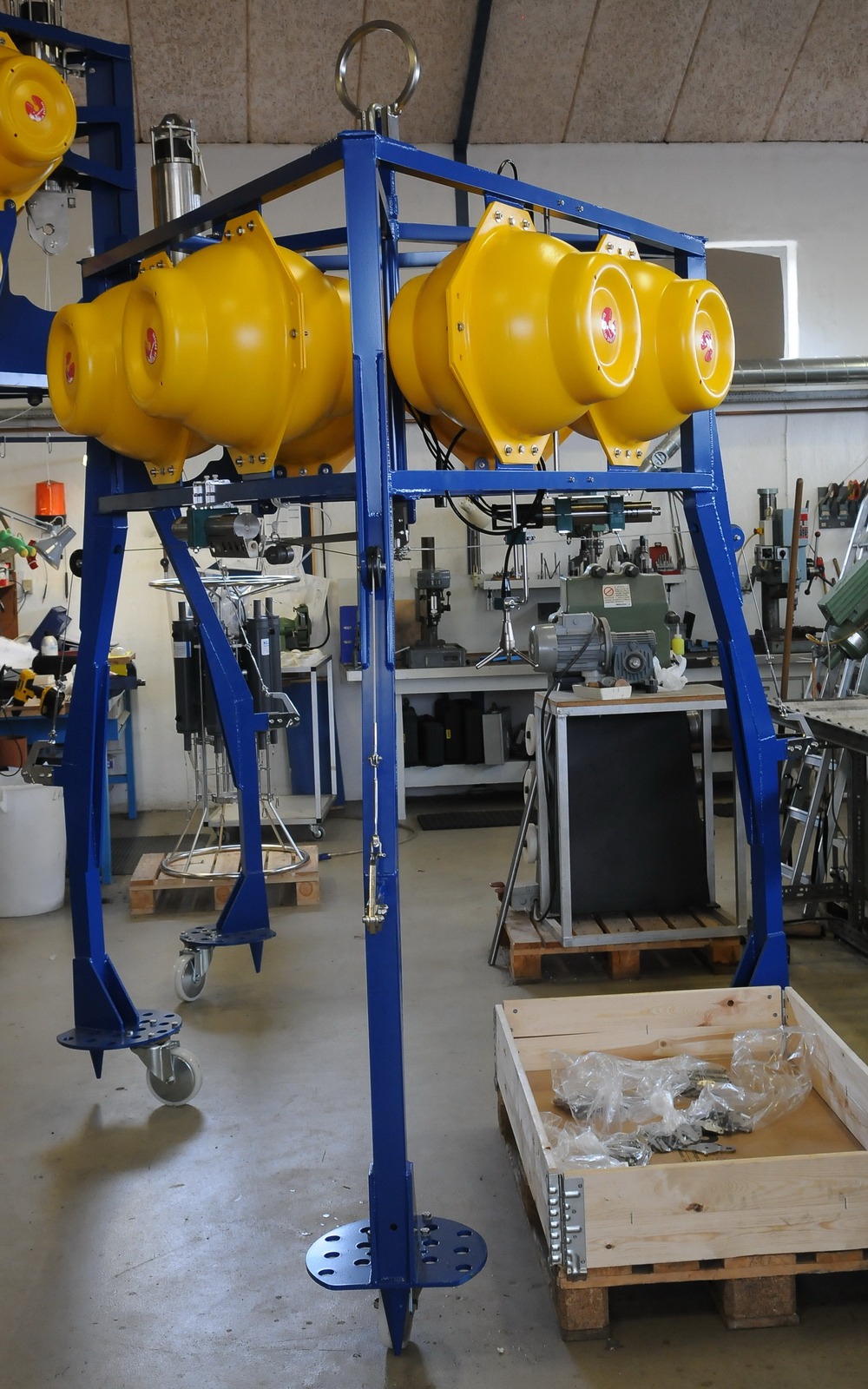

Custom made triangular lander designed with 6 buoyancy spheres for deep-sea deployment.
Explore product sections
About
The custom made lander features a triangular design equipped with six buoyancy spheres. It is constructed with a combination of stainless steel, aluminium, and polyethylene components, designed for reliable operation under high-pressure deep-sea environments up to 6000 m depth.
Features
Highlighted features for Custom made Lander 3
Specifications
Custom made Lander 3 Specifications
- Antenna
- 2 meter Ø28 mm stainless steel tube, mounted on a floatation rack with 3 pcs springs, AISI 316 stainless steel
- Flash holder
- Manufactured from green polyethylene (PE-HD)
- ST400A XENON FLASHER
- Rated for 6000 m depth
- VHF Radio Beacon
- Transmitter unit
- Beacon holder
- Manufactured from green polyethylene (PE-HD) and AISI stainless steel 316
- Floatation rack
- Aluminium tube 50 x 50 x 4 mm, prepared for 2 acoustic release transponder systems and 6 glass spheres
- Catch ring
- Ø50 cm diameter, AISI 316 stainless steel, mounted on floatation rack
- Buoyancy
- 17" glass spheres with yellow PE-HD hard hats, approx. 25 kg buoyancy per sphere
- Lower frame
- Aluminium tube 50 x 50 x 4 mm with 4 adjustable legs, prepared for burn wire release system
- Burn wire release system
- Laser cut AISI 316 stainless steel, includes holder for acoustic release transponder
Application
Used for deep-sea research applications, including autonomous deployment of sensors, cameras, or sampling systems on the seafloor at depths up to 6000 meters.
Accessories
Accessories for Custom made Lander 3
-
# __zz.mis-74aa98c1
ST400A XENON FLASHER
High-intensity flasher rated for 6000 m depth. Included in system.
-
# __zz.mis-89b7da6e
VHF Radio Beacon
VHF transmitter beacon for locating lander. Included in system.
