Custom made Lander 4
Custom made triangular deep-sea lander designed with 9 buoyancy spheres and robust stainless steel frame for 6000 m depth operation.
Explore product sections
About

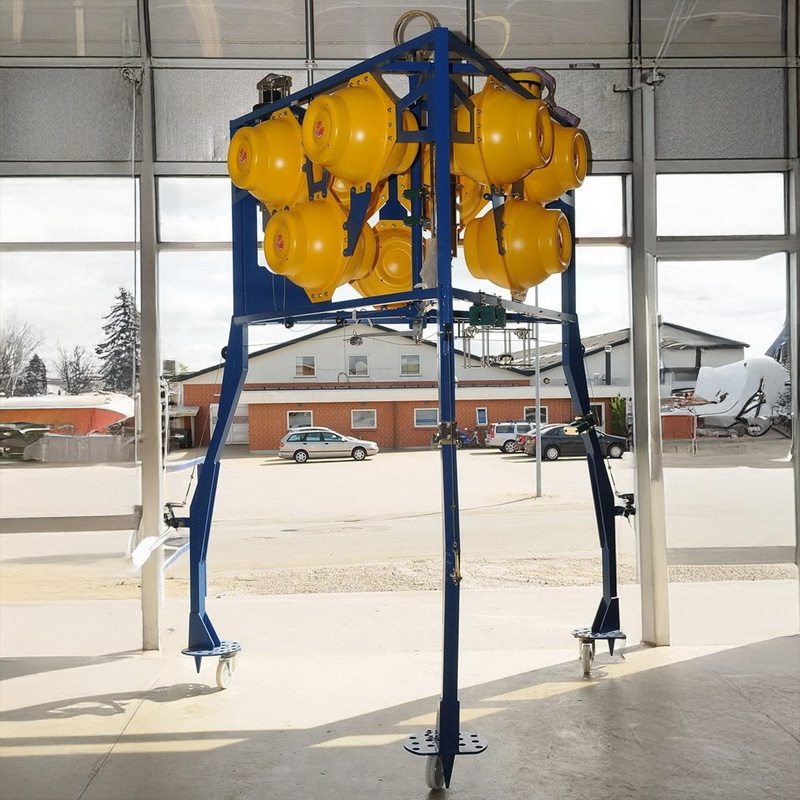

This custom made lander features a triangular design with 9 buoyancy spheres. The construction includes high-grade AISI 316 stainless steel, aluminium, and polyethylene components. Designed for deep-sea applications, the lander supports mounting of transponders, flashers, and beacons, and includes a burn wire release system for controlled ballast drop. The robust floatation rack accommodates multiple glass spheres for buoyancy, providing stability and strength under extreme underwater pressure.
Features
Highlighted features for Custom made Lander 4
Specifications
Custom made Lander 4 Specifications
- Antenna
- 2 meter Ø28 mm stainless steel tube, mounted on floatation rack with 3 pcs powerful springs, AISI 316 stainless steel
- Flash holder
- Complete, manufactured from green polyethylene (PE-HD)
- ST400A XENON FLASHER
- For 6000 m depth
- VHF Radio Beacon
- Transmitter
- Beacon holder
- Manufactured from green polyethylene (PE-HD) and AISI stainless steel 316
- Floatation rack
- Aluminium tube 50 x 50 x 4 mm, prepared for 2 pcs acoustic release transponder systems and 9 glass spheres
- Catch ring
- Ø50 cm diameter, AISI 316 stainless steel, mounted on floatation rack

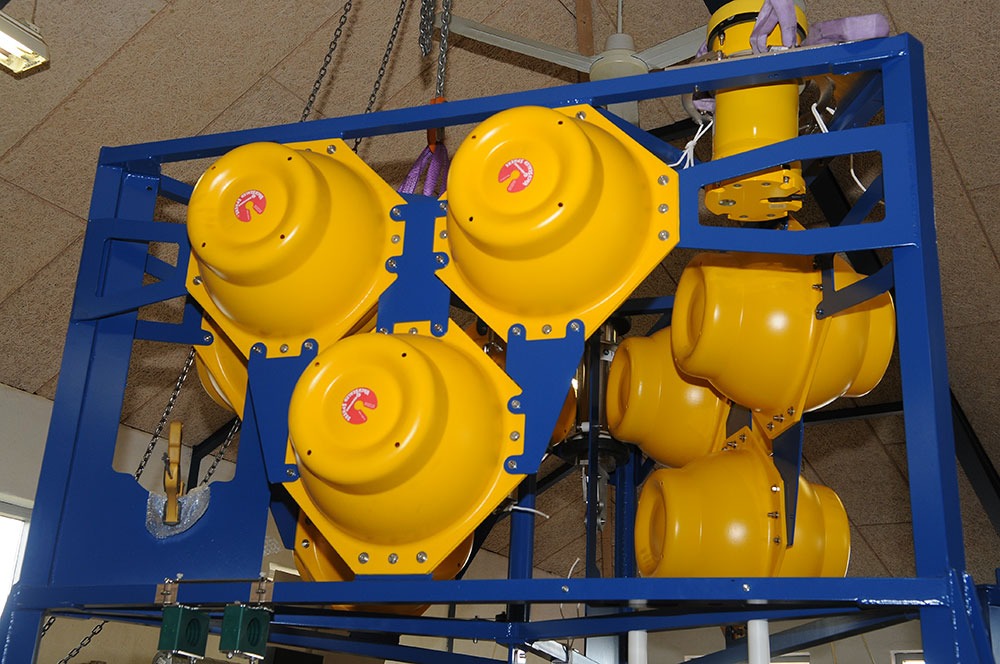

- Buoyancy
- 17" glass spheres with yellow PE-HD hard hats, approx. 25 kg buoyancy per sphere
- Lower frame
- Aluminium tube 50 x 50 x 4 mm with 4 adjustable legs, prepared for burn wire release system
- Burn wire release system for ballast
- Laser cut AISI 316 stainless steel, includes holder for acoustic release transponder
Application
Used for deep-sea observation, monitoring, and sampling deployments down to 6000 meters. Suitable for use with acoustic release systems, flashers, and radio beacons for autonomous underwater operations.
Accessories
Accessories for Custom made Lander 4
-
# __zz.mis-64d8c92a
ST400A XENON FLASHER
Xenon flasher for 6000 m depth. Included in setup.
-
# __zz.mis-b389b22a
VHF Radio Beacon
VHF transmitter beacon for surface tracking. Included in setup.
