Lander with Benthic Chamber and Syringe Station
Deep-sea benthic lander rated for 6000 m, equipped with a hydraulically operated benthic chamber and a multi water sampler featuring 12 syringes for collection and injection of preservation fluids or tracers.
Explore product sections
About

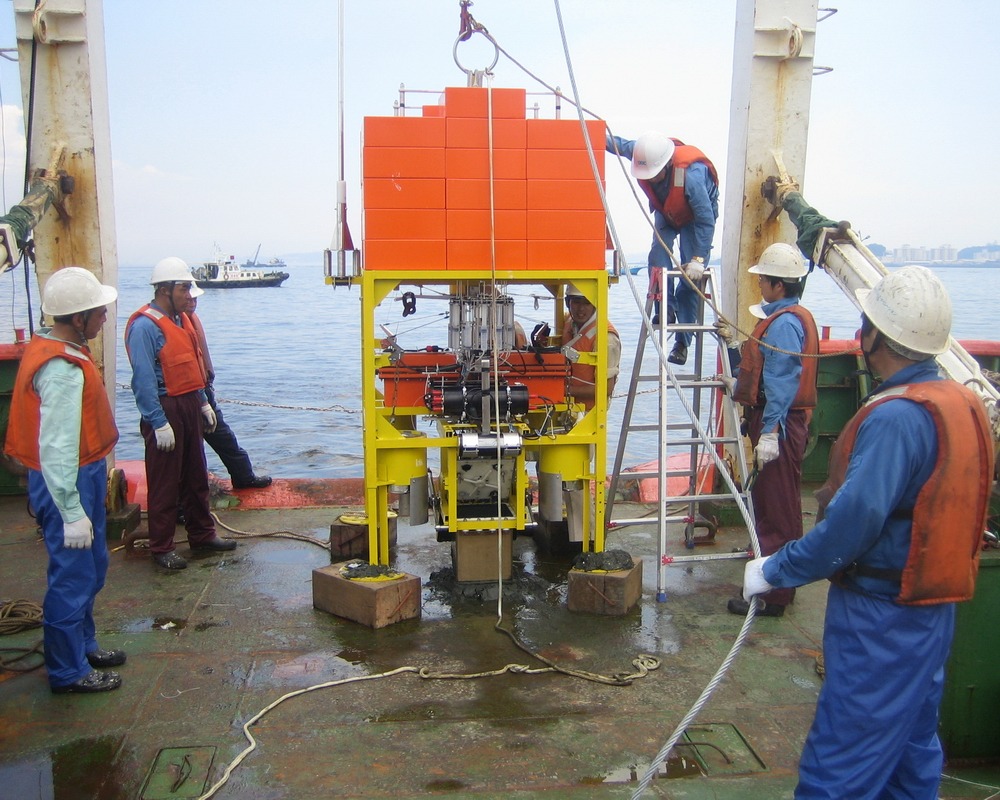

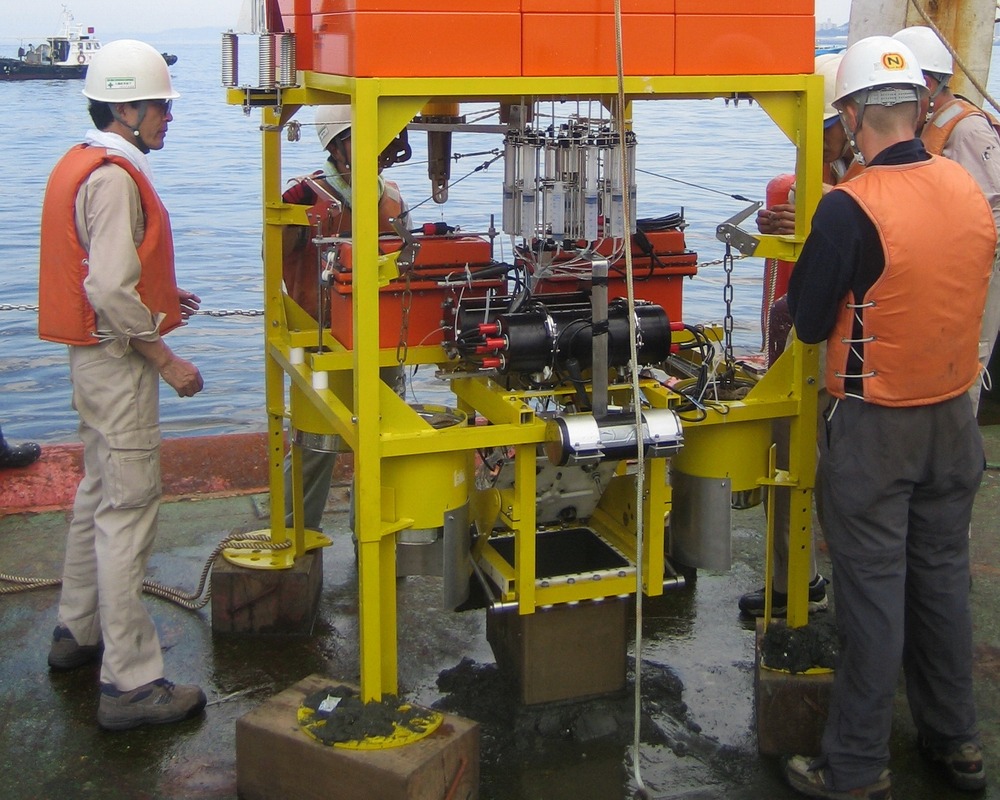

This autonomous benthic lander is designed for deployments down to 6000 m depth. It features a hydraulically actuated benthic chamber for sediment incubation and recovery, along with a 12-syringe multi water sampler capable of both sampling and injection of fluids such as preservation agents or isotopic tracers (e.g., carbon or nitrogen). The system includes multiple structural and operational subsystems: an antenna and flotation rack with stainless steel springs; a hydraulically driven shovel for sediment core recovery; robust aluminium and stainless steel framing; ballast and burn wire release mechanisms; and complete integration of beacon, safety, and acoustic release components.
Features
Highlighted features for Lander with Benthic Chamber and Syringe Station
Specifications
Lander with Benthic Chamber and Syringe Station Specifications
- Depth rating
- 6000 m
- Multi water sampler
- 12 syringes x 50 ml each
- Antenna
- 2 m, Ø28 mm, stainless steel tube
- Flotation rack material
- Aluminium tube 50 x 50 x 4 mm
- Springs
- 3 pcs, AISI 316 stainless steel

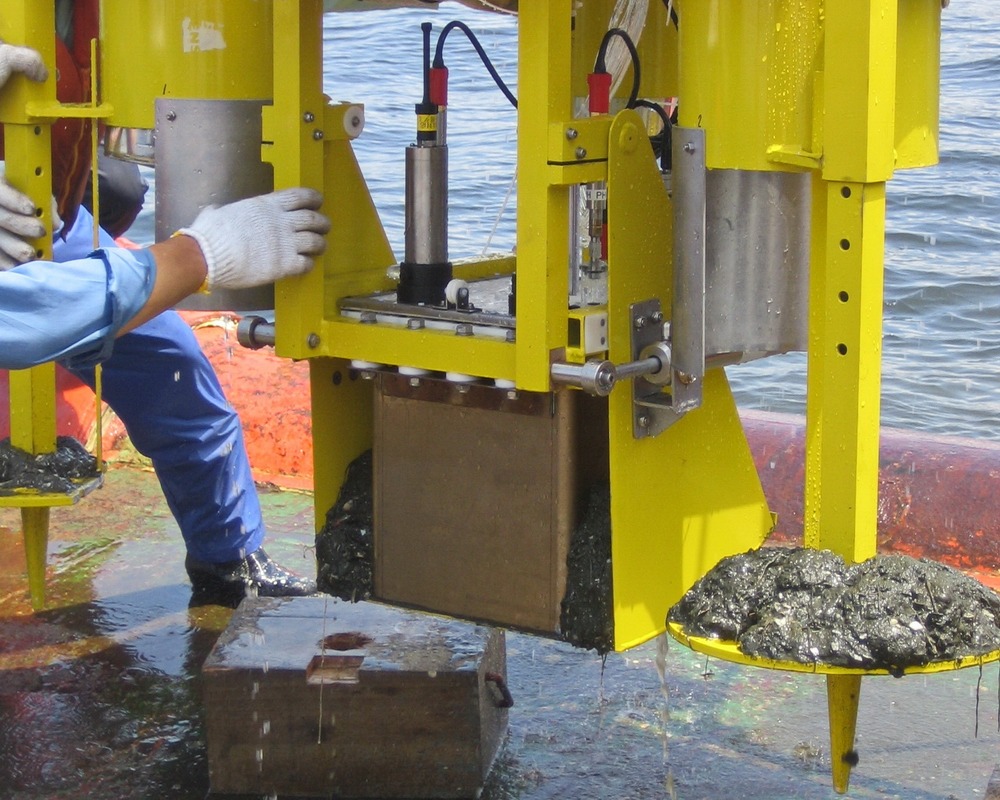

- Benthic chamber
- Hydraulically driven, includes shovel for sediment recovery
- Catch ring
- Ø50 cm, AISI 316 stainless steel
- Lower frame
- Aluminium tube 50 x 50 x 4 mm with 4 adjustable legs
- Ballast system
- 4 pcs aluminium, I.D. Ø26 cm, with acrylic tube protection
- Beacon holder
- Green polyethylene (PE-HD) and AISI 316 stainless steel
Standard Delivery Content
The contents of a standard order of Lander with Benthic Chamber and Syringe Station
- Benthic chamber with hydraulic closure system
- Multi water sampler with 12 x 50 ml syringes
- Antenna assembly with stainless steel tubing and flotation rack
- Floatation rack with springs and syntactic foam
- Beacon holder and VHF radio beacon system
- ST400A Xenon flasher rated for 6000 m
- Lower aluminium frame with adjustable legs
- Burn wire release system and ballast setup
- Acoustic release transponder holders
Application
Used for deep-sea benthic chamber incubations, pore-water sampling, and tracer injection experiments at depths up to 6000 m. Suitable for studies of benthic fluxes, biogeochemical processes, and sediment-water interactions.
Accessories
Accessories for Lander with Benthic Chamber and Syringe Station
-
# benthic-chamber
Benthic Chamber
Hydraulically driven sediment incubation chamber, details available in related product page.
-
# small-multi-water-sampler-12-x-50-ml
Small Multi Water Sampler 12 x 50 ml
Multi-syringe water sampler, similar model referenced in product description.
