Square lander

Product #: 500.103

Square lander frame with benthic chamber and various water samplers designed for shallow water deployment without buoyancy system.

Explore product sections

About Features Specifications Standard Contents Application Accessories

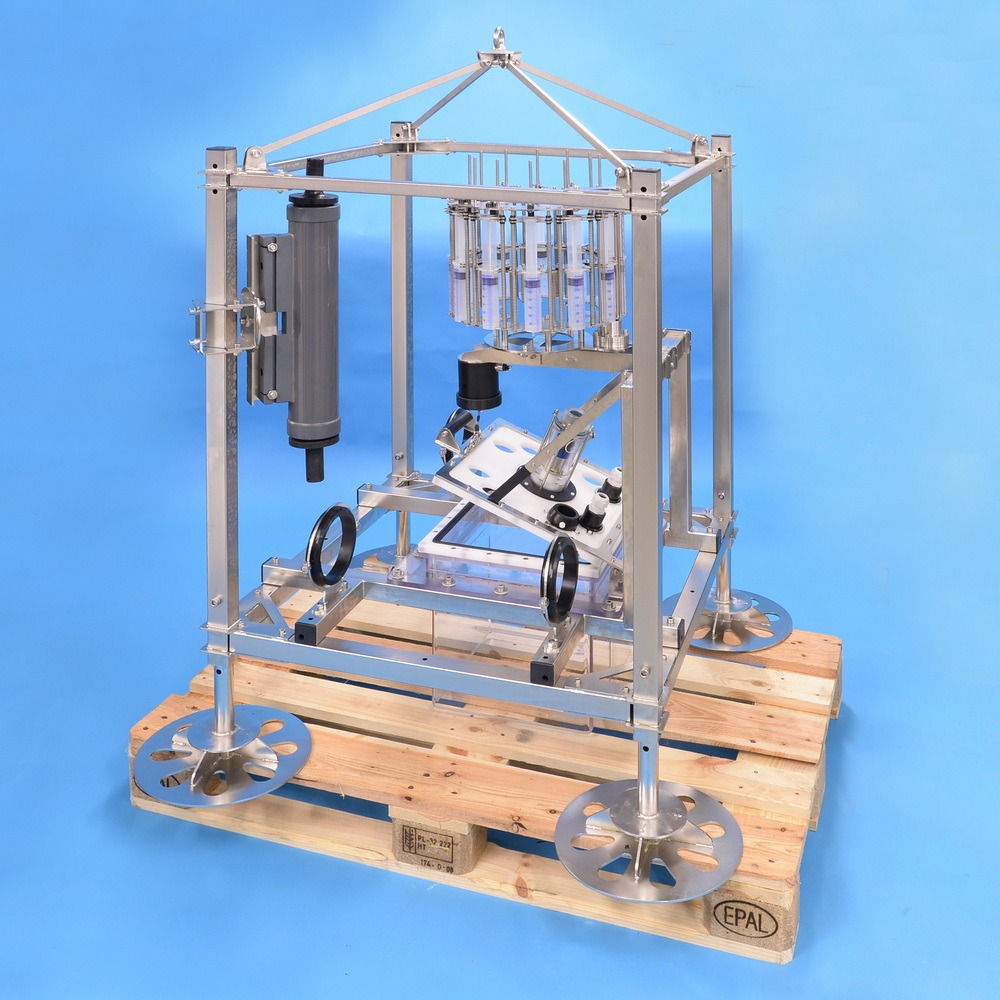

Imgi 11 500.103 Lander 1000 1000 F 1
Imgi 11 500.103 Lander 1000 1000 F 1
Imgi 11 500.103 Lander 1000 1000 F 1

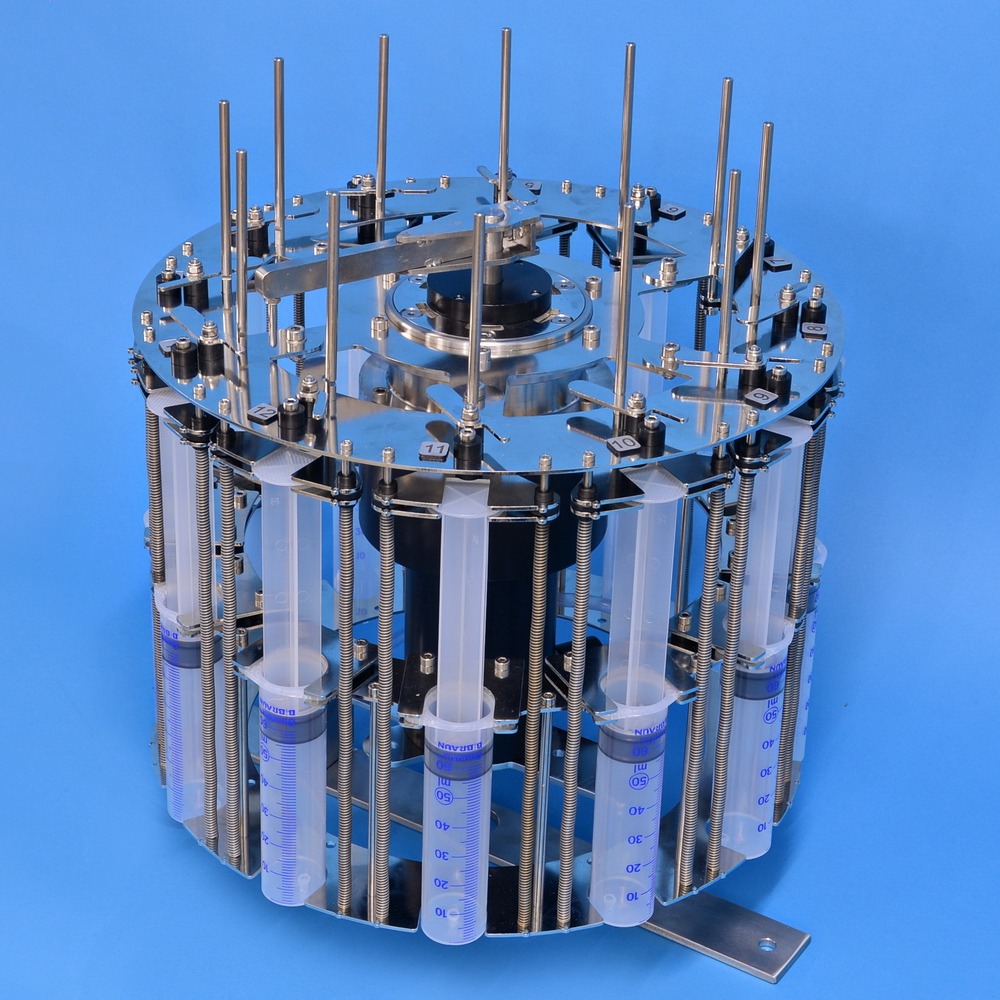

Imgi 12 100.210 Multi Water Sampler 1000 1000 F 1
Imgi 12 100.210 Multi Water Sampler 1000 1000 F 1

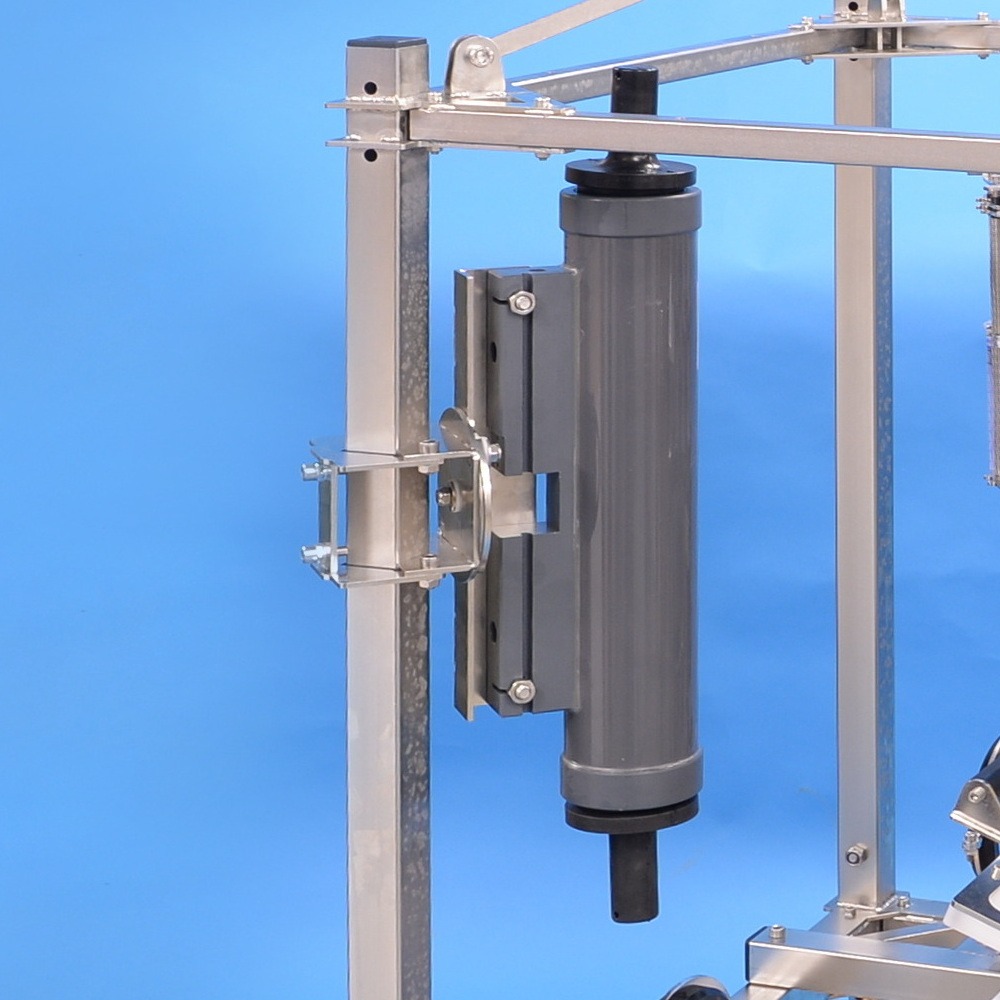

Imgi 13 Niskin 1000 1000 F 1
Imgi 13 Niskin 1000 1000 F 1

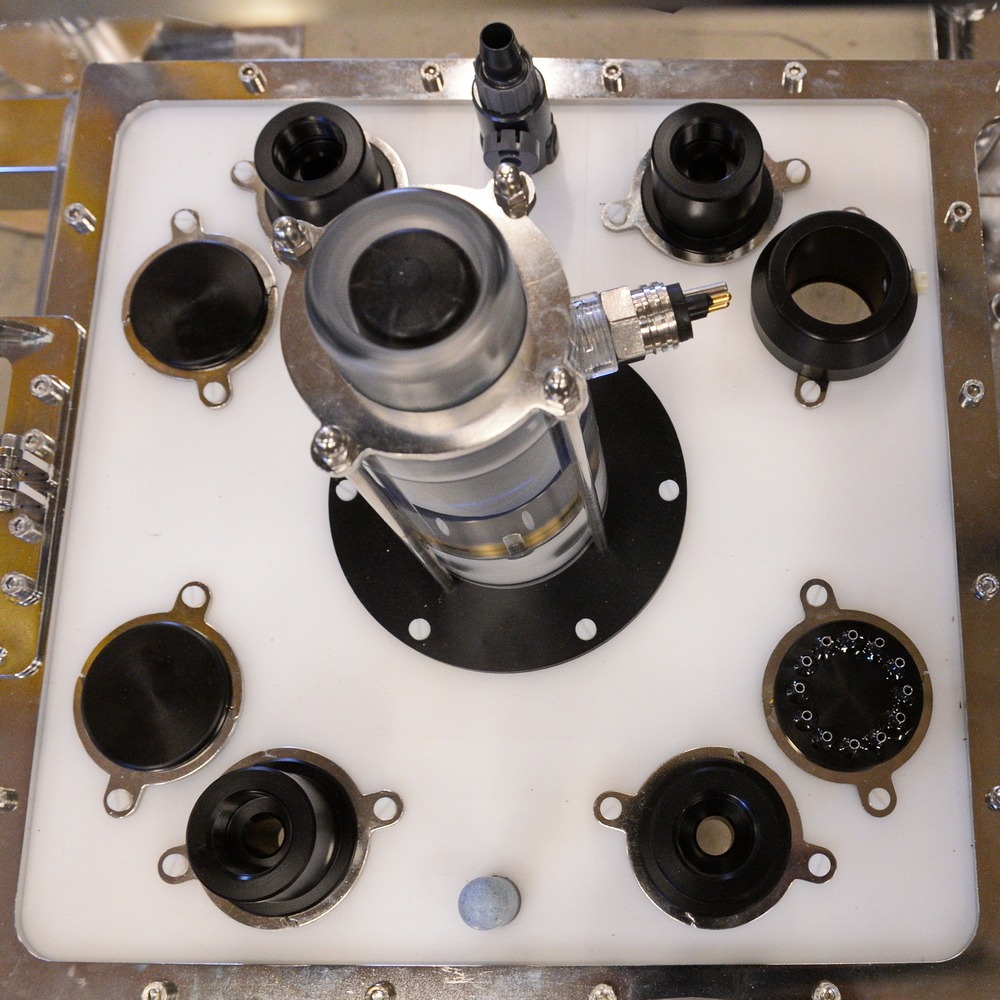

Imgi 14 Benthic Chamber Top View 1000 1000 F 1
Imgi 14 Benthic Chamber Top View 1000 1000 F 1

About

Small and compact lander rack constructed from AISI 316 stainless steel tubing (40 x 40 x 2 mm) with four adjustable legs. The standard rack can be configured with different items and accessories. This model lacks a buoyancy system and must be deployed using a cable. The design includes multiple sampling and sensor integration components for benthic studies.

Contact us regarding this product

Features

Highlighted features for Square lander

01
Durable stainless steel frame
Made of AISI 316 stainless steel tubing with adjustable legs for stability and corrosion resistance.
02
No buoyancy system
Designed for deployment by cable, suitable for shallow-water applications.
03
Integrated benthic chamber with stirrer
Polycarbonate chamber with POM frame, 16 neodymium magnets, pressure-compensated motor, and support for 8 sensors.
04
Sensor and sampler integration
Supports connection to multi water sampler and sensors from Aanderaa or Unisense.

Specifications

Square lander Specifications

Dimensions (L x W x H)
106 x 106 x 146 cm
Dimensions (without feet and lifting point)
80 x 80 x 118 cm
Weight
87 kg

Standard Delivery Content

The contents of a standard order of Square lander

  • Lander frame (AISI 316 stainless steel, 40 x 40 x 2 mm)
  • 4 adjustable legs
  • Benthic chamber with stirrer
  • Multi water sampler, 12 x 50 ml syringes
  • Niskin water sampler 1.7 L

Application

Used for benthic chamber experiments and multi-water sampling in shallow marine environments where cable deployment is required.

Do you have application questions?

Accessories

See all Accessories

Accessories for Square lander

  • # 100.210

    Multi water sampler

    12 pcs syringes (50 ml) made of nylon (PA 6.6). Includes time-lapsed trigger for individual sample programming. Included in standard delivery.

  • # 61.100

    Niskin water sampler

    1.7 L capacity, stepless adjustable from horizontal to vertical, released by burn wire system. Included in standard delivery.

  • # __zz.mis-benthic

    Benthic chamber with stirrer

    Polycarbonate chamber with POM frame, 16 magnets, supports 8 sensors, includes pressure-compensated stirrer. Included in standard delivery.
