Ballast Water Analyzer

Product #: __zz.mis-bwanz01

Automated ballast water compliance testing unit for rapid in-situ monitoring of live organisms in ballast water discharge or intake, ensuring compliance with IMO D2 and USCG standards.

Explore product sections

About Features Application
Imgi 19 23.645 Ballast Water Sampler Inline F 1000 700 1
Imgi 18 23.625 Water Sampler 2 F 1000 700 1
Imgi 18 23.625 Water Sampler 2 F 1000 700 1
Imgi 19 23.645 Ballast Water Sampler Inline F 1000 700 1
Imgi 19 23.645 Ballast Water Sampler Inline F 1000 700 1
Imgi 20 Ballast Water Test Kit 1000 700 F 1
Imgi 20 Ballast Water Test Kit 1000 700 F 1
Imgi 22 Analyzer With Computer A 1000 700 F 1
Imgi 22 Analyzer With Computer A 1000 700 F 1
Imgi 23 Test 1000 700 F 1
Imgi 23 Test 1000 700 F 1
Imgi 21 Analyzer With Computer 1000 700 F 1
Imgi 21 Analyzer With Computer 1000 700 F 1

About

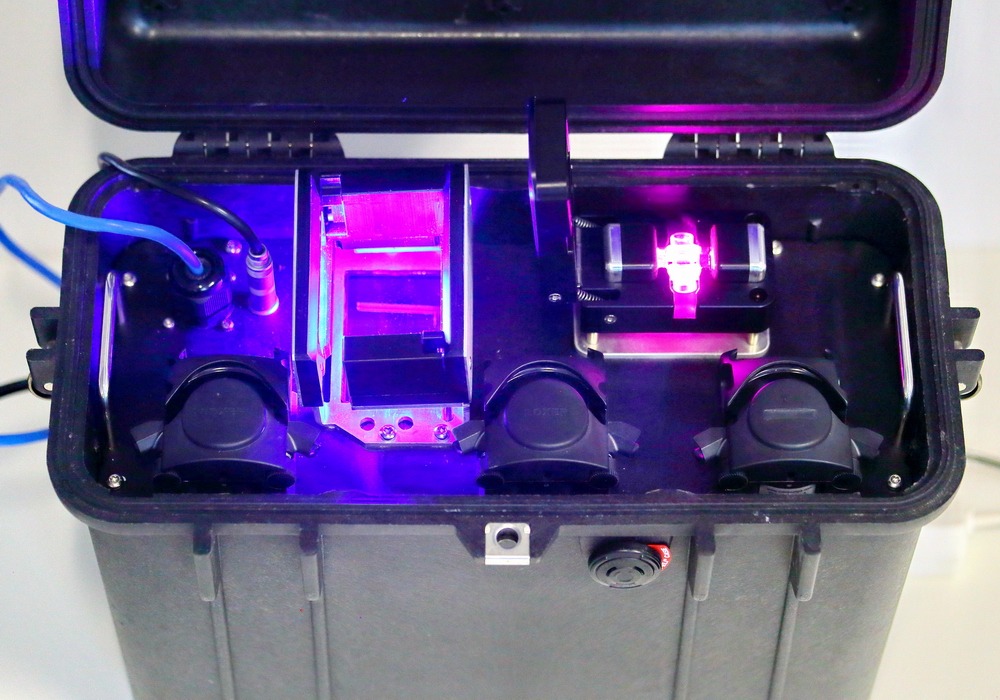

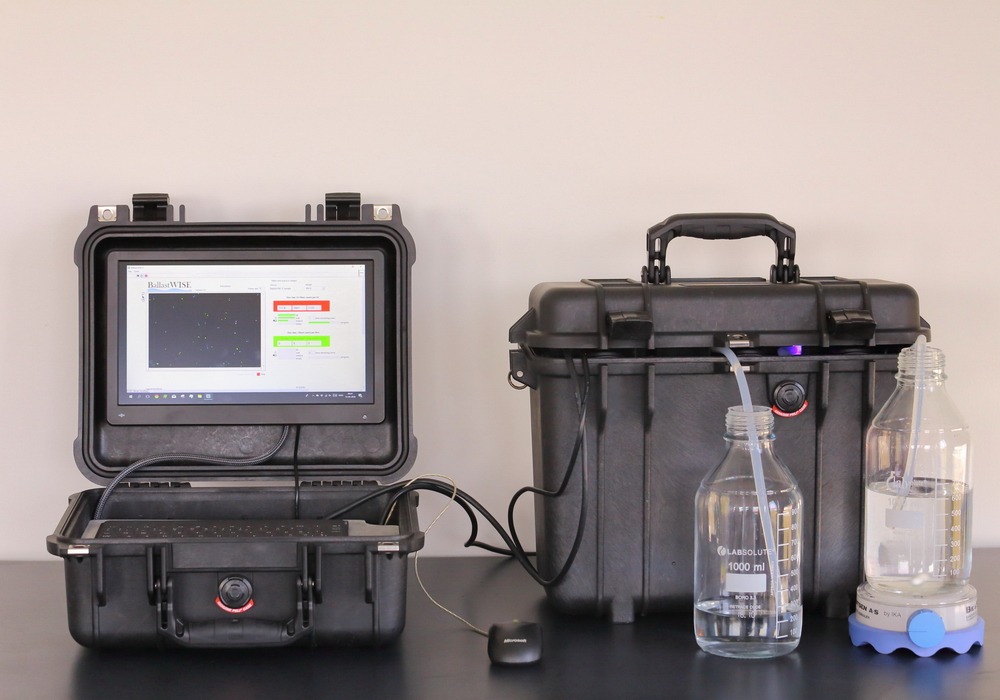

The KC Denmark Ballast Water Analyzer is an automated system developed in collaboration with MicroWise to provide reliable compliance testing of ballast water. It ensures conformity with international standards (IMO D2 and US Coast Guard) that restrict ballast water discharge to a maximum of 10 living organisms/m³ >50 µm and 10 living organisms/ml between 10–50 µm. The system enables fast, on-site detection of living organisms without chemical treatment or advanced laboratory skills. The patented BallastWISE technology combines manual microscopy principles with image analysis and size fractionation, offering automated counting and differentiation of organisms. The analyzer is portable, durable, and available in both standard and inline valve-free versions for various shipboard or port applications.

Contact us regarding this product

Features

Highlighted features for Ballast Water Analyzer

01
Automated organism counting

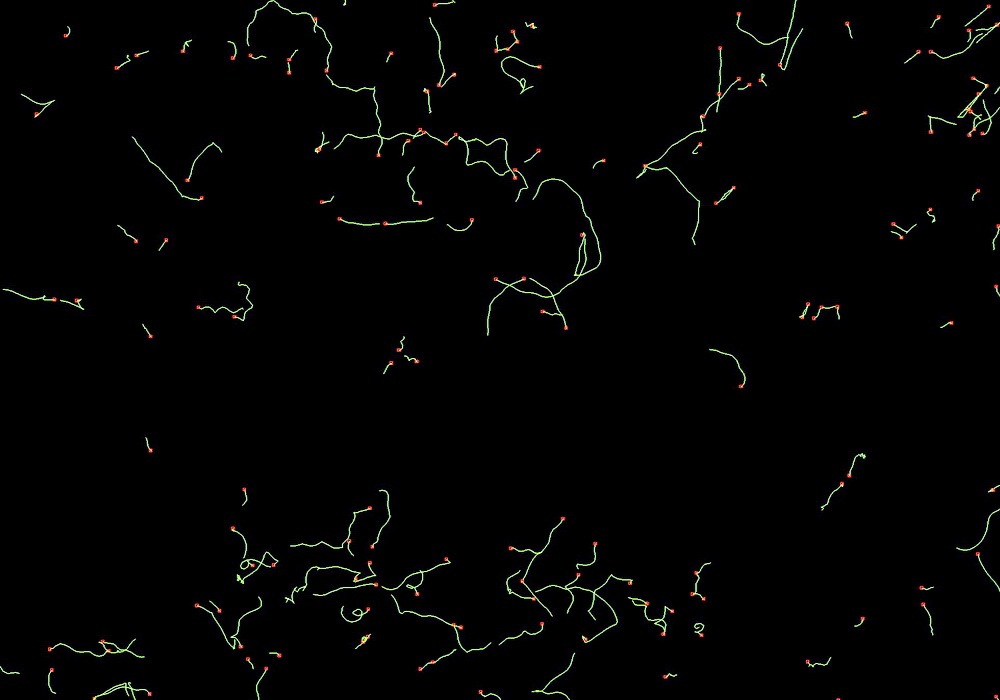

Performs direct counts of individual live organisms via image analysis and size fractionation, eliminating the need for manual microscopy.
02
Dual size range detection
Measures organisms in both 10–50 µm and >50 µm size classes according to IMO D2 and USCG requirements.
03

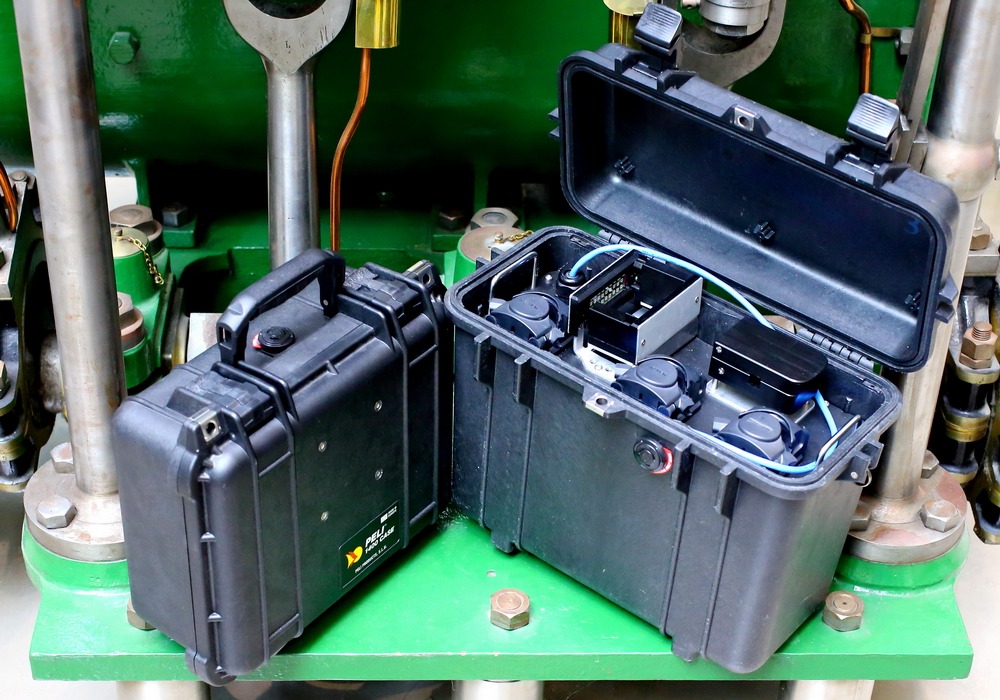

Portable and robust design
Ruggedized for shipboard and port operations, providing rapid on-site results without chemical preparation.
04
Chemical-free operation
Requires no reagents or laboratory skills, ensuring fast, safe, and environmentally neutral monitoring.
05

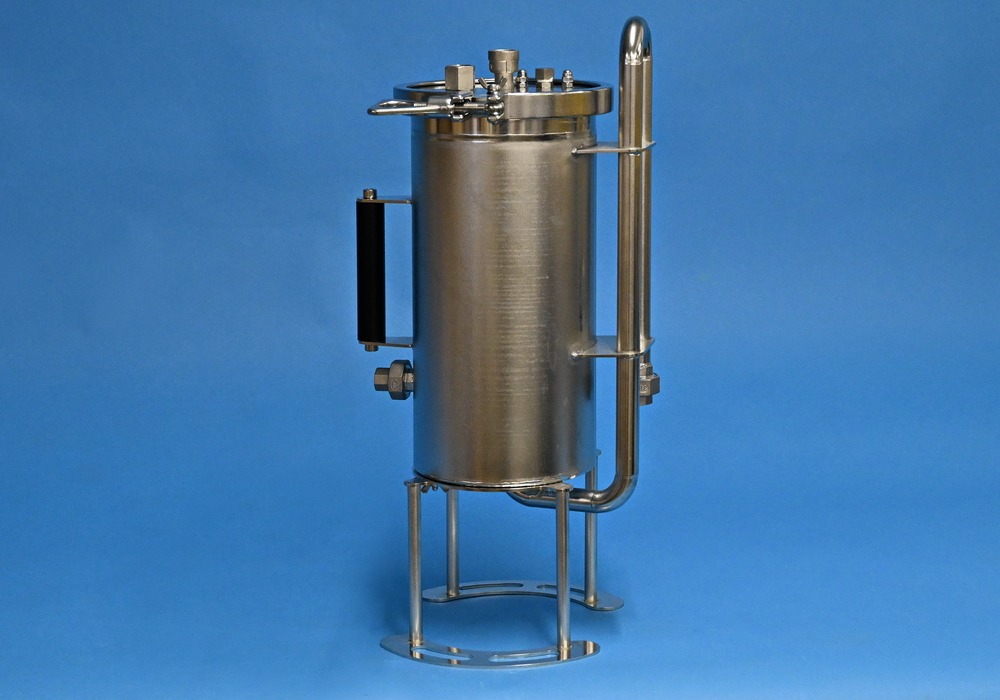

Inline variant available
Offered as a valve-free inline version for continuous flow ballast water monitoring.
06
Developed in collaboration with MicroWise
Built jointly with MicroWise, leveraging patented BallastWISE technology for advanced compliance testing.

Application

Used for automated compliance testing of ballast water discharges to ensure adherence to the IMO D2 and US Coast Guard ballast water management regulations. Applicable for shipboard testing, port state control, and laboratory validation of ballast water management systems.
