Digital Flow Meter
Digital flow meter for determining the amount of water passing through a plankton net or a pipe of known diameter.
Explore product sections
About

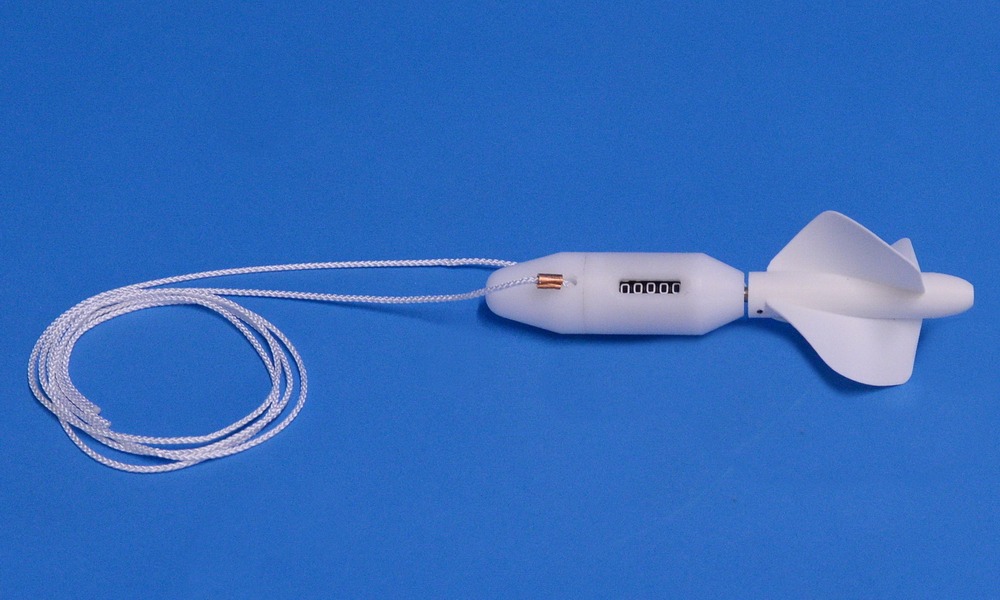

The 23.090 Digital Flow Meter is designed to measure the volume of water passing through a plankton net or pipe. It features a 5-digit counter, a free-flooding design for unlimited depth use, and a simple two-wire point connection at the nosepiece. The model is recommended for horizontal tows; for vertical use, a back-run stop version (23.091) is available.
Features
Highlighted features for Digital Flow Meter
Specifications
Digital Flow Meter Specifications
- Propeller diameter
- 70 mm
- Counter body diameter
- 32 mm
- Length
- 185 mm
- Counter
- 5-digit mechanical
- Flow meter read-out max value
- 99999
- Design
- Free flooding for unlimited depth use
- Connection
- Two-wire point connection at nosepiece
Application

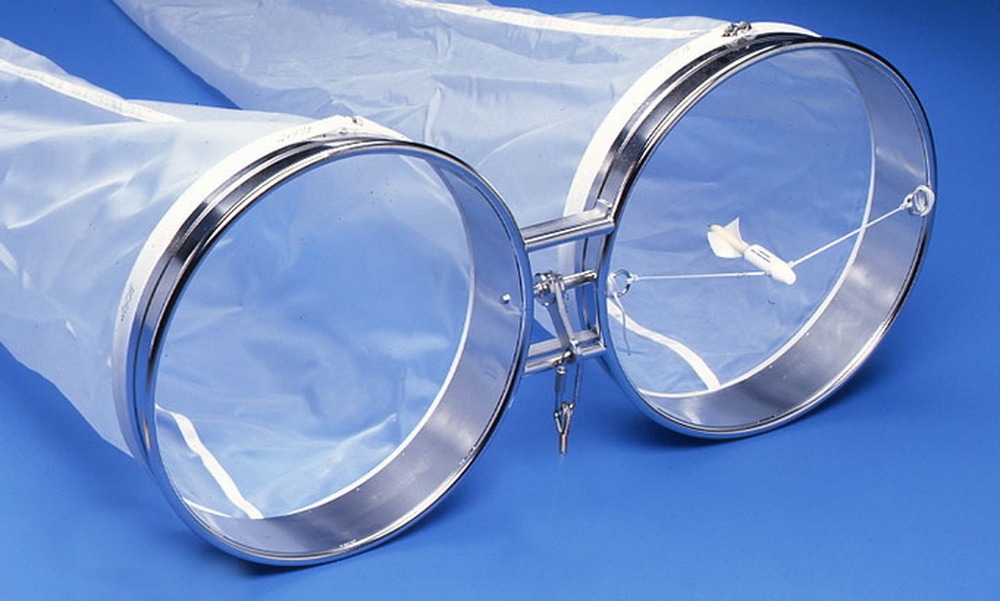

Used to determine the water flow through plankton nets in horizontal towing operations or through pipes of defined diameter. Suitable for oceanographic and limnological sampling applications.
Accessories
Accessories for Digital Flow Meter
-
# 23.091
Digital Flow Meter with back-run stop
For vertical use, prevents counting during retrieval.
-
# __zz.mis-1a8e5f2b
Conversion Table, Counter vs. Water Volume Spreadsheet
Excel spreadsheet for converting counter read-outs to water volume. Included as a downloadable file.
