Agassiz trawl, 300 x 80 cm
Heavy-duty Agassiz trawl in AISI 316 stainless steel with 300 x 80 cm opening, used for collecting bottom-dwelling organisms and invertebrates.
Explore product sections
About

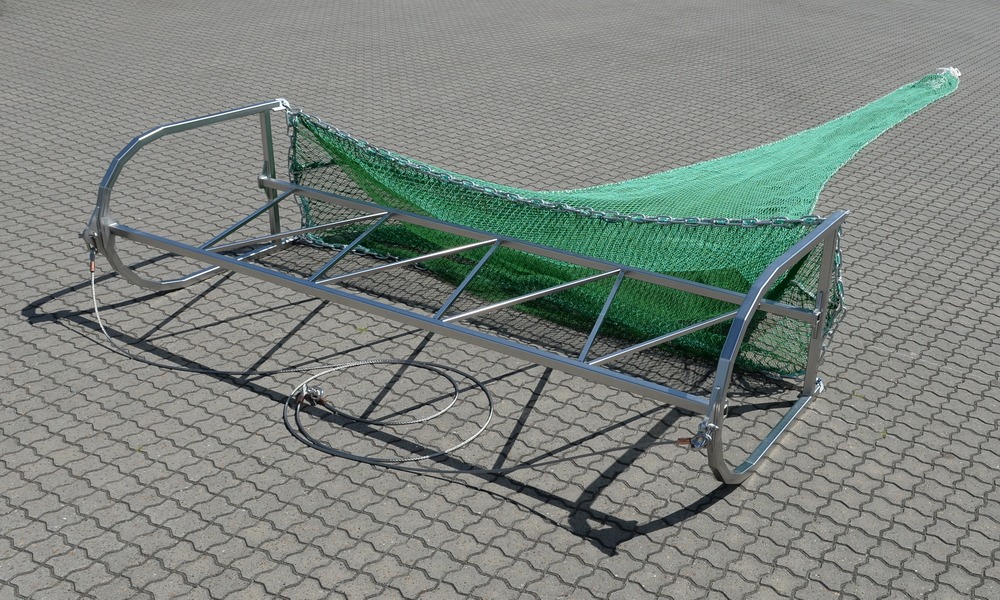

The KC Denmark Agassiz trawl 19.650 is a benthic sampling tool designed to collect organisms, especially invertebrates, from the ocean floor. The trawl is built from AISI 316 stainless steel tubing (40 x 40 x 4 mm) with a robust rectangular frame fitted with chains on all sides to maintain ground contact during towing. It is equipped with a 6 m long outer nylon net bag (mesh size 40 x 40 mm) closed by a loop, and an optional inner bag with 10 x 10 mm knotless mesh for finer sampling. The frame is electro-polished for marine corrosion resistance, though a painted version is available on request. The trawl is fitted with a 10 mm diameter steel towing wire and bridle.
Features
Highlighted features for Agassiz trawl, 300 x 80 cm
Specifications
Agassiz trawl, 300 x 80 cm Specifications
- Ordering No.
- 19.650
- Opening
- 300 x 80 cm
- Length of net bag
- 600 cm
- Material
- AISI 316 stainless steel, 40 x 40 x 4 mm tubes
- Finish
- Electro-polished (painted version available on request)

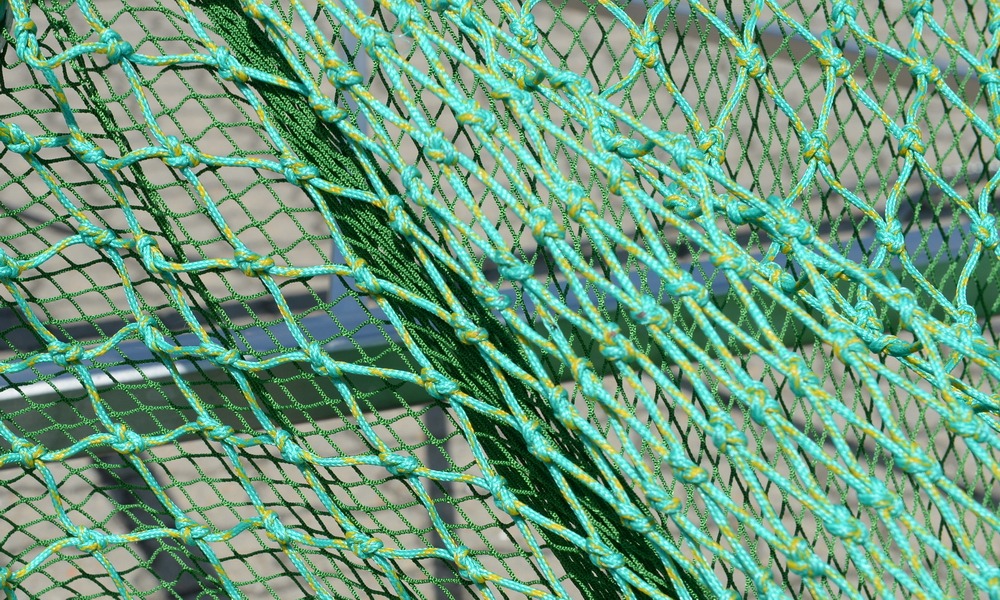

- Outer net

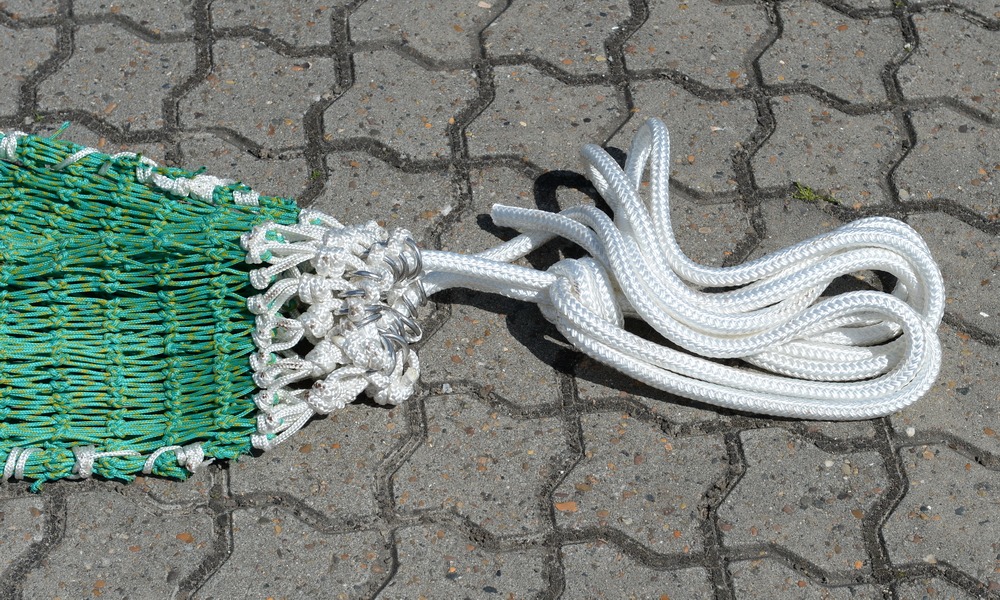

- 40 x 40 mm nylon, 3 mm thread, closed loop end
- Inner net (optional)
- 10 x 10 mm knotless mesh, closed loop end
- Steel wire diameter
- 10 mm
- Length including bridle
- approx. 11 m
- Weight
- 115 kg
Standard Delivery Content
The contents of a standard order of Agassiz trawl, 300 x 80 cm

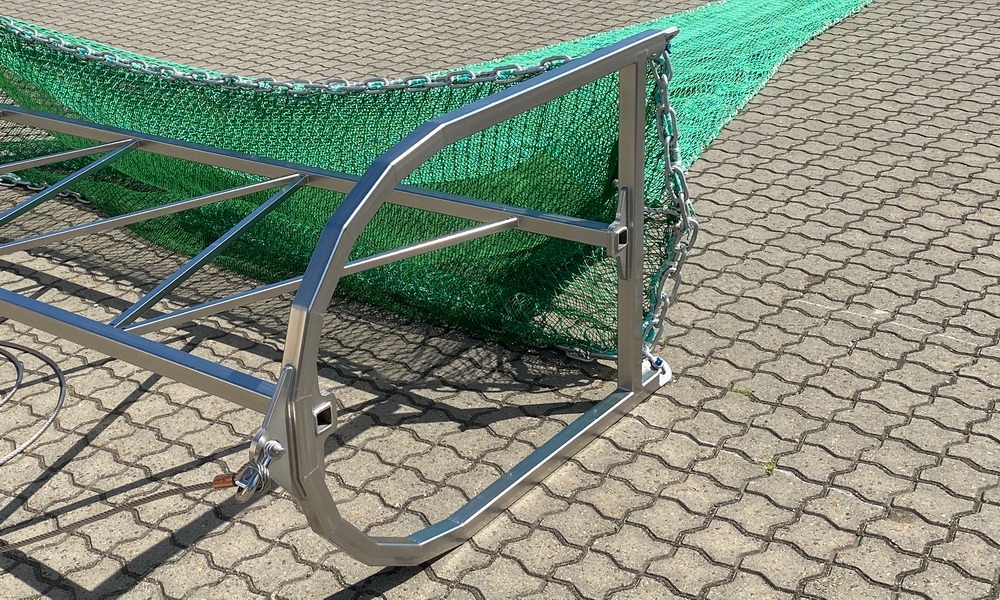

- AISI 316 stainless steel trawl frame with chains on all sides
- Outer nylon net bag, mesh size 40 x 40 mm, 3 mm thread, 6 m length
- Steel wire (Ø10 mm) with bridle
- Electro-polished surface finish
Application
Used for sampling benthic fauna and bottom-dwelling invertebrates on the sea floor in oceanographic and marine biological research.
Accessories
Accessories for Agassiz trawl, 300 x 80 cm
-
# 19.651
Inner net bag 10 x 10 mm
Optional fine-mesh knotless nylon inner bag for collecting smaller organisms.
