Epibenthic sledge, 80 x 30 cm
Epibenthic sledge made of AISI 316 stainless steel with 80 x 30 cm opening and mechanical flap system for sampling benthic and benthopelagic fauna.
Explore product sections
About

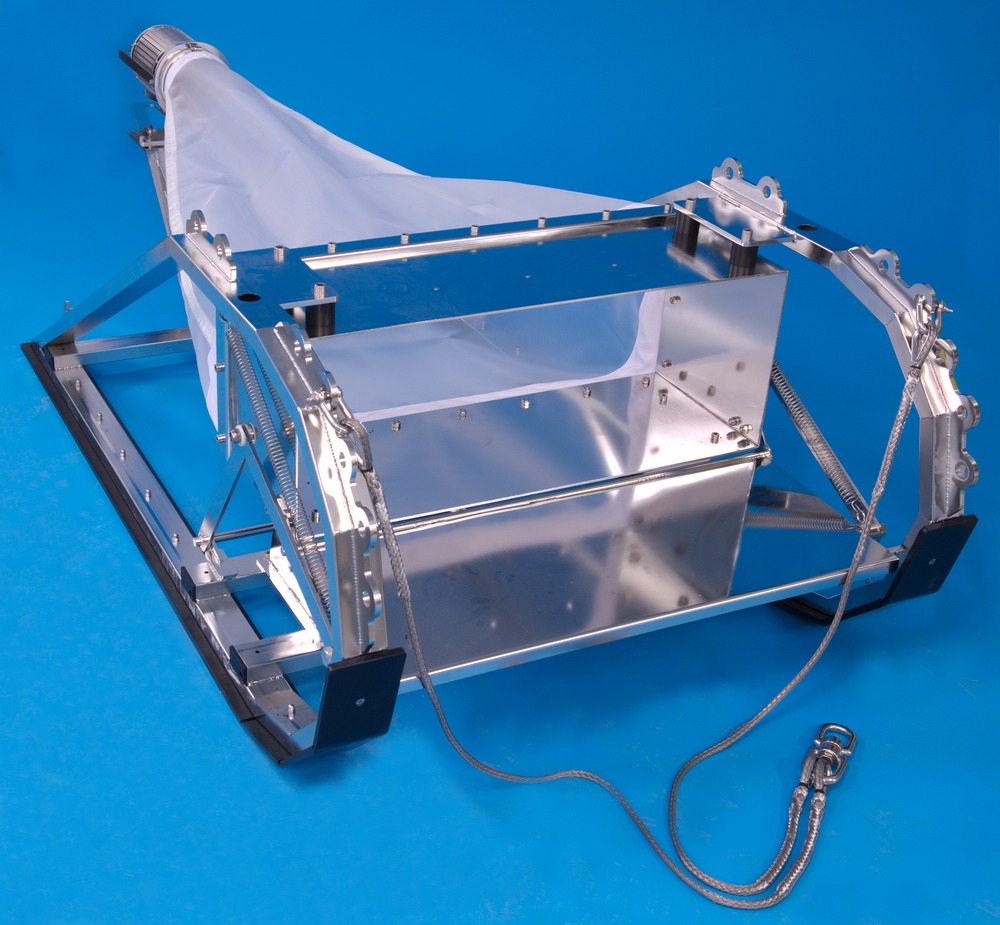

KC Denmark epibenthic sledge 19.750 is a system for sampling benthic and benthopelagic fauna. The sledge consists of a rectangular AISI 316 stainless steel frame with a mesh net attached. When towed along the seabed, its weight scrapes into the benthos, collecting organisms from the surface and upper sediment layer. A mechanically operated flap closes the net during deployment and opens when the sledge touches the bottom, allowing sampling of both seabed organisms and fauna in the water column just above the benthos (approx. 25 cm). The net bucket at the rear collects the sample, and the windows are protected by stainless steel mesh for durability.
Features
Highlighted features for Epibenthic sledge, 80 x 30 cm
Specifications
Epibenthic sledge, 80 x 30 cm Specifications
- Ordering No.
- 19.750
- Opening (L x H)
- 80 x 30 cm (2400 cm²)
- Dimensions (L x W x H)
- 170 x 110 x 60 cm
- Material
- AISI 316 stainless steel
- Net length
- 150 cm
- Net mesh size
- 500 µm
- Net bucket length
- 360 mm
- Net bucket diameter
- 160 mm
- Window mesh
- 500 µm stainless steel
Standard Delivery Content
The contents of a standard order of Epibenthic sledge, 80 x 30 cm
- Epibenthic sledge frame in AISI 316 stainless steel
- Mechanical flap closing system
- Nylon net, length 150 cm, mesh size 500 µm

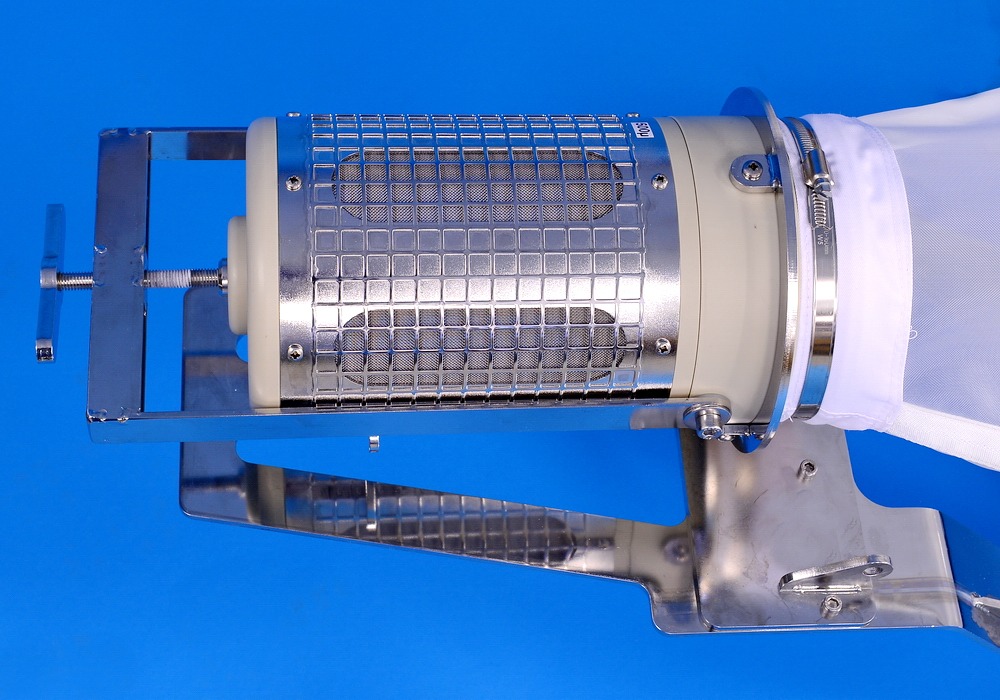

- Net bucket, length 360 mm, Ø160 mm, stainless steel mesh-protected windows
Application
Used for collection of benthic and benthopelagic fauna and small sediment material from the seabed, suitable for marine biological and sedimentological studies.
