Epibenthic sledge, 92 x 29 cm
Heavy-duty epibenthic sledge in electro-polished AISI 316 stainless steel with 920 x 290 mm opening and stabilizing fin, for sampling benthic and benthopelagic fauna at any depth.
Explore product sections
About

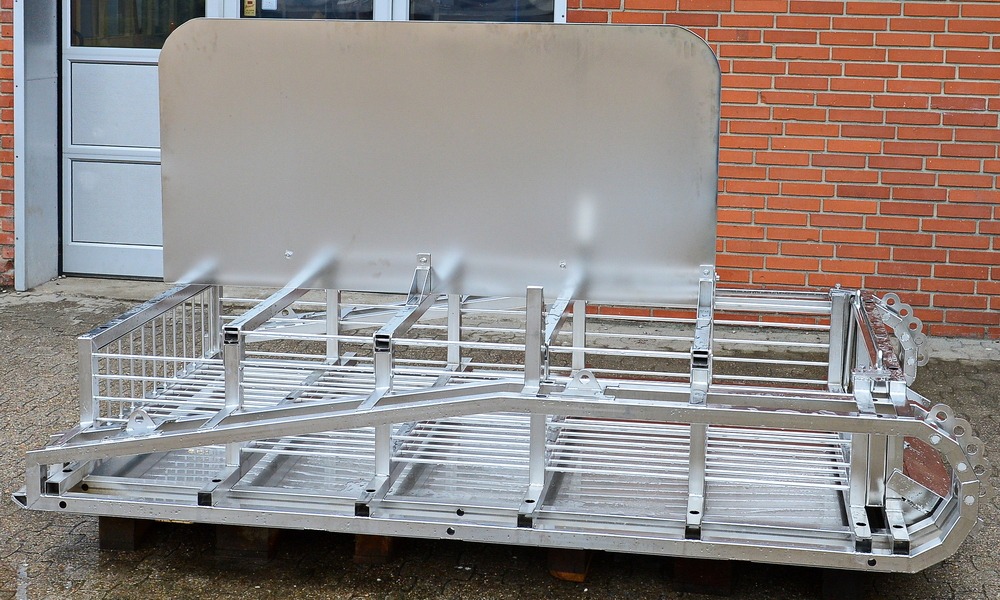

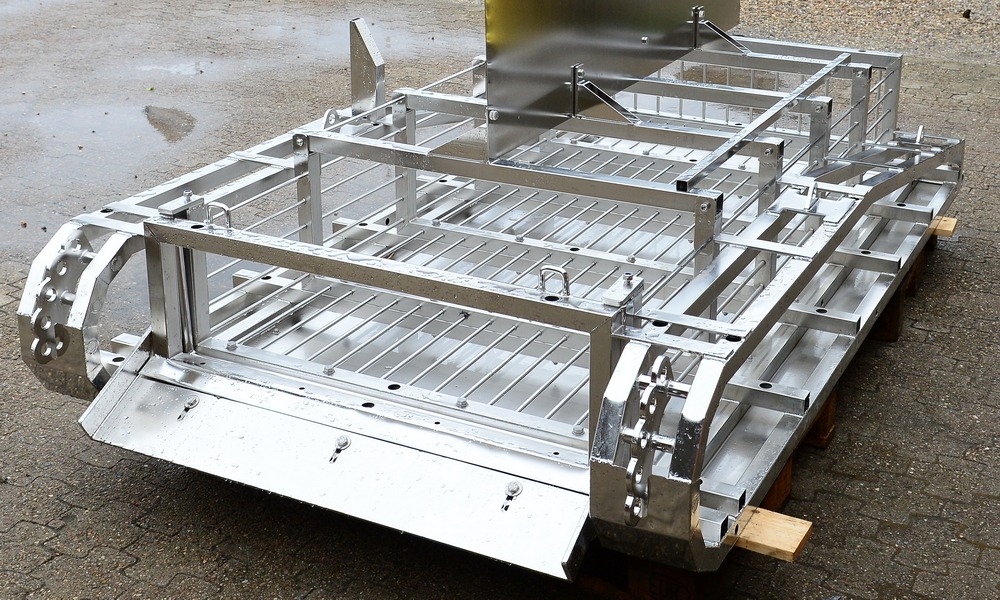

KC Denmark epibenthic sledge 19.770 is a rigid and robust seabed sampling system for collecting benthic and benthopelagic organisms as well as small stones and surface sediment. It consists of a rectangular stainless steel frame with two parallel rails and a large stabilizing fin that maintains steady orientation during tow operations. The sledge scrapes into the seabed, collecting organisms on or near the surface. The upper section is hinged to allow easy access for inspection and cleaning. Built in AISI 316 stainless steel and electro-polished for corrosion resistance, the sledge is suitable for marine deployments at any depth.
Features
Highlighted features for Epibenthic sledge, 92 x 29 cm
Specifications
Epibenthic sledge, 92 x 29 cm Specifications
- Ordering No.
- 19.770
- Opening
- 920 x 290 mm (2668 cm²)
- Material
- AISI 316 stainless steel
- Finish
- Electro-polished
- Dimensions (no fin)
- 246 x 140 x 64 cm (L x W x H)
- Dimensions (incl. fin)
- 246 x 140 x 128 cm (L x W x H)
- Weight
- 270 kg including fin
Standard Delivery Content
The contents of a standard order of Epibenthic sledge, 92 x 29 cm
- Rectangular AISI 316 stainless steel frame with two bottom rails
- Large stabilizing fin for directional stability
- Hinged upper section for easy access and cleaning
- Electro-polished stainless steel finish
Application
Used for sampling small stones, benthic and benthopelagic fauna, and sediment from the seabed in marine environments. Applicable at any depth due to its robust and stable design.
