Ockelman sledge, 30 x 15 cm
Ockelman sledge made of AISI 316 stainless steel with 30 x 15 cm opening and adjustable toothed shovel plate, designed for benthic sampling of biological and mineral material.
Explore product sections
About

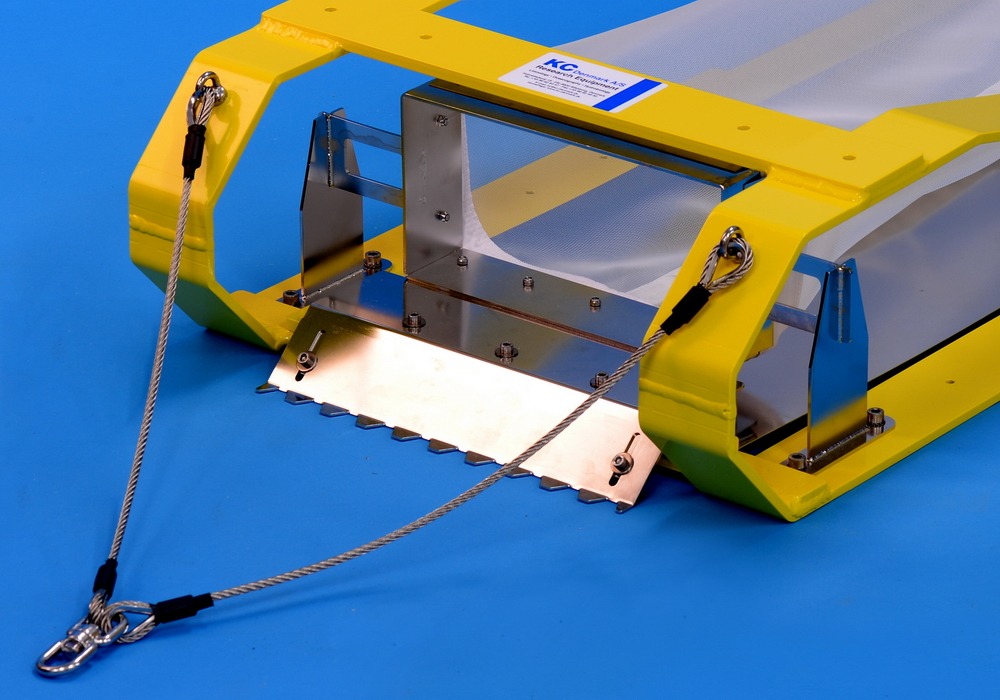

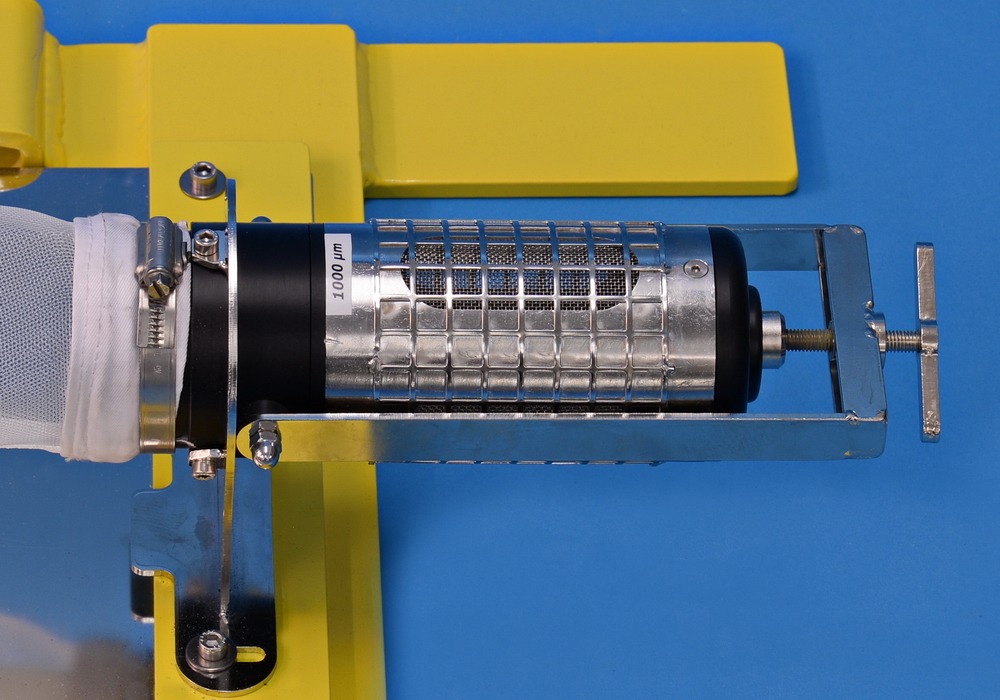

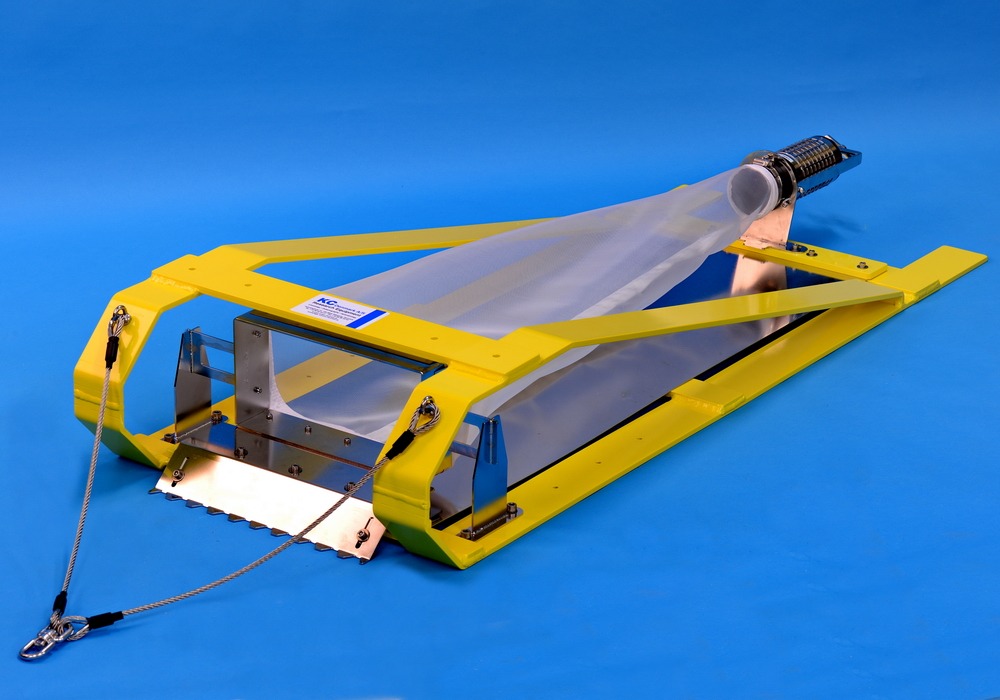

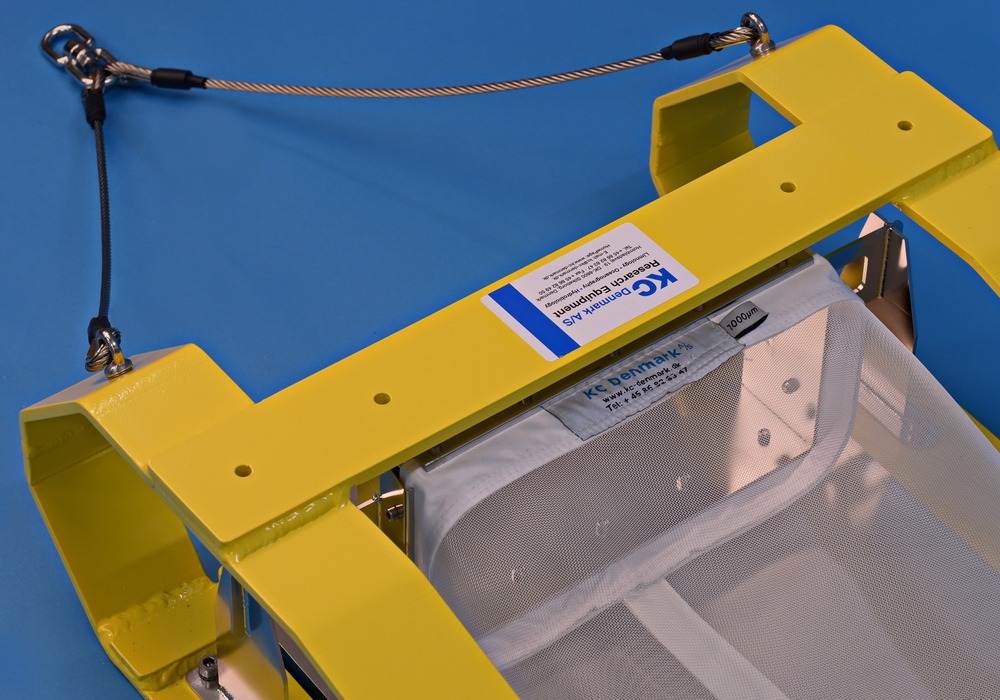

The KC Denmark Ockelman sledge is a stainless steel seabed dredge designed for collecting samples of benthic organisms and sediment. It features a 30 x 15 cm opening positioned 3 cm above the seabed to minimize disturbance and maximize sample collection. The sledge includes an adjustable shovel plate with teeth, a 100 cm long nylon net bag (1000 µm mesh size), and a protective steel plate to shield the net. The solid net bag fastening allows easy replacement. The unit also includes a net bucket made from POM and AISI 316 stainless steel, featuring three offset windows covered by nets according to mesh size, with outer 10 mm steel mesh protection.
Features
Highlighted features for Ockelman sledge, 30 x 15 cm
Specifications
Ockelman sledge, 30 x 15 cm Specifications
- Ordering No.
- 19.680
- Material
- AISI 316 stainless steel
- Opening (L x H)
- 30 x 15 cm
- Net bag length
- 100 cm
- Net mesh size
- 1000 µm
- Protection plate
- Steel
- Dimensions (L x W x H)
- 154 x 57 x 25 cm
- Weight
- 25 kg
- Net bucket material
- POM and AISI 316 stainless steel
- Net bucket windows
- 3 pcs, protected by 10 mm mesh stainless steel net
Standard Delivery Content
The contents of a standard order of Ockelman sledge, 30 x 15 cm
- Ockelman sledge frame made of AISI 316 stainless steel
- Adjustable toothed shovel plate
- Net bag, 1000 µm mesh size, 100 cm length
- Protective steel plate for net bag
- Net bucket with 3 offset windows (POM and AISI 316 stainless steel)
Application
Used for sampling benthic organisms, plankton, and sediment material from the sea or lake bottom. Suitable for biological and mineralogical studies requiring intact seabed samples.
