Rectangular dredge, 40 x 20 cm
Rectangular dredge in AISI 316 stainless steel for collecting biological and mineralogical samples, with 40 x 20 cm opening and interchangeable nylon or steel net bag options.
Explore product sections
About
KC Denmark rectangular dredge model 19.600 is made of 3 mm AISI 316 stainless steel. It features two toothed side plates (52 teeth total) for cutting and guiding samples, and two Ø10 mm guiding arms to protect the mounted net bag. The standard nylon net bag (length 50 cm, mesh 500 µm) can be replaced with a reinforced steel mesh model (19.605) for coarser materials. A smaller version (19.580) with 20 x 10 cm opening is also available. Designed for efficient sampling of seabed material, shells, or vegetation in marine and freshwater environments.
Features
Highlighted features for Rectangular dredge, 40 x 20 cm
Specifications
Rectangular dredge, 40 x 20 cm Specifications
- Ordering No.
- 19.600
- Material
- AISI 316 stainless steel, 3 mm
- Opening
- 40 x 20 cm (L x H)
- Net length
- 50 cm
- Net mesh size (standard)
- 500 µm
- Teeth
- 52 pcs
- Guiding arms
- Ø10 mm stainless steel
- Model 19.605 mesh size
- 2000 µm (steel net, 66 windows, filtration area approx. 2100 cm²)
Standard Delivery Content
The contents of a standard order of Rectangular dredge, 40 x 20 cm
- Rectangular dredge frame 40 x 20 cm (L x H)
- AISI 316 stainless steel construction, 3 mm plate
- Two guiding arms Ø10 mm stainless steel
- Standard nylon net bag 50 cm length, mesh size 500 µm
Application
Used for collection of biological and/or mineralogical material such as plants, algae, or sediment from sea or lake bottoms.
Accessories
Accessories for Rectangular dredge, 40 x 20 cm
-

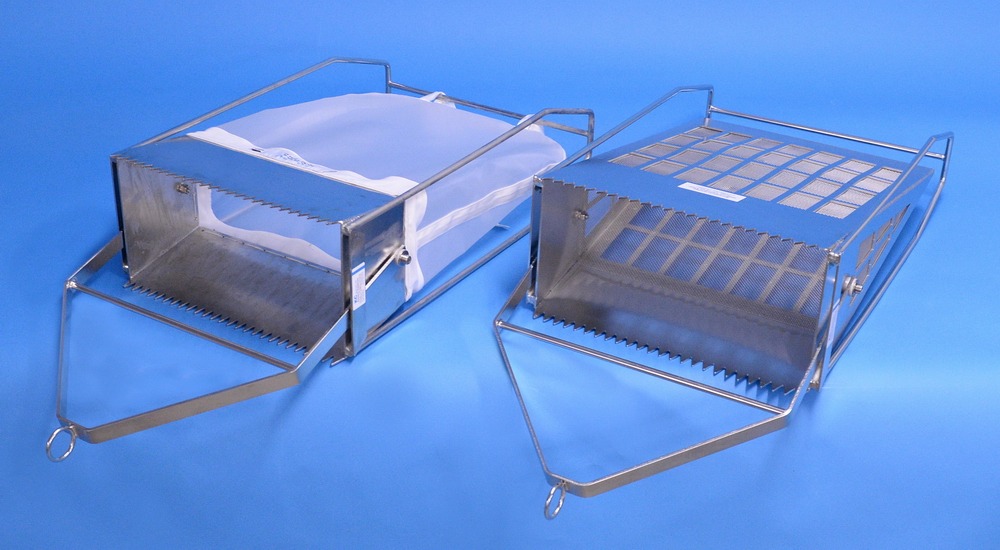

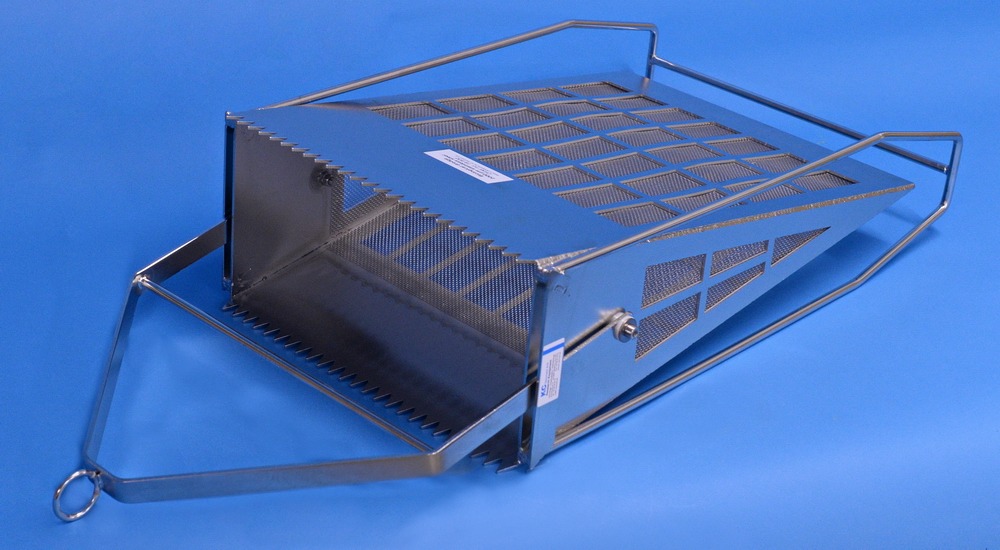

# 19.605
Rectangular dredge with steel net
Version of 19.600 with reinforced steel mesh (2000 µm), 66 windows, filtration area approx. 2100 cm².
-

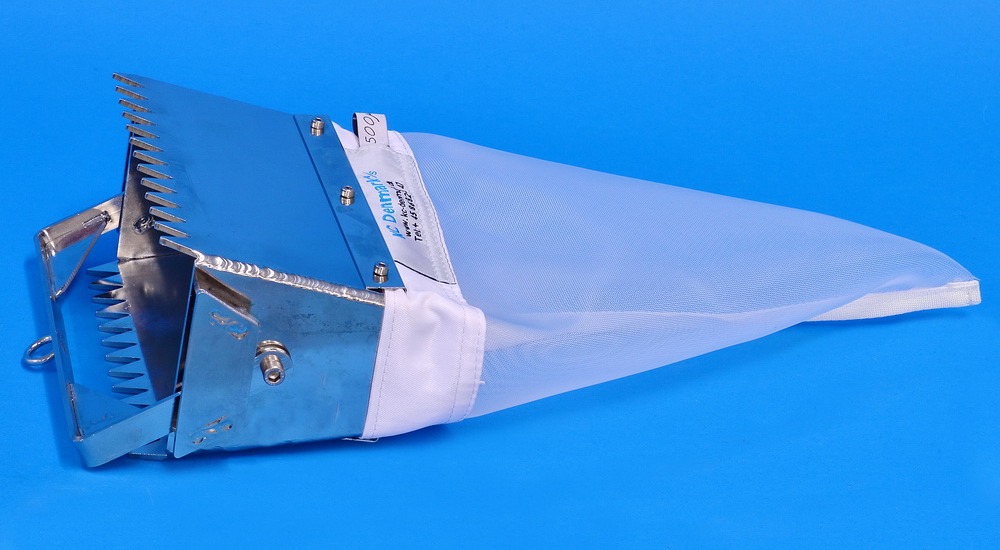

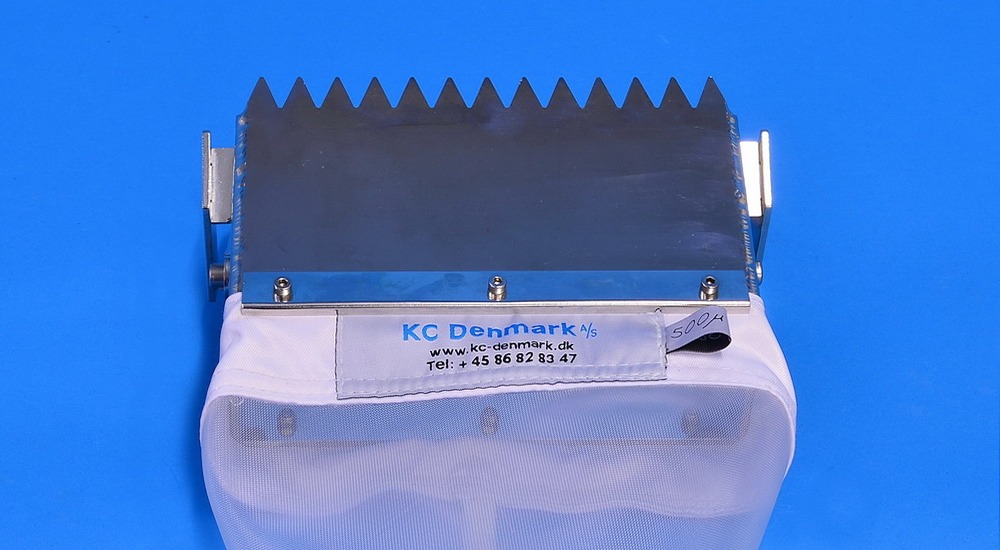

# 19.580
Small rectangular dredge
Compact 20 x 10 cm version with 500 µm nylon net bag, optional mesh sizes on request.
