Triangular dredge, 80 x 80 x 80 cm
Triangular dredge for collecting bottom samples, available in models with or without rubber mat.
Explore product sections
About

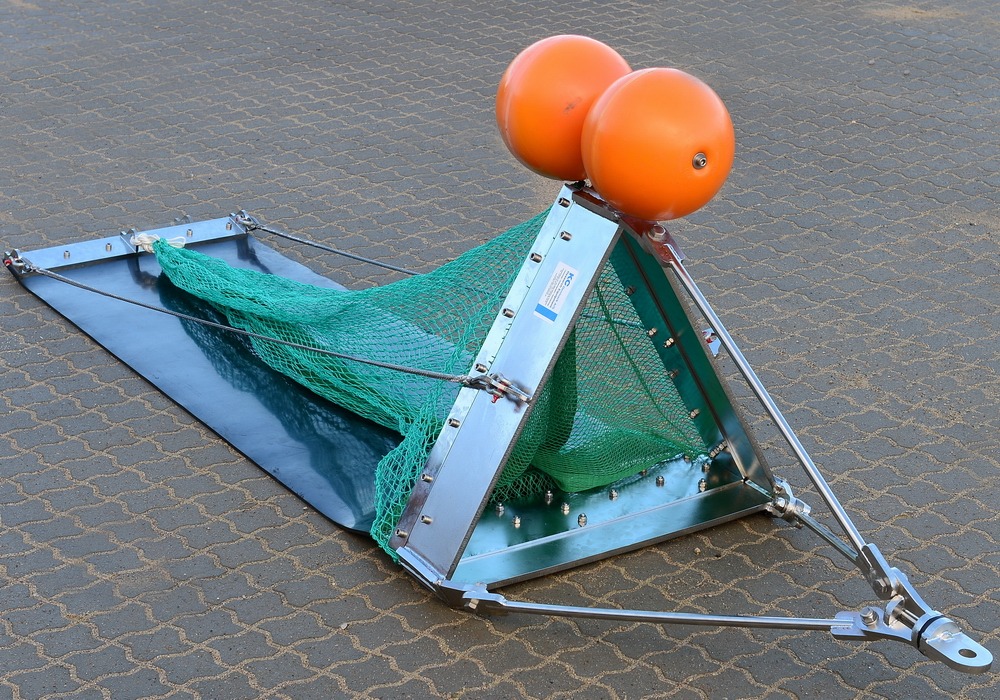

The triangular dredge, model 19.550, is constructed from AISI 316 stainless steel and designed for benthic sampling. It features a robust triangular frame and interchangeable net bags for collecting sediment and biological samples. Model 19.551 includes a heavy-duty rubber mat but is not recommended for prolonged use due to wear issues observed during the Galathea 3 expedition.
Features
Highlighted features for Triangular dredge, 80 x 80 x 80 cm
Specifications
Triangular dredge, 80 x 80 x 80 cm Specifications
- Outer dimension
- 80 x 80 x 80 cm
- Material
- AISI 316 stainless steel, thickness 15 mm
- Length
- 350 cm
- Height without buoys
- 77 cm
- Height with buoys
- 102 cm
- Outer net bag
- Length 200 cm, nylon, mesh size 30 mm
- Inner net bag
- Length 200 cm, knotless, mesh size 10 mm
- Rubber mat (model 19.551 only)
- Length 220 cm, thickness 10 mm, width 82/60 cm
- Weight (model 19.550)
- 165 kg
- Weight (model 19.551)
- 180 kg
Standard Delivery Content
The contents of a standard order of Triangular dredge, 80 x 80 x 80 cm
- Triangular dredge frame
- Outer net bag, nylon, 3 mm mesh size, length 200 cm
- Inner net bag, knotless, 10 mm mesh size, length 200 cm
- 2 buoys
Application

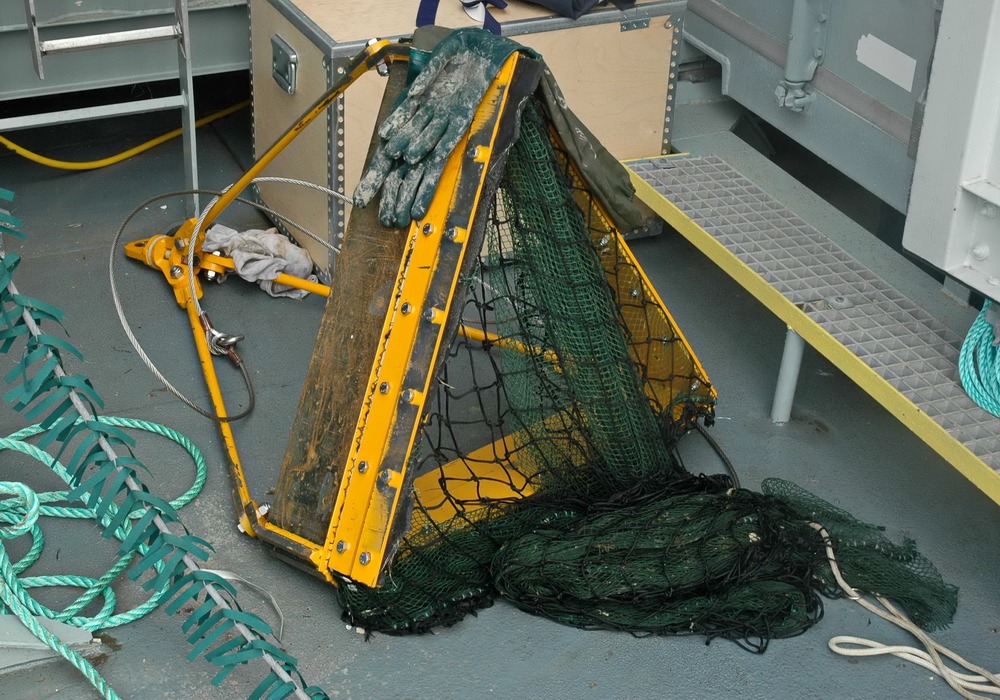

Used in marine expeditions and oceanographic sampling to collect sediment and benthic fauna. Recommended to be used without the rubber plate for optimal durability and efficiency.
