Manta trawl net, 60 x 25 cm
Manta trawl net for sampling the ocean surface, equipped with stainless steel frame, adjustable wings, and fine-mesh net for microplastic and plankton collection.
Explore product sections
About

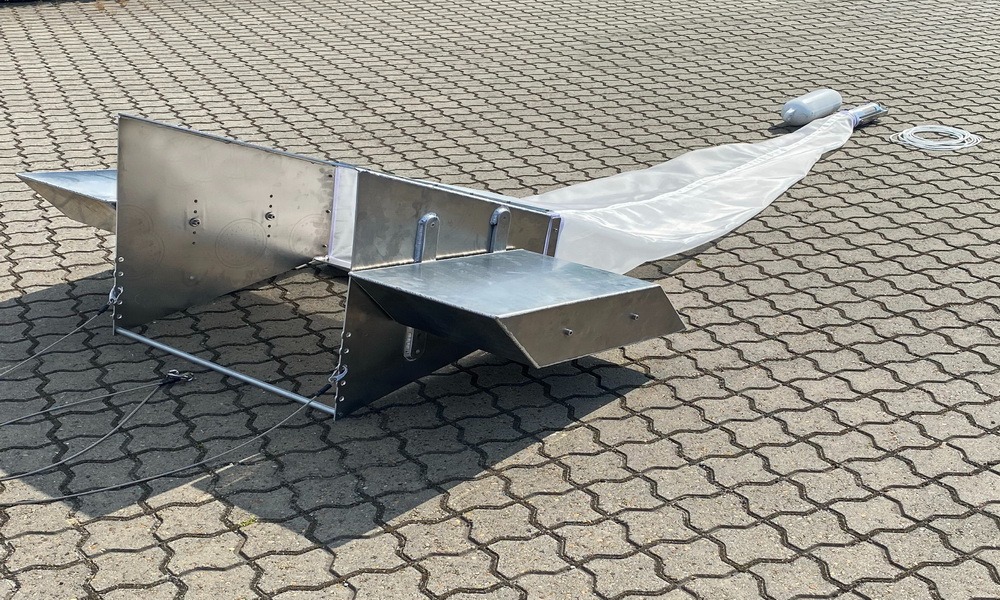

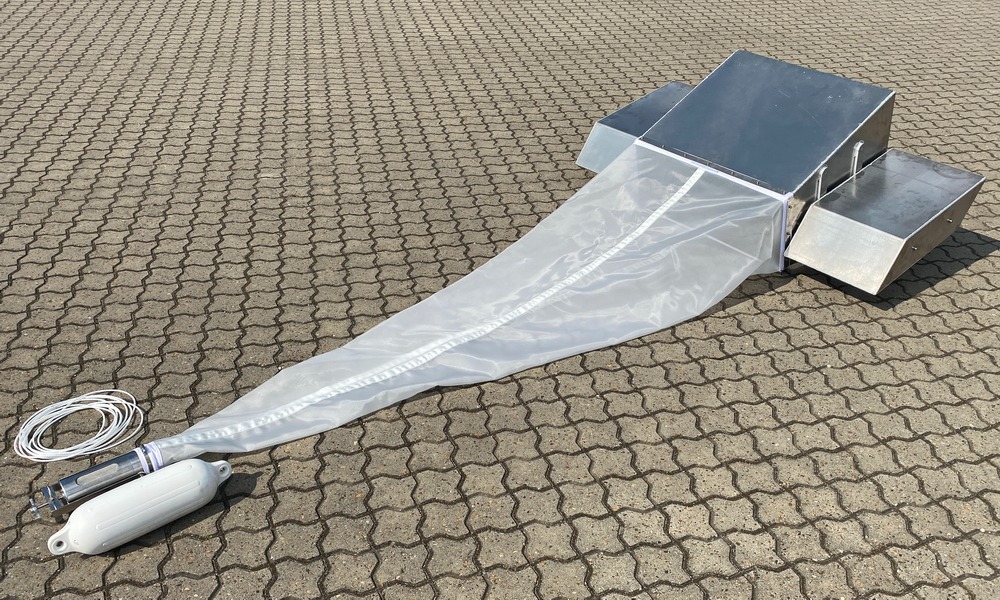

KC Denmark Manta trawl net 23.490 is designed for surface sampling of microplastic and biological material. The system features an AISI 316 stainless steel frame and a thin-mesh nylon net. A pair of adjustable wings and bridle assembly allow the net to maintain optimal height in the upper water column. The trawl includes a stainless steel sample cylinder with five mesh-covered windows, ensuring efficient water drainage while maintaining sample integrity. The net operates horizontally with integrated buoyancy elements for stability during towing.
Features
Highlighted features for Manta trawl net, 60 x 25 cm
Specifications
Manta trawl net, 60 x 25 cm Specifications
- Ordering No.
- 23.490
- Opening
- 60 x 25 cm
- Material
- AISI 316 stainless steel frame
- Standard net mesh size
- 300 µm (other sizes on request)

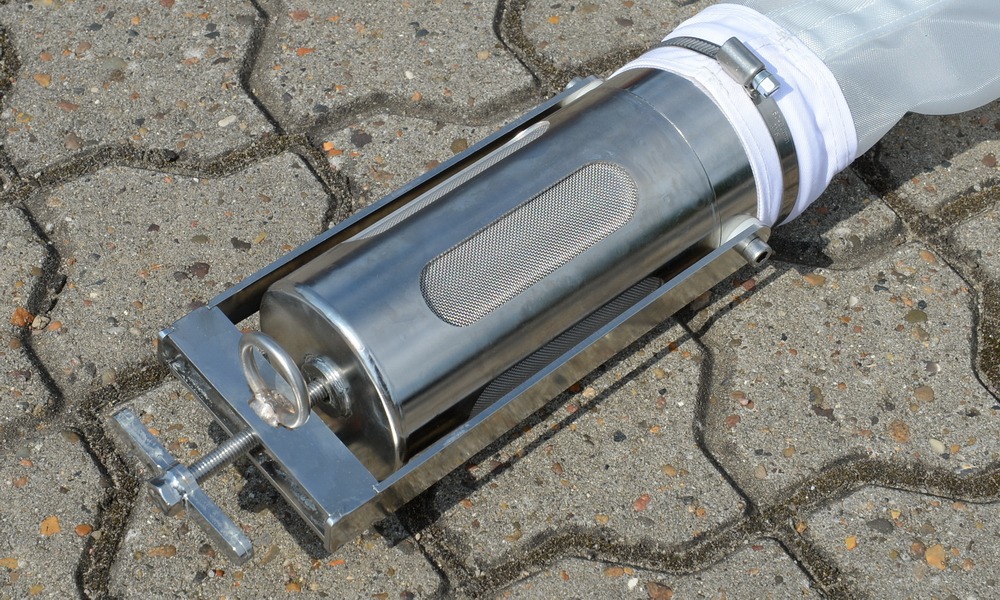

- Sample cylinder
- 5 windows covered with steel mesh equal to main net
- Buoyancy
- Integrated for maintaining horizontal operation
- Adjustability
- Wings and bridle allow various sampling heights
Standard Delivery Content
The contents of a standard order of Manta trawl net, 60 x 25 cm
- AISI 316 stainless steel manta frame
- Adjustable wings and bridle for towing height control
- Nylon net, standard mesh size 300 µm
- Sample cylinder in stainless steel with 5 mesh-covered windows
- Integrated buoyancy system for stable horizontal position
Application
Used for collecting microplastic particles, plankton, and small floating organisms from the ocean surface. The system allows for sampling at adjustable depths near the air-water interface.
