Manta trawl net, 70 x 30 cm
Manta trawl net in stainless steel with 70 x 30 cm opening, designed for surface sampling of microplastics and biological material with adjustable towing height and buoyant stability.
Explore product sections
About

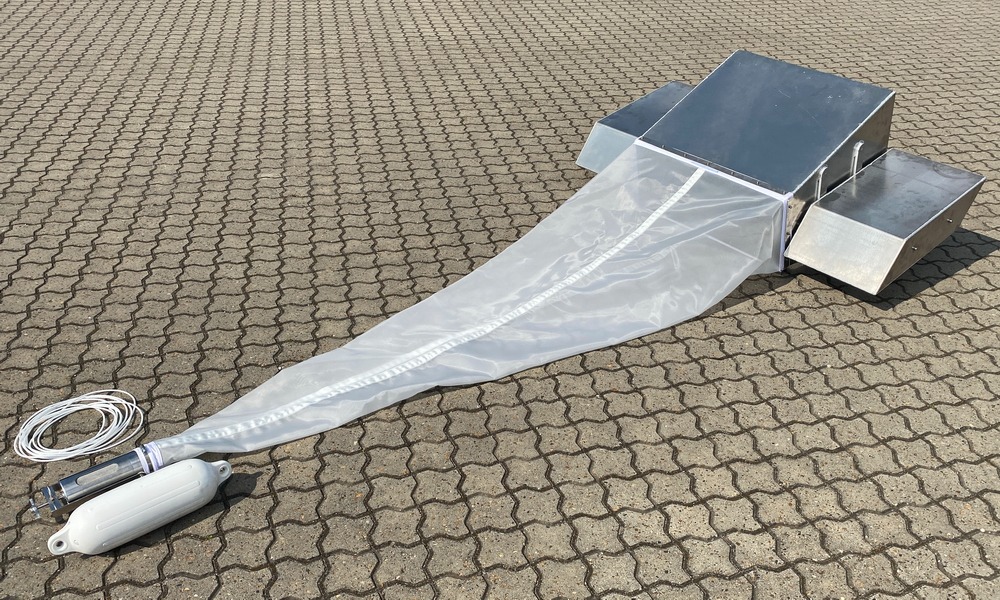

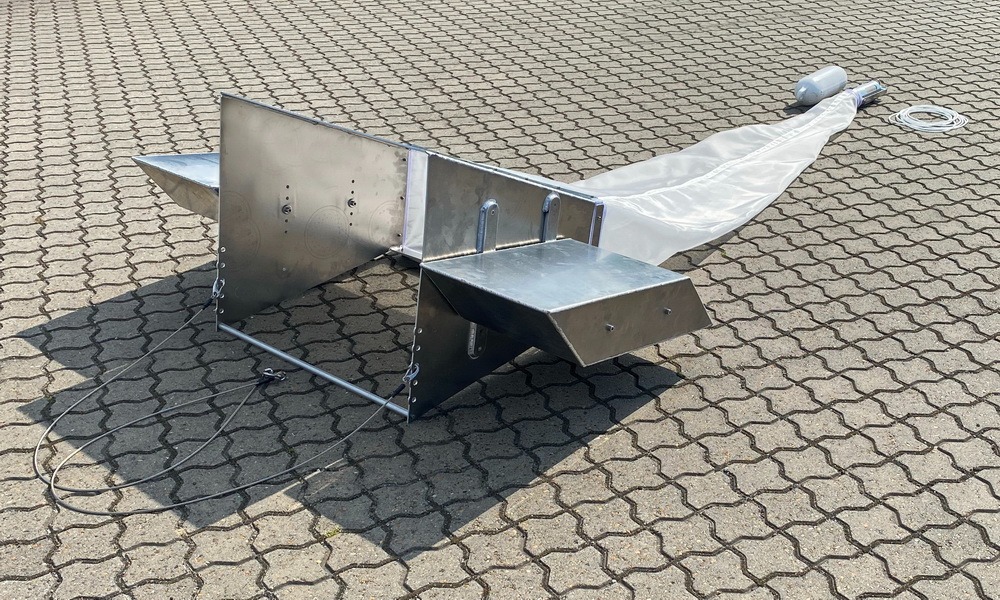

KC Denmark Manta trawl net model 23.500 is a surface-sampling net system designed for collecting microplastics and other materials from the ocean surface. The trawl consists of an AISI 316 stainless steel frame with a thin-mesh nylon net (standard 300 µm) and a pair of adjustable wings bolted onto an inner frame. The wings and towing bridle can be adjusted to control the sampling height, ensuring efficient collection from the uppermost layer of the water column. The rear sample cylinder is made from stainless steel and fitted with five mesh-covered windows of the same mesh size as the main net. Small buoyancy elements keep the system horizontally balanced during towing.
Features
Highlighted features for Manta trawl net, 70 x 30 cm
Specifications
Manta trawl net, 70 x 30 cm Specifications
- Ordering No.
- 23.500
- Opening
- 70 x 30 cm
- Material
- AISI 316 stainless steel
- Standard net mesh size
- 300 µm

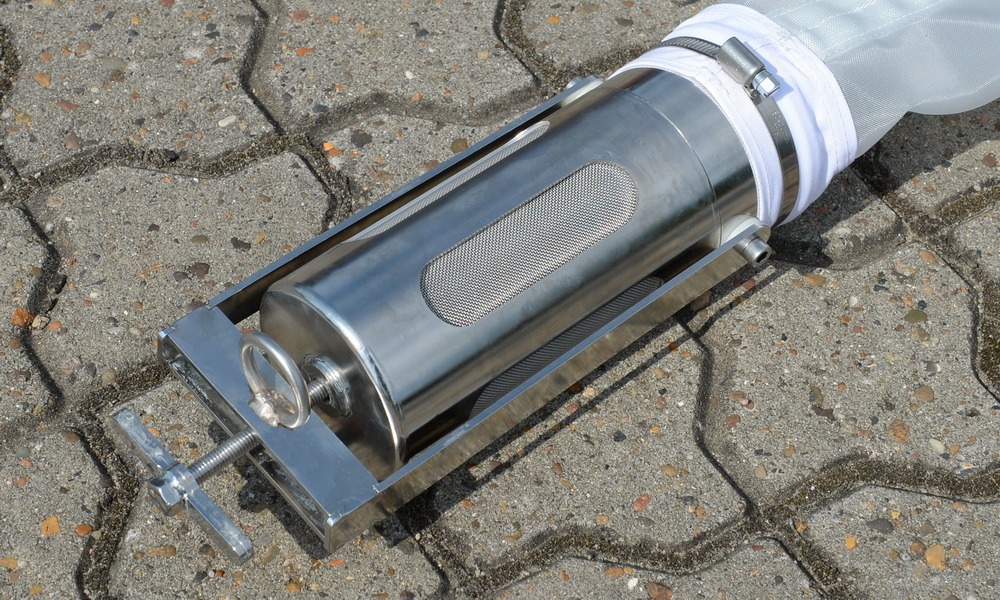

- Sample cylinder
- 5 windows covered with steel mesh equal to main net
- Buoyancy
- Integrated for horizontal stability
- Adjustability
- Wings and bridle allow various sampling heights
Standard Delivery Content
The contents of a standard order of Manta trawl net, 70 x 30 cm
- AISI 316 stainless steel manta trawl frame
- Adjustable wings and bridle system for sampling height control
- Nylon net, standard mesh size 300 µm (other sizes on request)
- Sample cylinder with 5 stainless steel mesh-covered windows
- Integrated buoyancy system for horizontal towing
Application
Used for surface sampling of microplastics, plankton, and small floating debris from the upper water column, particularly at the air-water interface.
