Plastic particle pump
Micro plastic particle pump designed for precise and programmable water sampling, capable of filtering particles at multiple mesh sizes with magnetic/inductive flow measurement.
Explore product sections
About

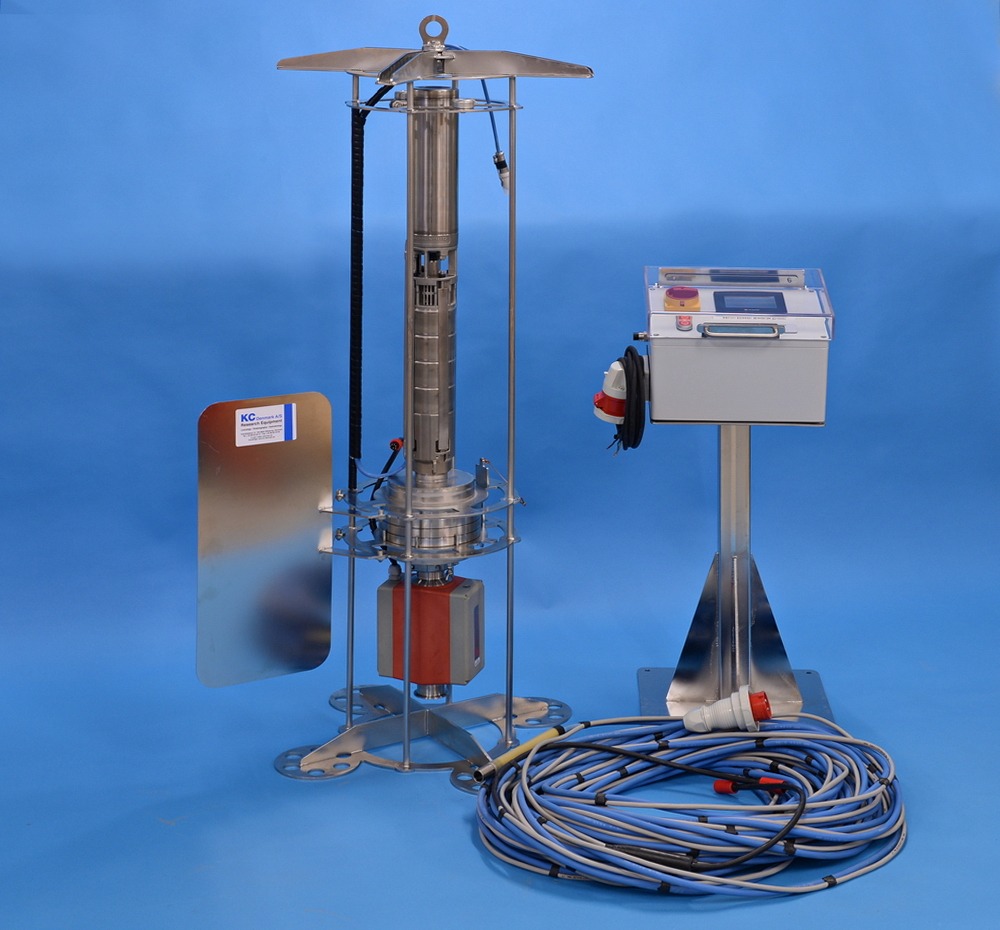

KC Denmark’s Micro Plastic Particle Pump (model 23.580) was originally developed under the EU CleanSea project for measuring plastic particles in marine and freshwater environments with high precision. The pump enables real-time monitoring of pumped water volume via an integrated magnetic/inductive flow meter with an accuracy of approximately 0.035%. It can operate continuously or be programmed for a specific water volume. During one deployment, the sampler can operate with up to four different mesh sizes simultaneously. The system supports a flexible range of filter sizes from 1000 µm down to 100 µm, with smaller sizes (as low as 20 µm) available on request. Filter plates can easily be removed to allow unrestricted pumping. Unlike traditional Manta trawls, the pump’s onboard computer allows programming of exact sampling volumes, providing highly reproducible data. Flow measurement occurs downstream of the filter, preventing error from filter clogging and ensuring accurate data collection.
Features
Highlighted features for Plastic particle pump
Specifications
Plastic particle pump Specifications
- Ordering No.
- 23.580
- Filter mesh range
- 1000 µm to 100 µm (optional 20 µm on request)
- Flow measurement
- Magnetic/inductive, accuracy ±0.035%
- Operational mode
- Continuous or programmable volume sampling
- Material
- AISI 316 stainless steel housing
- Cable length (standard)
- 20 m
- Power supply
- 24 V DC
- Max pressure
- 10 bar
- Weight (approx.)
- 26 kg
Standard Delivery Content
The contents of a standard order of Plastic particle pump
- Micro plastic particle pump unit

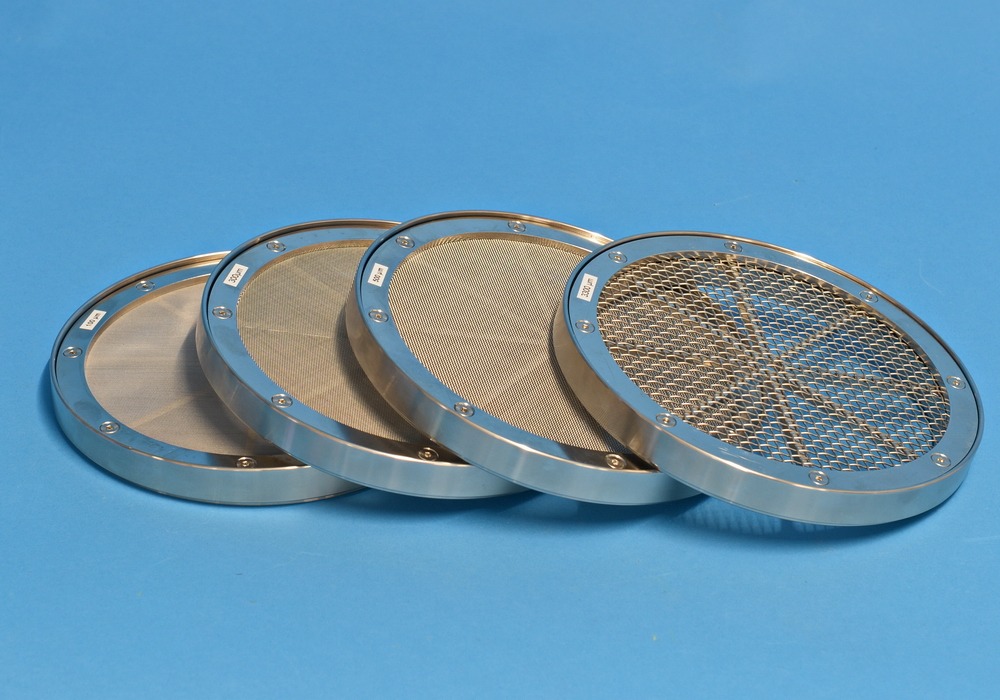

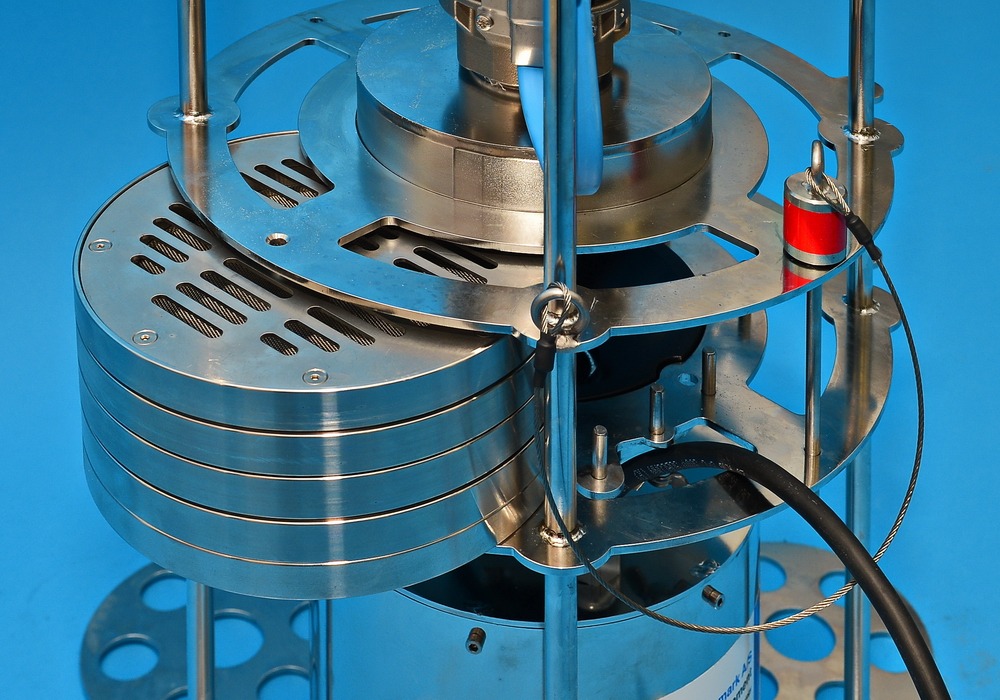

- 4 filter holders for mesh sizes from 1000 µm to 100 µm
- Magnetic/inductive flow meter with accuracy ±0.035%

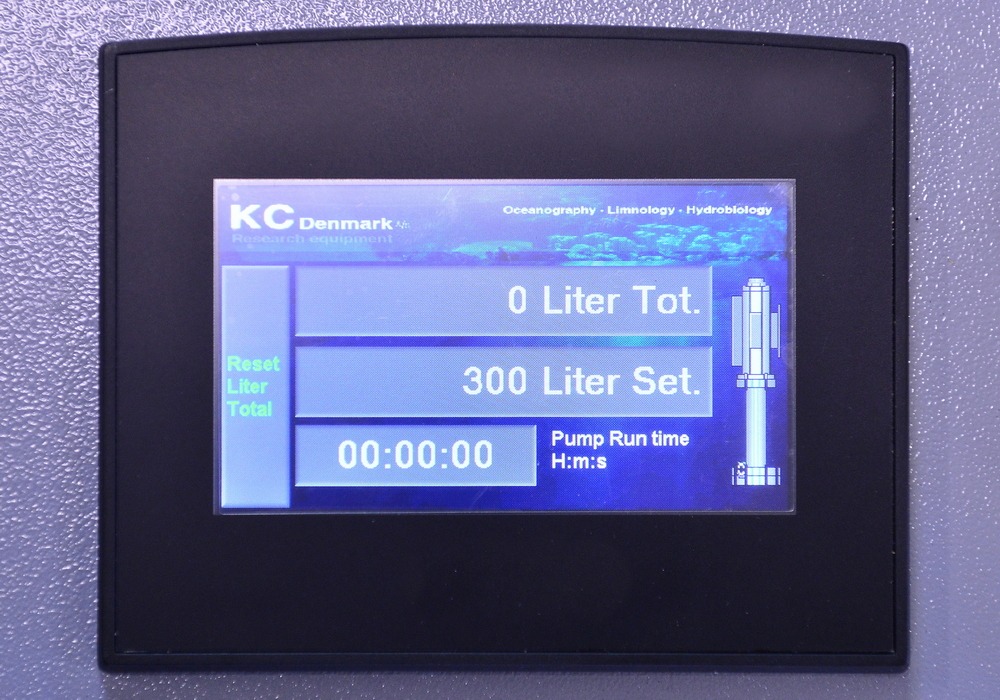

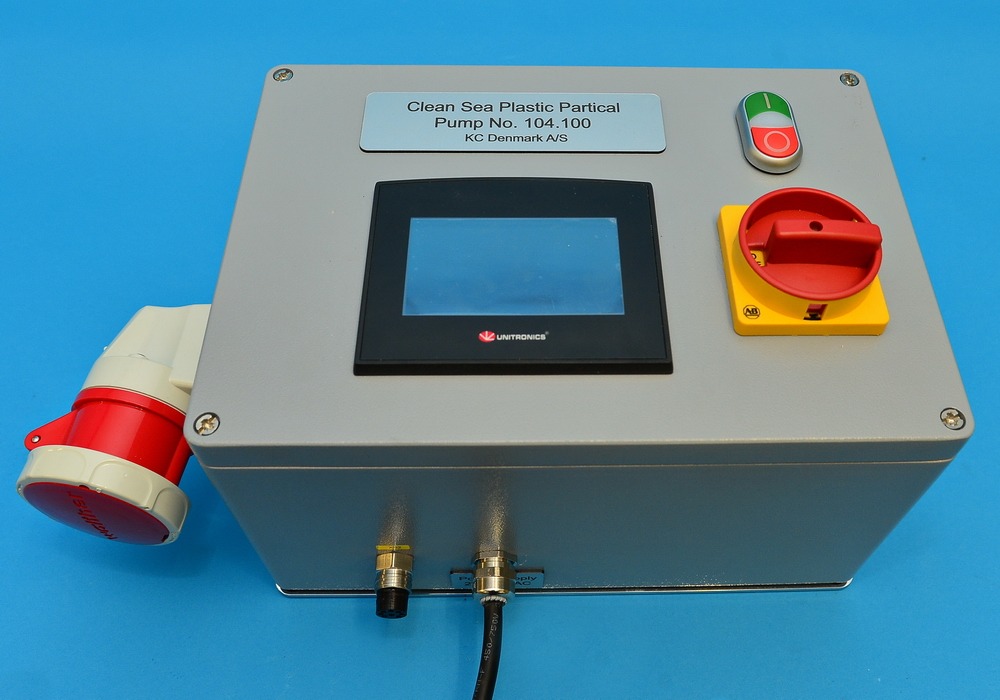

- Onboard computer with live volume readout and programmable volume control

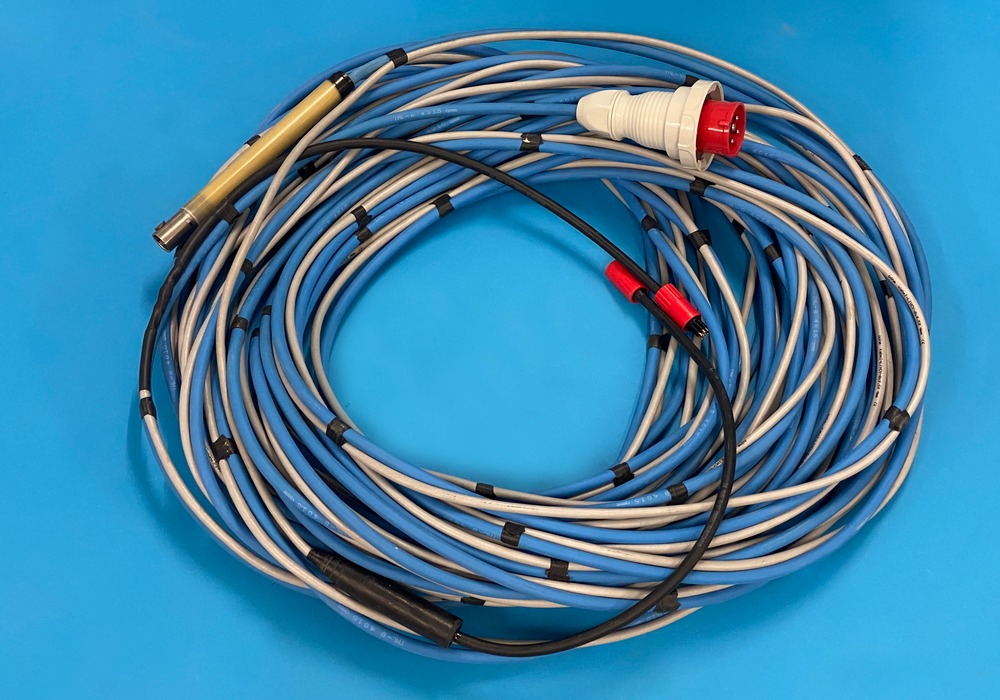

- 20 m data and power supply cable (extensions available)
Application
Used for collection and quantification of microplastic particles in oceanic and freshwater environments. Suitable for environmental monitoring, research, and water quality assessments requiring precise volume-controlled sampling.
Accessories
Accessories for Plastic particle pump
-
# __zz.mis-3f8a0b12
Extension cable for power and data
Optional longer cable for deep or extended deployment.
-
# __zz.mis-38ad9b44
Additional filter sets
Optional filters in mesh sizes from 20 µm to 1000 µm.
