Portable pump for micro plastic (7m max)
Portable surface and shallow-water pump for collecting microplastic particles, featuring multiple filter stages, digital flow measurement, and AC power options.
Explore product sections
About

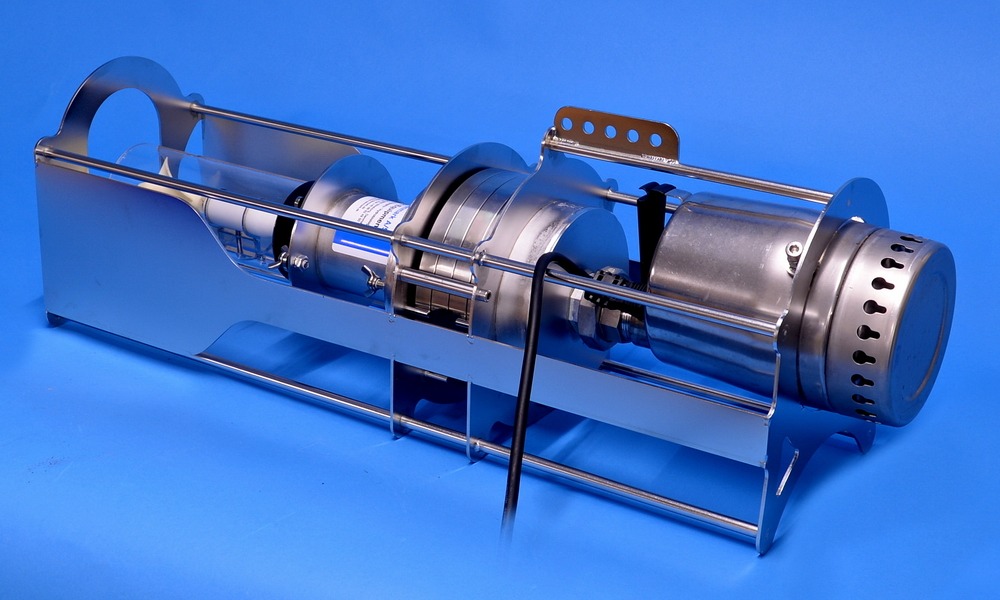

The KC Denmark portable micro plastic pump (models 23.565 and 23.566) is a compact, lightweight system designed for collecting microplastic particles from the surface or shallow waters up to 7 meters deep. It allows simultaneous sampling through up to four different mesh filters, providing precise and repeatable volume measurements through an integrated digital flow meter. The flexible filter design supports mesh sizes ranging from 1000 µm down to 100 µm, with optional finer meshes (as low as 20 µm) available upon request. The system ensures highly accurate volume control, as the flow meter measures water after it has passed through the filters, preventing errors caused by filter clogging. The pump operates on 230 V AC (model 23.565) or 115 V AC (model 23.566) and is particularly suitable for lakes, coastal zones, and shallow marine environments.
Features
Highlighted features for Portable pump for micro plastic (7m max)
Specifications
Portable pump for micro plastic (7m max) Specifications
- Ordering No.
- 23.565 (230 V AC) / 23.566 (115 V AC)
- Maximum operating depth
- 7 m
- Filter mesh range
- 1000 µm to 100 µm (optional down to 20 µm)

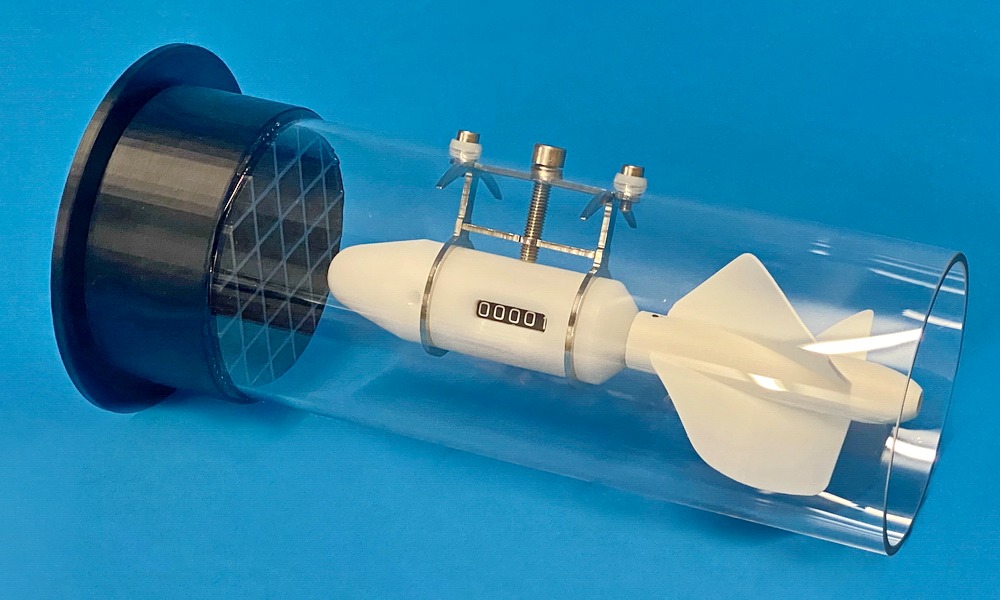

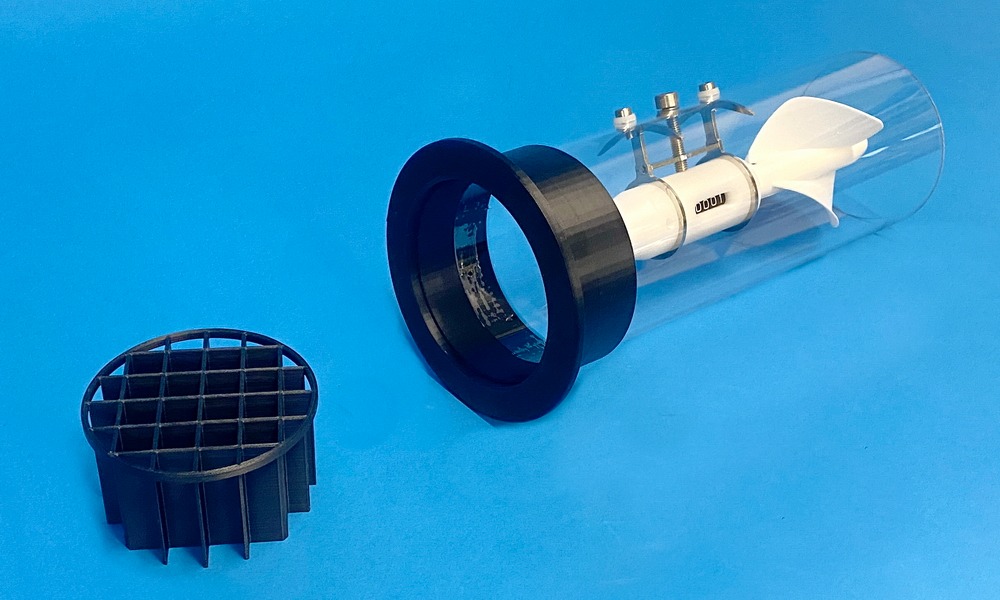

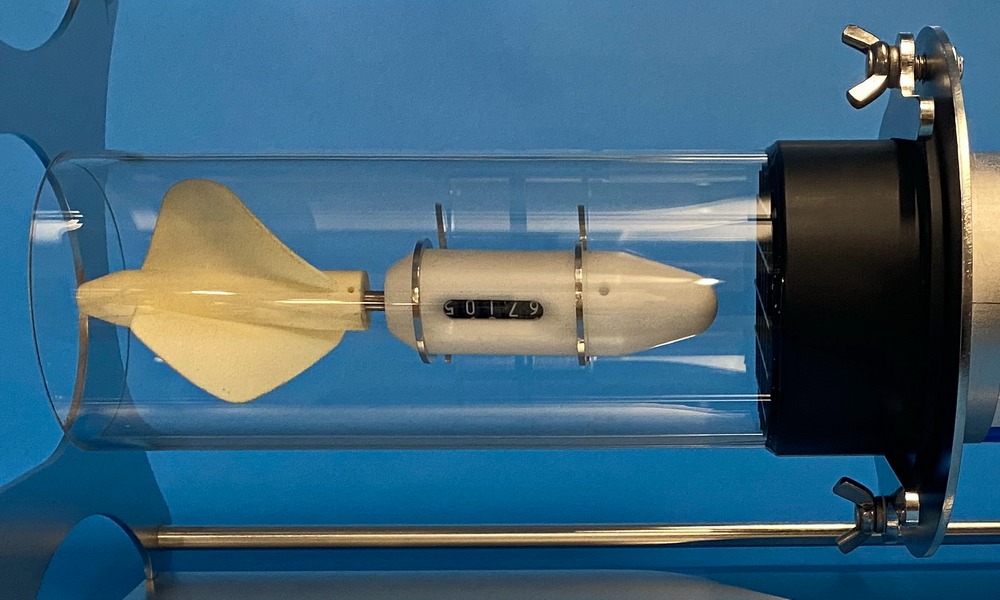

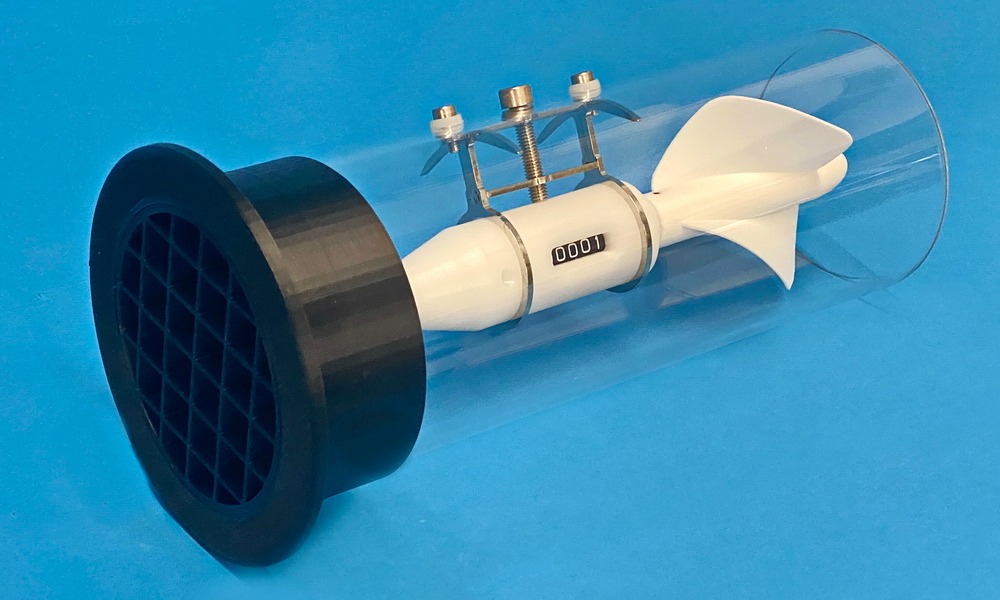

- Flow measurement
- Digital flow meter, post-filter measurement for accuracy
- Operation mode
- Continuous or volume-controlled sampling
- Material
- AISI 316 stainless steel components
- Power supply
- 230 V AC or 115 V AC
- Weight
- Approx. 15 kg
- Recommended minimum mesh size
- 50 µm to prevent clogging
Standard Delivery Content
The contents of a standard order of Portable pump for micro plastic (7m max)
- Portable pump unit with stainless steel housing
- Digital flow meter for precise volume measurement
- Filter holders for up to 4 mesh sizes (1000 µm to 100 µm)
- Dummy rings for use without filters
- 20 m power cable
- Available in 230 V AC (model 23.565) and 115 V AC (model 23.566) versions
Application
Designed for the collection of microplastic particles and plankton from surface and shallow water (max. 7 m). Ideal for environmental monitoring, laboratory research, and quantitative microplastic studies.
Accessories
Accessories for Portable pump for micro plastic (7m max)
-

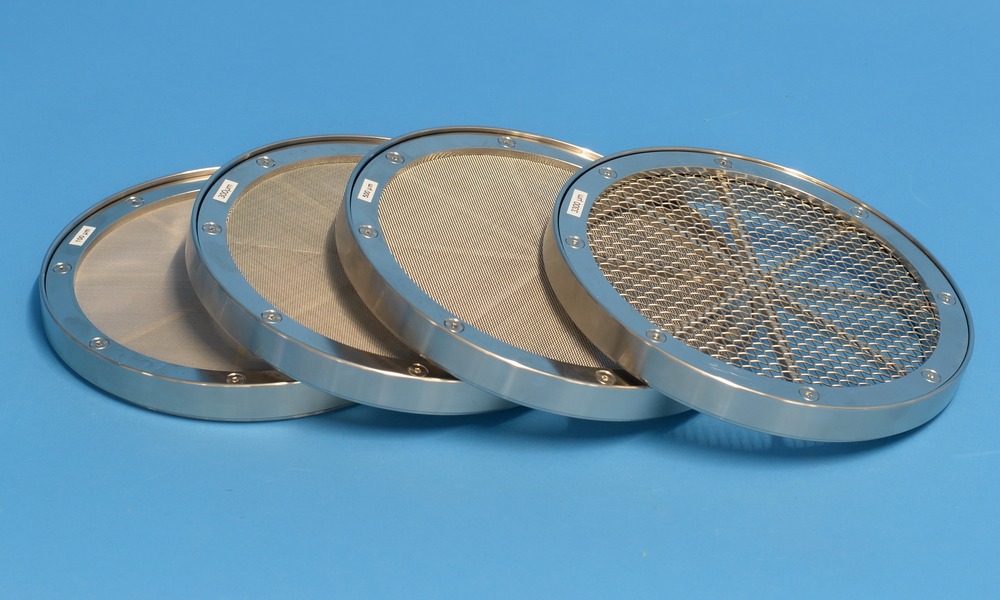

# __zz.mis-efc905b1Extra filter sets (20–1000 µm)
Optional mesh filters for alternative size ranges or replacements.
-
# __zz.mis-fdb24d12
Dummy filter rings
Used for operation with fewer filters or unrestricted pumping.
