Bongo net 2 x Ø60 cm
Dual-ring plankton net system (2 x Ø60 cm) for simultaneous sampling with two different mesh sizes, made of AISI 316 stainless steel and nylon nets.
Explore product sections
About

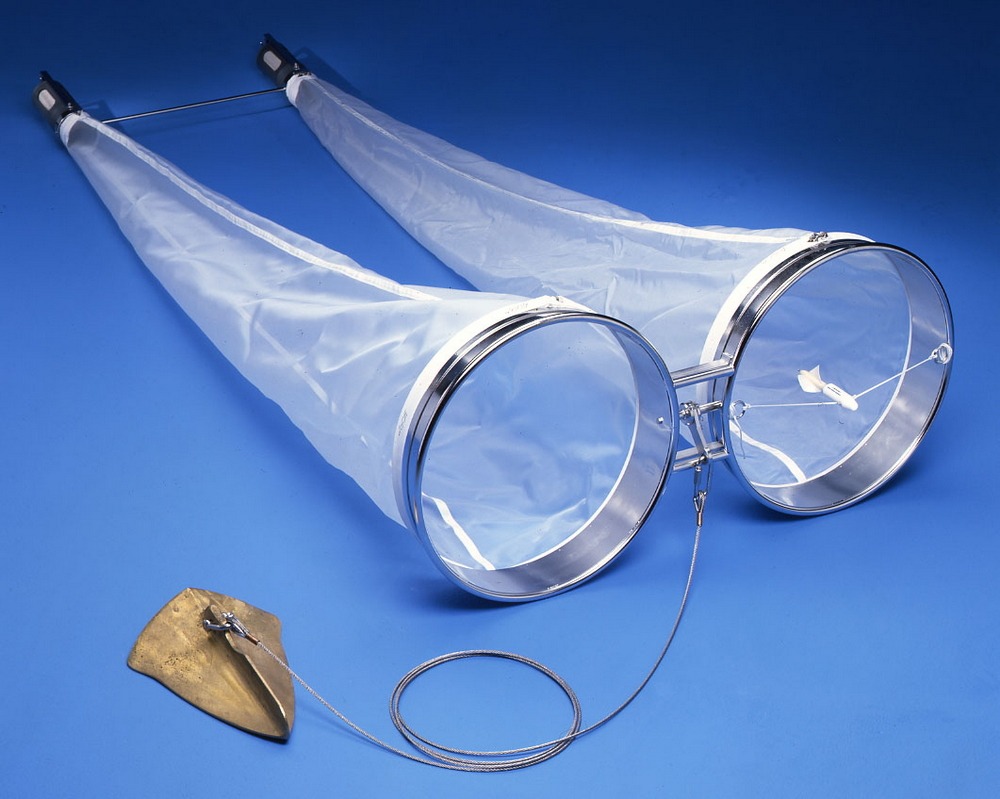

The KC Denmark Bongo Net (Model 23.300) consists of two ring nets mounted side by side for horizontal plankton sampling. Each conical plankton net has a small mesh width and a long funnel shape ending in a cod-end with a collection bucket. The dual design allows sampling with two different mesh sizes at the same time. The net frame and fixtures are made of AISI 316 stainless steel, and the net bags are made of Monodur Nytal (PA6.6 nylon). Optional accessories include a V-fin depressor made of cast brass (18 kg) and a stainless steel wire for towing. Each net can be equipped with a digital flow meter for accurate volume measurement. Standard delivery includes nets with mesh sizes 300 µm and 500 µm, with other sizes available on request.
Features
Highlighted features for Bongo net 2 x Ø60 cm
Specifications
Bongo net 2 x Ø60 cm Specifications
- Net diameter
- 2 x Ø60 cm
- Net length
- 250 cm
- Upper opening
- Ø60 cm
- Lower opening
- Ø11 cm
- Material
- AISI 316 stainless steel (frame, clamps) and Monodur Nytal PA6.6 nylon (net)
- Optional V-fin depressor
- Cast brass, 18 kg
- Wire
- Ø6 mm stainless steel with shackle (optional)
- Standard mesh sizes
- 300 µm and 500 µm (others on request, 100–500 µm at same cost)
Standard Delivery Content
The contents of a standard order of Bongo net 2 x Ø60 cm
- Double net ring Ø60 cm, AISI 316 stainless steel
- Two conical nets, Ø60 cm upper diameter, Ø11 cm lower diameter, 250 cm length, Monodur Nytal PA6.6 nylon mesh 300 µm + 500 µm
- Two plastic net buckets with stainless steel sieves (4 windows, total 160 cm²)
- Stainless steel clamping fixtures and bar with rings for bucket attachment
Application
Used for horizontal plankton sampling in oceanographic and limnological research. Suitable for simultaneous use of two different mesh widths, and compatible with flow meters and V-fin depressors for controlled towing depth and speed.
Accessories
Accessories for Bongo net 2 x Ø60 cm
-
# __zz.mis-vfin

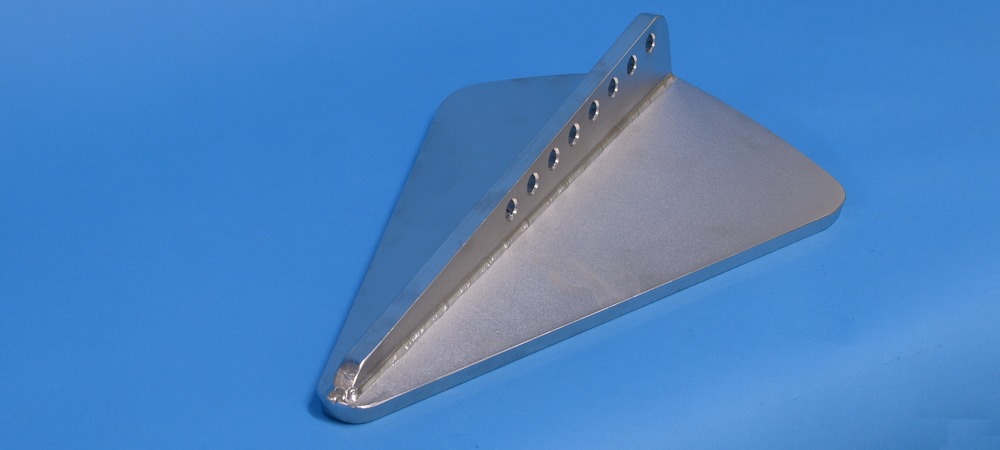

V-fin depressor
Cast brass V-fin, 18 kg, for stable towing and depth control.
-
# 23.315
Wire for V-fin depressor
Ø6 mm stainless steel wire with shackle, required for V-fin attachment.
-
# 23.090

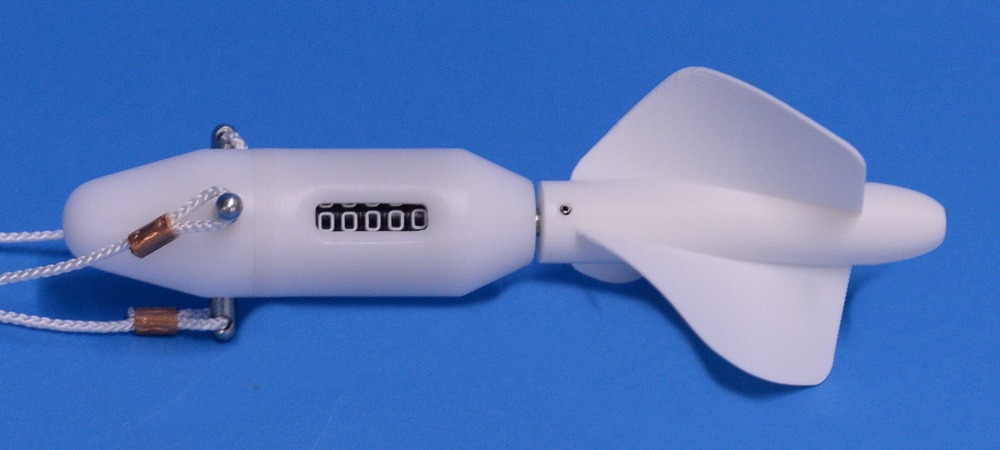

Digital flow meter
Standard KC Denmark digital flow meter for measuring water flow through each net.
-
# 23.091
Digital flow meter with back-run stop
Flow meter with anti-reverse mechanism for precise volume measurement.
-
# 23.290
Bongo net 2 x Ø30 cm
Smaller dual-net version for lighter sampling or shallower operations.
