Plankton net Ø30 cm

Product #: 23.007

Small conical plankton net with 30 cm diameter and 100 cm length, made of Monodur Nytal nylon mesh for general plankton sampling.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 14 23.007 Plankton Net 30 Cm Hor 1000 300 F 1
Imgi 14 23.007 Plankton Net 30 Cm Hor 1000 300 F 1
Imgi 14 23.007 Plankton Net 30 Cm Hor 1000 300 F 1
Imgi 15 23.001 Bucket 1000 500
Imgi 15 23.001 Bucket 1000 500
Imgi 16 23.004 Net Bucket 1000 500 1
Imgi 16 23.004 Net Bucket 1000 500 1
Imgi 17 23.951 Transparent Collecting Bottle 2 1000 500 F 1
Imgi 17 23.951 Transparent Collecting Bottle 2 1000 500 F 1
Imgi 18 23.005 Adapter 1000 500 F 1
Imgi 18 23.005 Adapter 1000 500 F 1
Imgi 19 23.003 Protection Bag 1000 500 F 1
Imgi 19 23.003 Protection Bag 1000 500 F 1
Imgi 20 23.090 Flow Meter F 1000 500 1
Imgi 20 23.090 Flow Meter F 1000 500 1

About

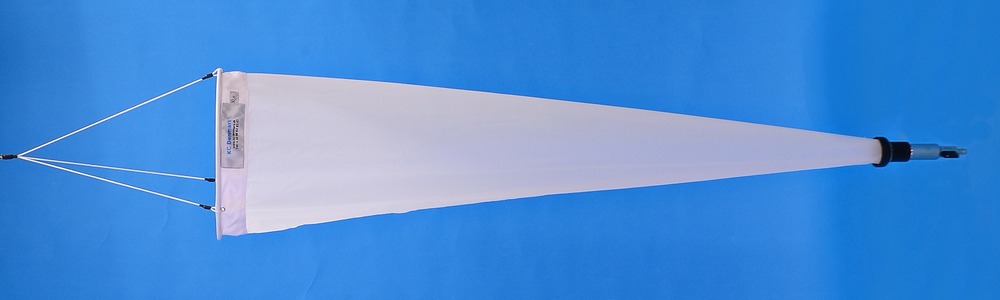

The KC Denmark Plankton Net Ø30 cm (Model 23.007) is a compact and versatile plankton sampling device designed for limnological, oceanographic, and hydrobiological research. The upper part of the net is made of durable Beaver Nylon with a standard 3-point bridle made of Ø5 mm polyester line, 60 cm long. The conical net bag (30 cm diameter, 100 cm length) is made of Monodur Nytal (Nylon) mesh available in sizes from 20 µm to 500 µm. The sample is collected in a detachable cylinder at the bottom, equipped with a valve for easy removal. The net supports multiple types of collecting cylinders, including brass, ASA plastic, and transparent plastic models. A carrying bag for transport and storage is also available.

Contact us regarding this product

Features

Highlighted features for Plankton net Ø30 cm

01
Durable construction
Upper part made from strong Beaver Nylon and corrosion-resistant fittings.
02
Flexible mesh size options
Available in mesh sizes from 20 µm to 500 µm, and optionally 5–15 µm.
03
Interchangeable sample cylinders
Compatible with various sample cylinder types for flexible collection and filtration options.
04
Easy sample removal
Bottom valve allows direct sample extraction without disassembling the net.
05
Portable and compact
Lightweight design with optional carrying bag for convenient transport and field use.

Specifications

Plankton net Ø30 cm Specifications

Upper diameter
30 cm
Net length
100 cm
Material
Beaver Nylon (upper part), Monodur Nytal (net)
Mesh size range
20 µm to 500 µm (standard); 5–15 µm optional (Model 23.008)
Bridle
3-point polyester, Ø5 mm, 60 cm length

Standard Delivery Content

The contents of a standard order of Plankton net Ø30 cm

  • Plankton net with 30 cm upper diameter, 100 cm length
  • Three-point polyester bridle Ø5 mm, 60 cm long
  • Sample cylinder type 23.001 (chromium-plated brass, 35 ml, with valve)

Application

Used for collecting plankton samples in freshwater and marine environments. Ideal for small-scale scientific sampling, educational purposes, and routine biological monitoring.

Do you have application questions?

Accessories

See all Accessories

Accessories for Plankton net Ø30 cm

  • # 23.001

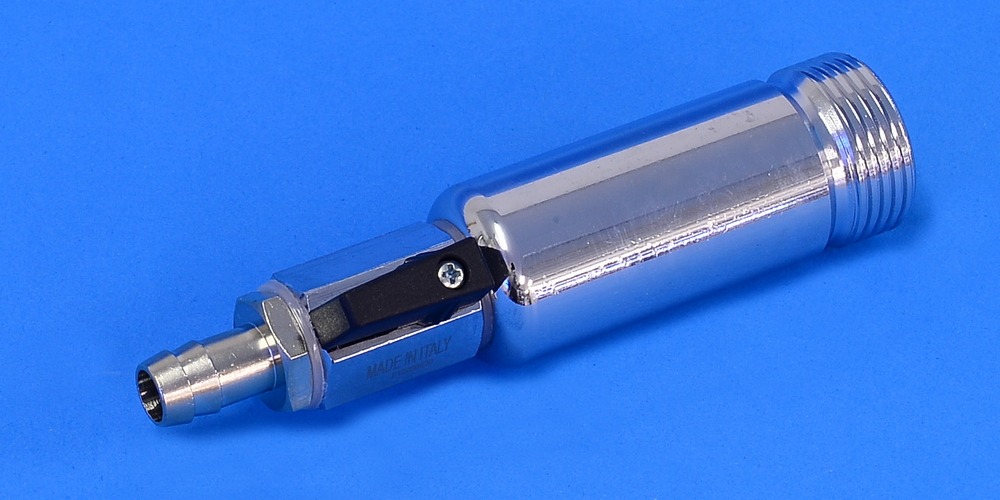

    Sample cylinder, brass 35 ml

    Standard collecting cylinder made of chromium-plated brass with valve.

  • # 23.004

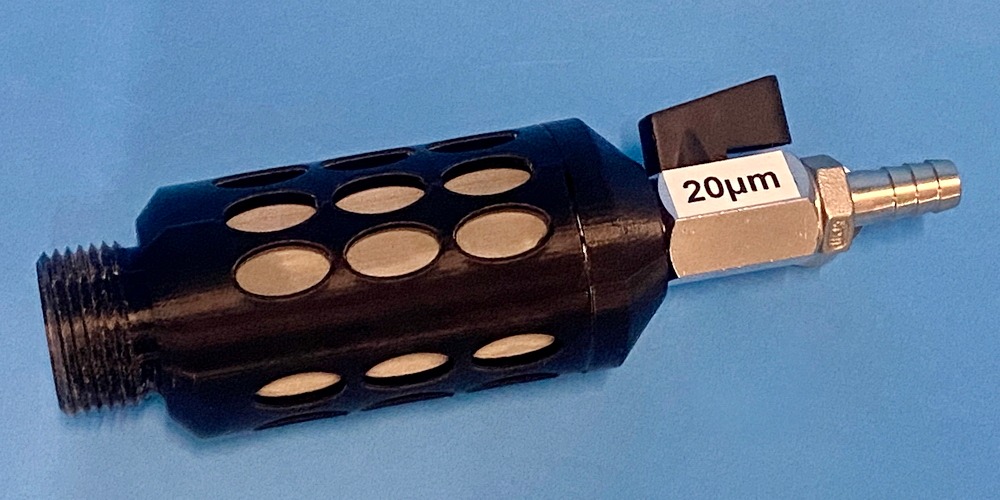

    Filtration cylinder, ASA plastic

    Filtration cylinder with multiple windows covered by mesh (80 ml capacity).

  • # 23.951D

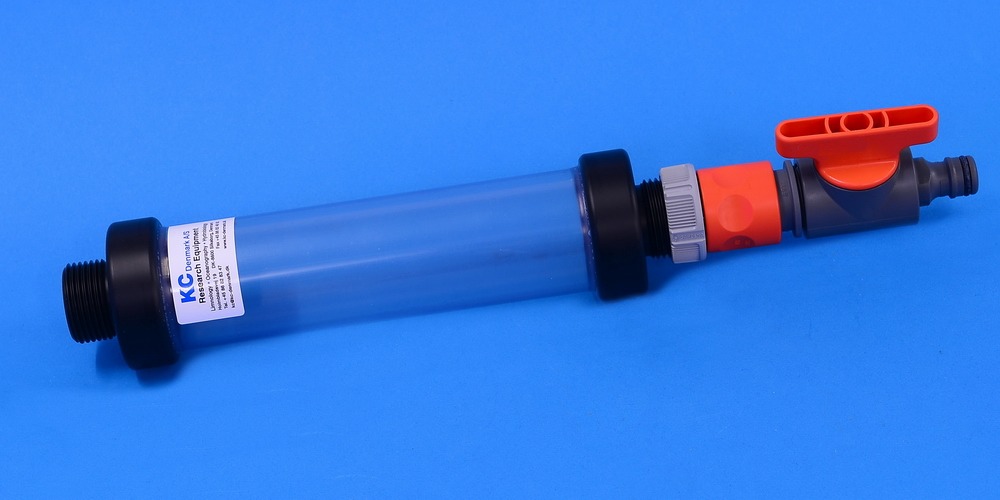

    Transparent collecting bottle 300 ml

    Plastic collection bottle with valve, transparent for visual inspection.

  • # 23.005

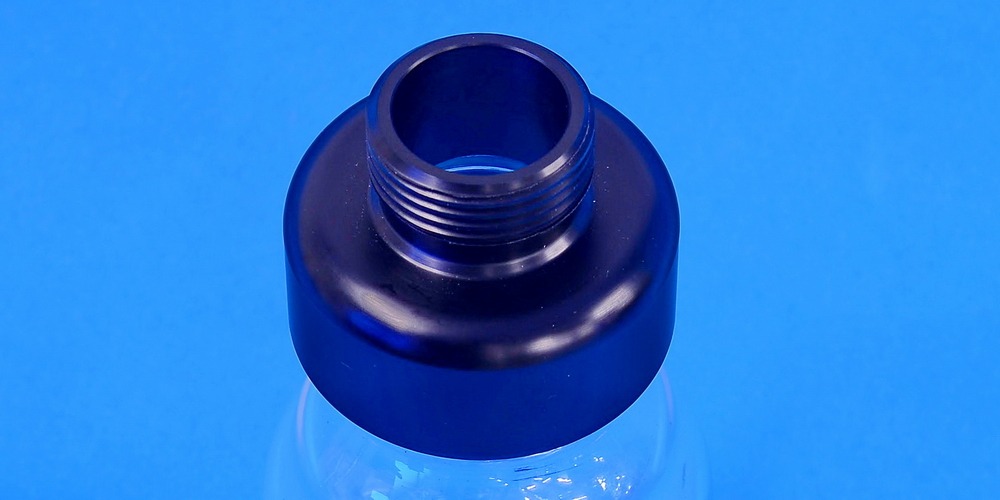

    Adapter for glass bottles

    Adapter for using glass bottles with GL45 thread (blue or red caps).

  • # 23.006

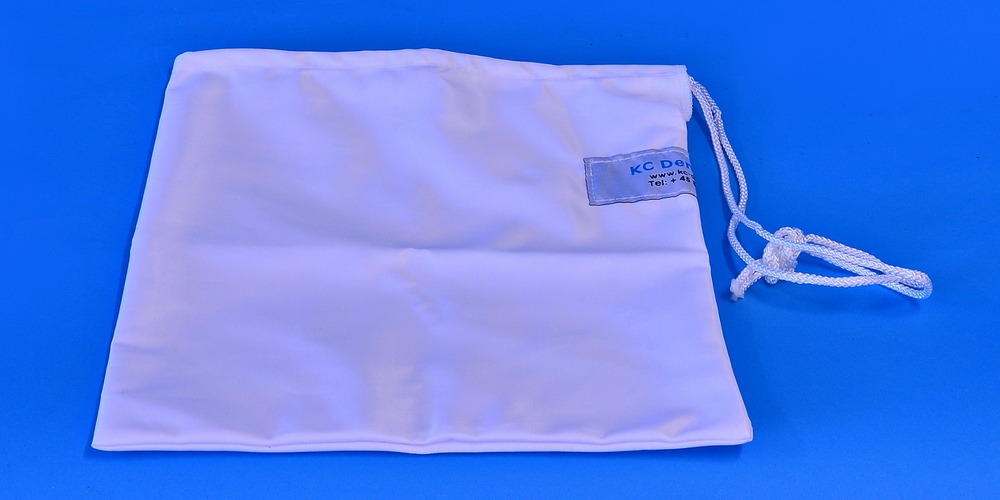

    Carrying bag

    Small bag for plankton net and accessories.
