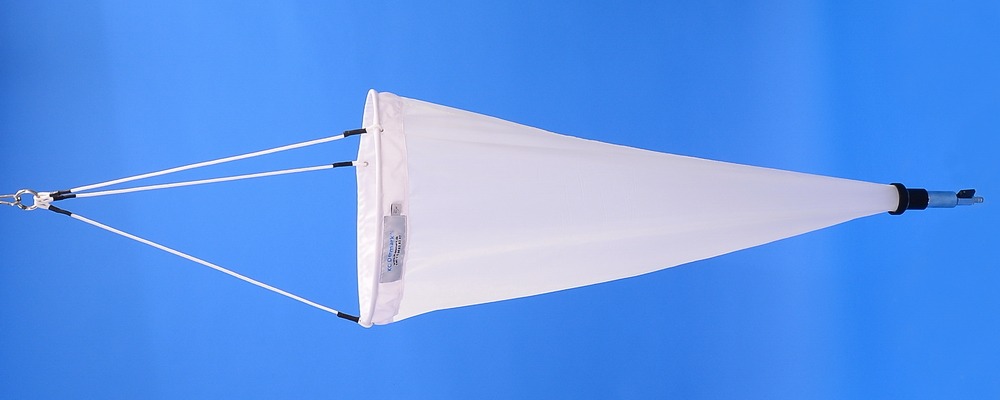

Plankton net Ø40 cm
Medium-sized conical plankton net with 40 cm diameter and 100 cm length, made of durable Monodur Nytal nylon mesh for general plankton sampling.
Explore product sections
About
The KC Denmark Plankton Net Ø40 cm (Model 23.010) is a medium-sized, versatile plankton net designed for collecting plankton samples in limnological and oceanographic studies. The upper part is made of strong Beaver Nylon, mounted with three polyester lines (Ø5 mm, 60 cm) and a bridle. The conical net bag has an upper diameter of 40 cm and a length of 100 cm, made of Monodur Nytal (PA6.6 nylon) mesh available in sizes from 20 µm to 500 µm. For ultra-fine collection between 5–15 µm, the variant 23.011 is available. The sample is collected in a detachable cylinder at the bottom, equipped with a valve for easy emptying. Multiple cylinder types are supported, including brass, ASA plastic, and transparent plastic bottles. A carrying bag for field transport is available.
Features
Highlighted features for Plankton net Ø40 cm
Specifications
Plankton net Ø40 cm Specifications
- Upper diameter
- 40 cm
- Net length
- 100 cm
- Material
- Beaver Nylon (upper), Monodur Nytal PA6.6 (net)
- Mesh size range
- 20–500 µm (standard); 5–15 µm (Model 23.011)
- Bridle
- 3-point polyester Ø5 mm, 60 cm
Standard Delivery Content
The contents of a standard order of Plankton net Ø40 cm
- Plankton net with 40 cm upper diameter, 100 cm length
- Three-point polyester bridle Ø5 mm, 60 cm long
- Sample cylinder type 23.001 (chromium-plated brass, 35 ml, with valve)
Application
Used for the collection of plankton samples in both marine and freshwater environments. Suitable for biological, ecological, and hydrobiological fieldwork requiring medium-volume samples.
Accessories
Accessories for Plankton net Ø40 cm
-

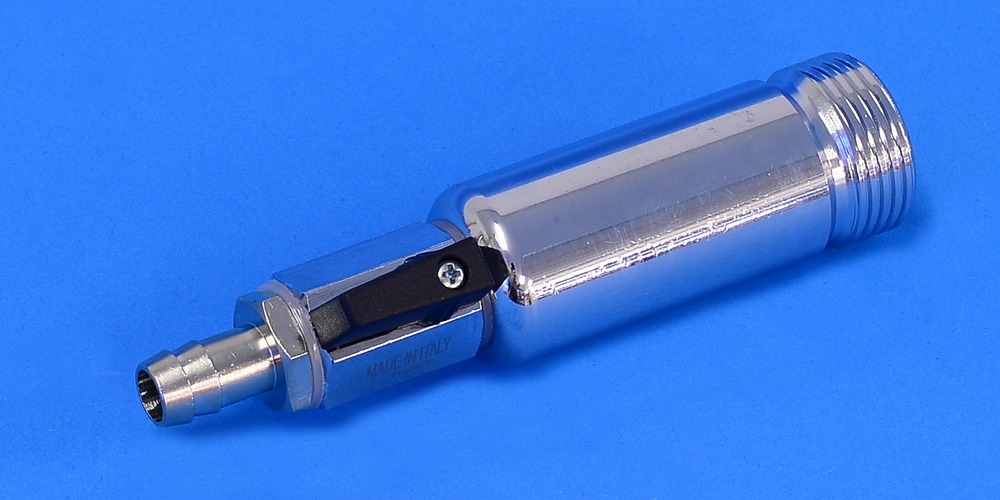

# 23.001
Sample cylinder, brass 35 ml
Standard collecting cylinder made of chromium-plated brass with valve.
-

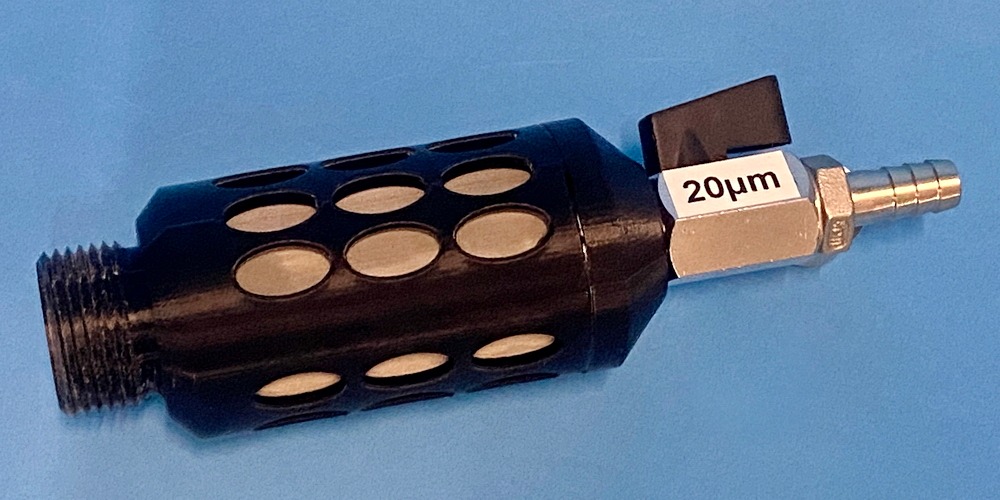

# 23.004
Filtration cylinder, ASA plastic 80 ml
Filtration sample cylinder made of ASA with multiple mesh-covered windows; includes valve.
-

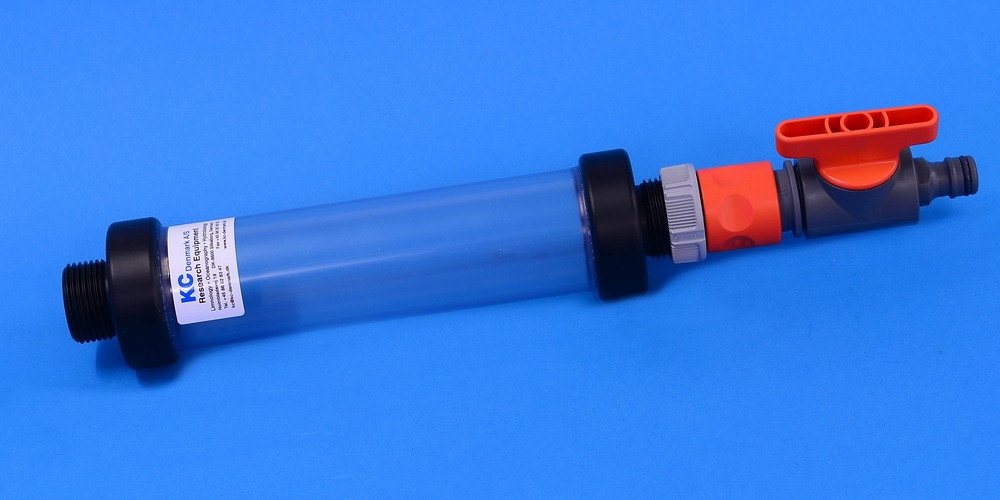

# 23.951D
Transparent collecting bottle 300 ml
Transparent plastic collecting bottle with valve for visual sample inspection.
-

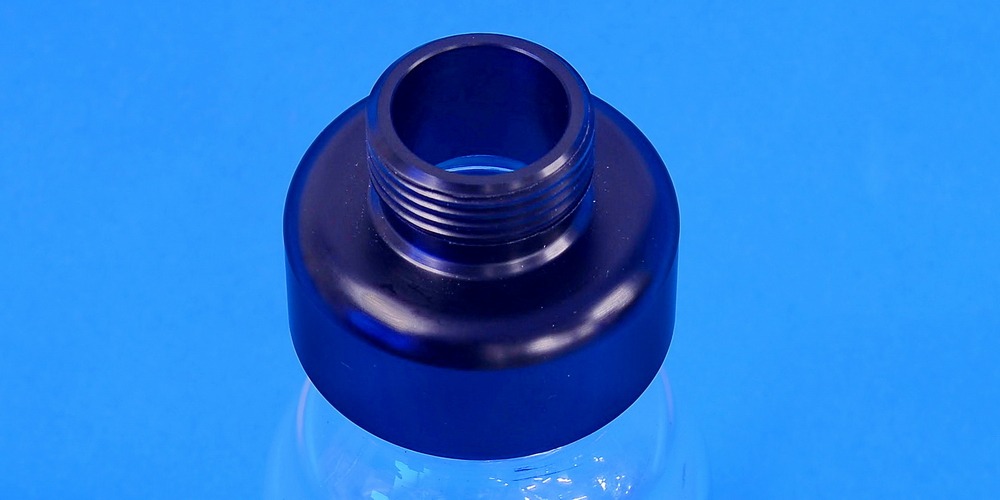

# 23.005
Adapter for glass bottles
Adapter for attaching glass bottles with GL45 blue/red caps.
-

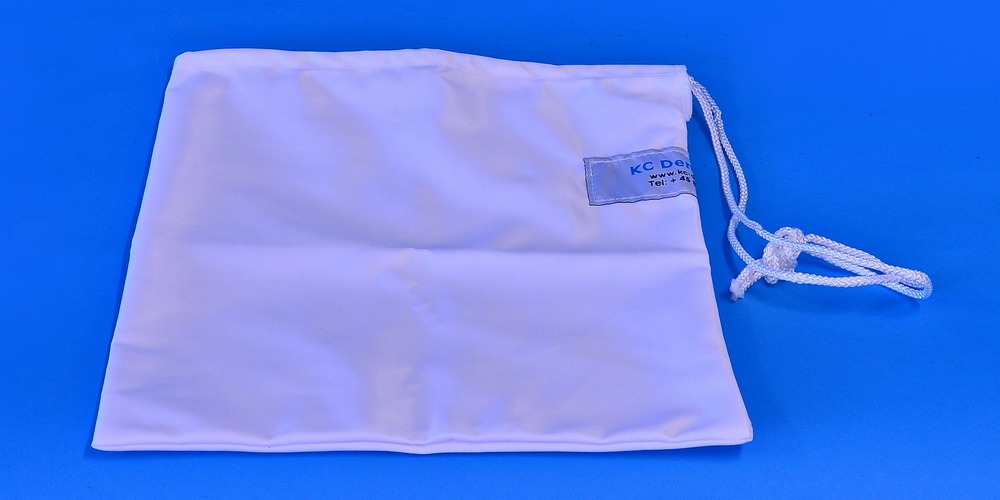

# 23.006
Carrying bag
Protective transport bag for plankton net and accessories.
-

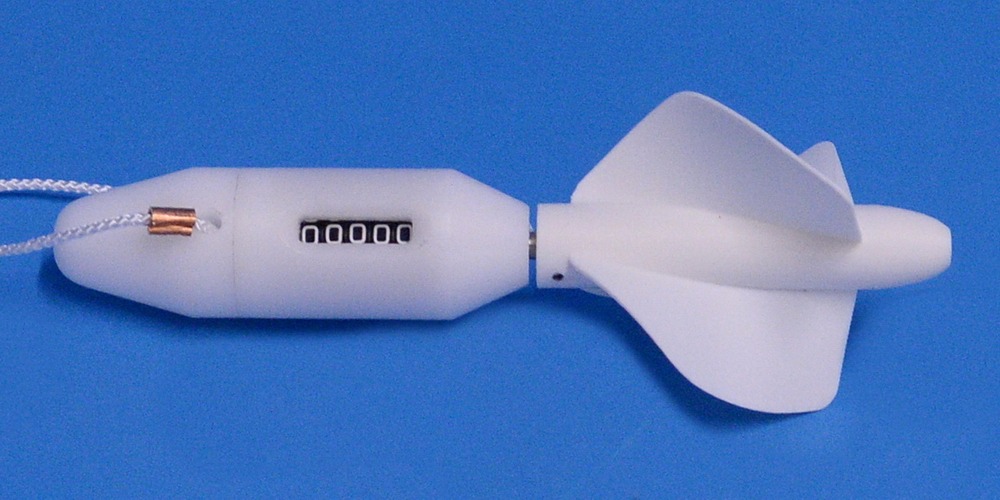

# 23.090
Digital flow meter
Optional KC Denmark flow meter for measuring volume of filtered water.
-
# 23.091
Digital flow meter with back-run stop
Optional flow meter with anti-reverse mechanism for precise readings.
