Plankton net Ø50 cm

Product #: 23.020

Large conical plankton net with 50 cm diameter and 200 cm net length, made of Monodur Nytal nylon mesh for general plankton collection.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 16 23.020 Plankton Net 50 Cm Hor 1000 300 F 1
Imgi 16 23.020 Plankton Net 50 Cm Hor 1000 300 F 1
Imgi 16 23.020 Plankton Net 50 Cm Hor 1000 300 F 1
Imgi 18 23.023 Net Bucket 1000 500 1
Imgi 18 23.023 Net Bucket 1000 500 1
Imgi 19 Details 2A 1000 500 1
Imgi 19 Details 2A 1000 500 1
Imgi 17 23.020 Plankton Net 50 Cm F 1 1000 1895
Imgi 17 23.020 Plankton Net 50 Cm F 1 1000 1895
Imgi 20 23.090 Flow Meter F 1000 500 1
Imgi 20 23.090 Flow Meter F 1000 500 1
Imgi 21 23.020 18 Adapter 1000 500 F 1
Imgi 21 23.020 18 Adapter 1000 500 F 1
Imgi 22 23.020 18 With Dhi Valve F 1000 500 1
Imgi 22 23.020 18 With Dhi Valve F 1000 500 1
Imgi 23 23.020 18 With Glass Bottle F 1000 500Aa 1
Imgi 23 23.020 18 With Glass Bottle F 1000 500Aa 1
Imgi 24 23.020 18 With Valve F 1000 500 1
Imgi 24 23.020 18 With Valve F 1000 500 1

About

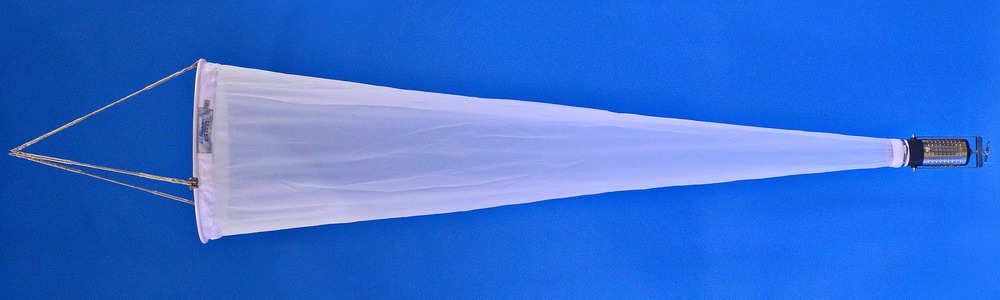

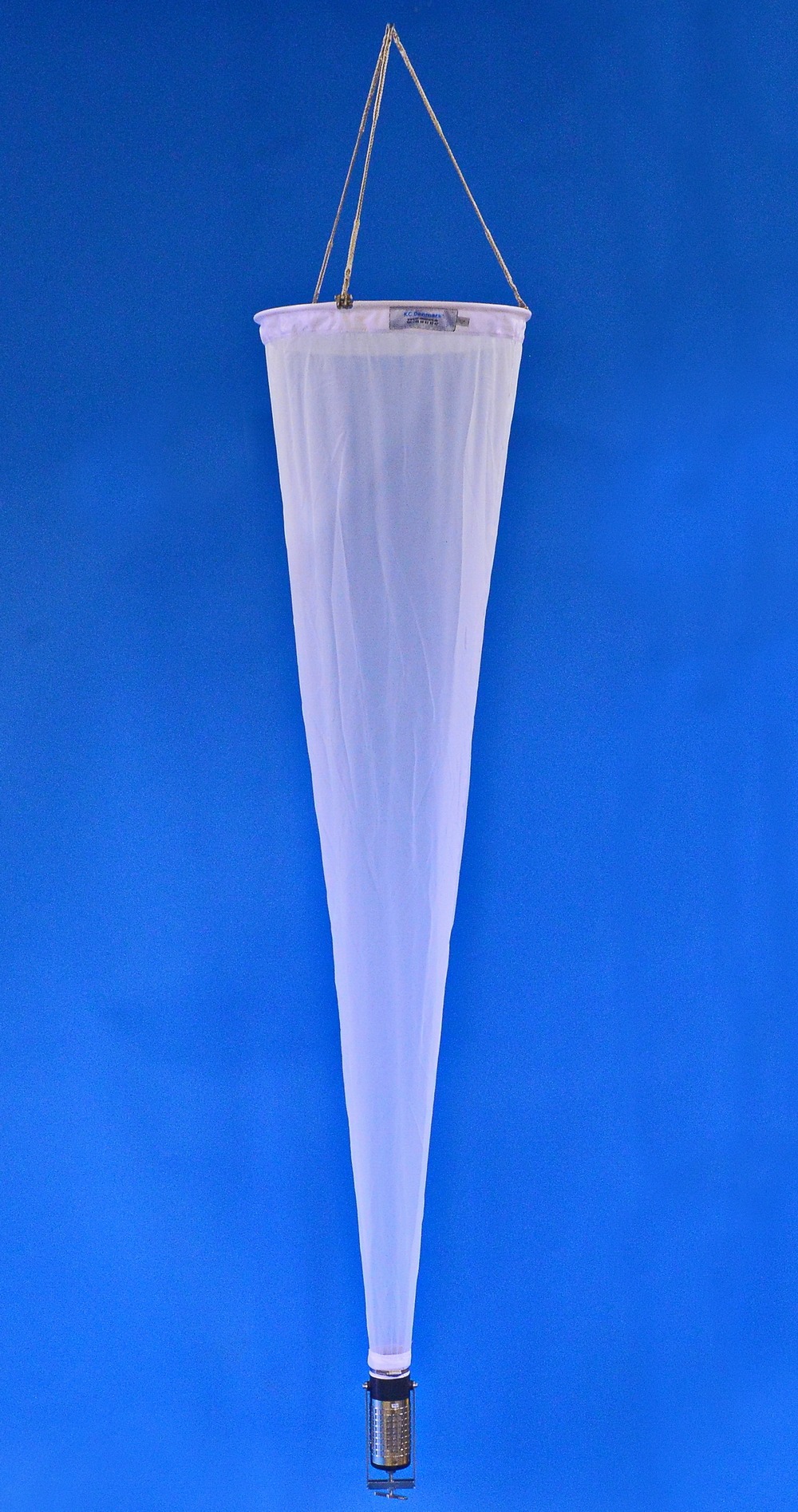

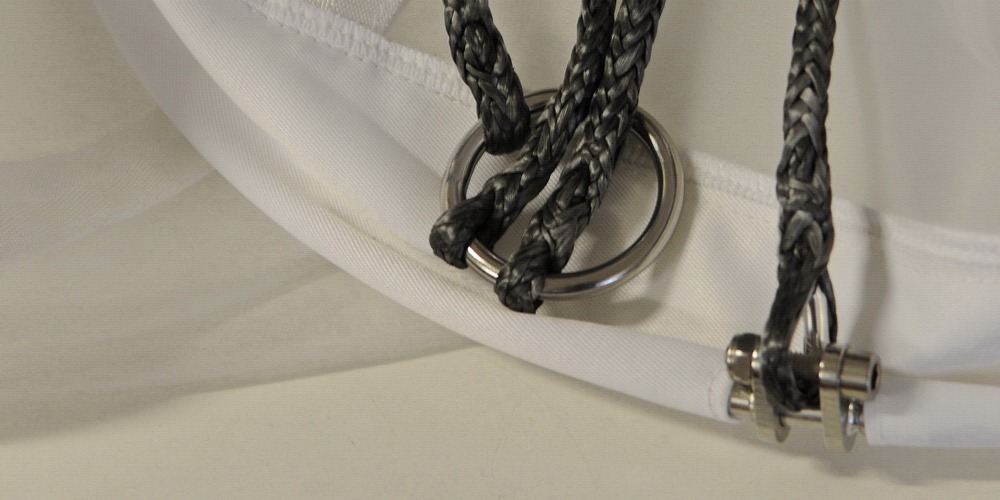

The KC Denmark Plankton Net Ø50 cm (Model 23.020) is a robust and efficient plankton collection tool for limnological and oceanographic sampling. The upper section of the net is made of strong Beaver Nylon and fitted with a 3-point bridle made from Ø5 mm polyester line, each 80 cm long. The conical net bag has an upper diameter of 50 cm and a length of 200 cm, made of Monodur Nytal (PA6.6 nylon) mesh, available in mesh sizes from 50 µm to 500 µm. A fine-mesh version (Model 23.020A) is also available with 20–40 µm mesh. The overall length of the assembled system is 280 cm. The net includes a detachable collecting bucket (Model 23.023) for easy sample retrieval. All KC Denmark plankton nets are available in various sizes and configurations upon request.

Contact us regarding this product

Features

Highlighted features for Plankton net Ø50 cm

01
Durable and corrosion-resistant materials
Constructed from high-quality Beaver Nylon and Monodur Nytal nylon for longevity in marine environments.
02
Available in multiple mesh sizes
Standard version supports 50–500 µm; fine version (23.020A) supports 20–40 µm mesh.
03
Detachable collecting bucket
Includes 23.023 bucket for secure sample collection and easy cleaning.
04
Strong bridle mounting
Equipped with three 80 cm polyester lines (Ø5 mm) for balanced towing.
05
Customizable design
Other net diameters and mesh sizes available upon request.

Specifications

Plankton net Ø50 cm Specifications

Outer diameter
50 cm
Net length
200 cm
Overall length
280 cm
Material (upper)
Beaver Nylon
Material (net)
Monodur Nytal (Nylon)
Mesh size
50–500 µm (Model 23.020) or 20–40 µm (Model 23.020A)
Bridle
3-point polyester, Ø5 mm, 80 cm length

Standard Delivery Content

The contents of a standard order of Plankton net Ø50 cm

  • Plankton net Ø50 cm, length 200 cm
  • Three-point polyester bridle Ø5 mm, 80 cm length
  • Collecting bucket Model 23.023

Application

Used for general plankton collection in marine and freshwater environments. Suitable for biological and ecological studies requiring moderate-to-large sample volumes.

Do you have application questions?

Accessories

See all Accessories

Accessories for Plankton net Ø50 cm

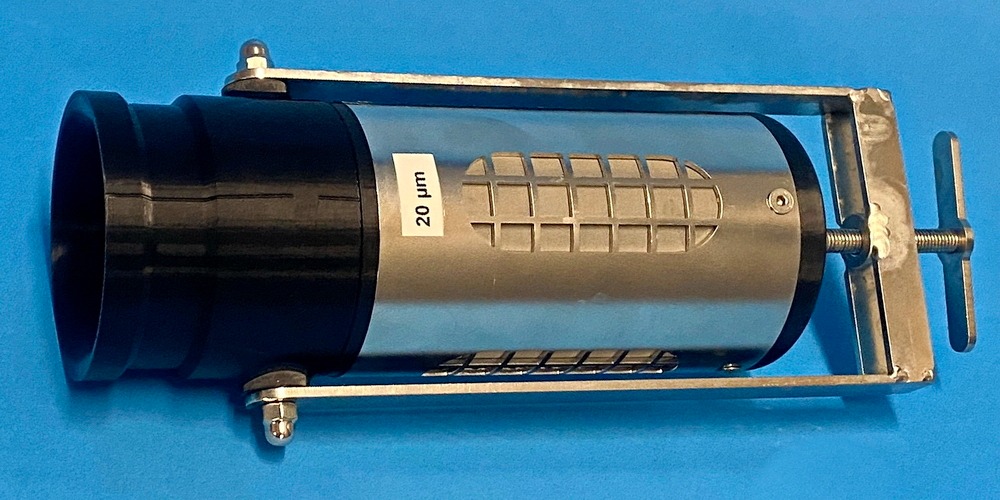

  • # 23.023

    Collecting bucket

    Standard detachable net bucket supplied with plankton nets.

  • # 23.004

    Filtration cylinder, ASA plastic 80 ml

    Optional filtration cylinder with mesh-covered windows for integrated sample filtration.

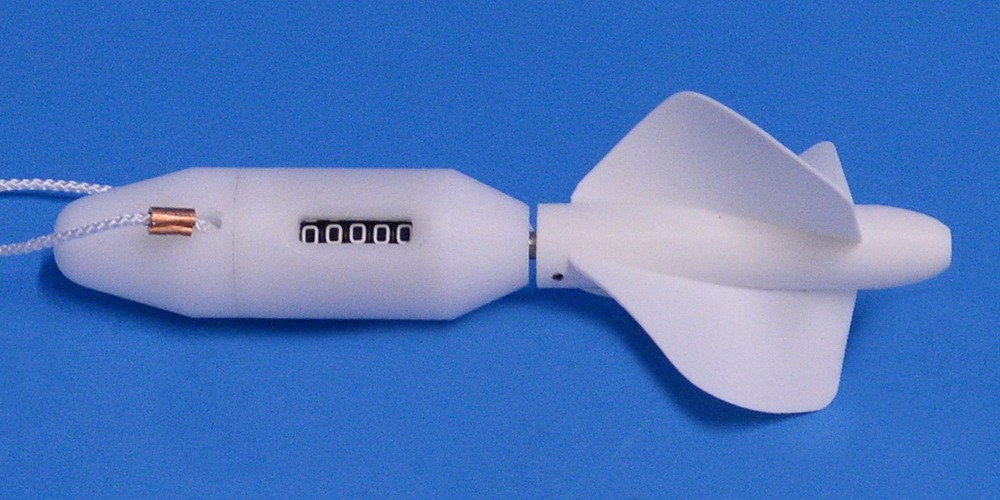

  • # 23.090

    Digital flow meter

    Optional flow meter for measuring volume of filtered water.

  • # 23.091

    Digital flow meter with back-run stop

    Optional flow meter variant with anti-reverse mechanism.

  • # 23.006

    Carrying bag

    Optional transport bag for plankton nets and accessories.
