Ring trawl net Ø100 cm
AISI 316 stainless steel ring trawl net with Ø100 cm mouth and 500 µm Monodur Nytal net for plankton sampling.
Explore product sections
About

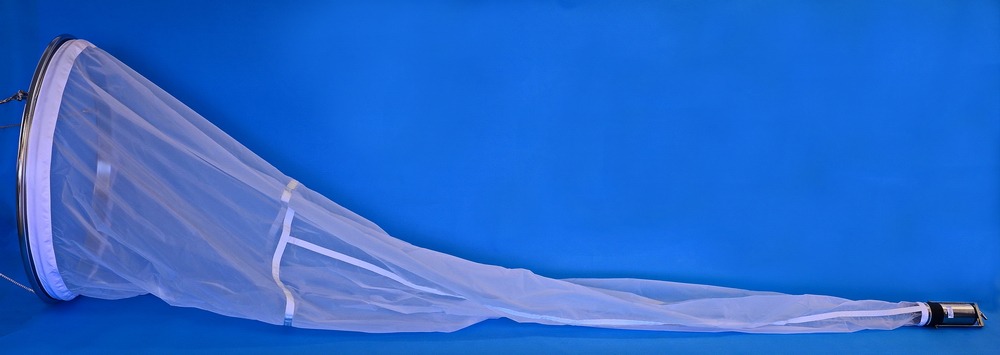

The ring trawl net Ø100 cm consists of high-quality AISI 316 stainless steel components and a durable Monodur Nytal net. It features a stainless steel ring with loops for bridle and digital counter attachment. The conical net is 3 meters long with 500 µm mesh size (other mesh sizes available upon request). The system includes clamping fixtures and a sample cylinder with stainless steel sieves for efficient sample collection. The net is designed for robust and precise oceanographic plankton sampling.
Features
Highlighted features for Ring trawl net Ø100 cm
Specifications
Ring trawl net Ø100 cm Specifications
- Mouth diameter
- Ø100 cm (0.785 m²)
- Net length
- 3 m
- Mesh size
- 500 µm (other mesh sizes on request)
- Material (net)
- Monodur Nytal (synthetic)
- Material (frame and fittings)
- AISI 316 stainless steel
- Ropes
- 3 pcs Ø6 mm polyester, length 100 cm
Standard Delivery Content
The contents of a standard order of Ring trawl net Ø100 cm
- A: 3 pcs Ø6 mm polyester rope with bridle and snap hook, rope length 100 cm
- B: Net ring of AISI 316 stainless steel tubing with loops for bridle and digital counter, Ø100 cm = 0.785 m²
- C: AISI 316 stainless steel clamping fixture
- D: Conical Monodur Nytal (synthetic) net, 500 µm mesh, length 3 m
- E: AISI 316 stainless steel clamping fixture

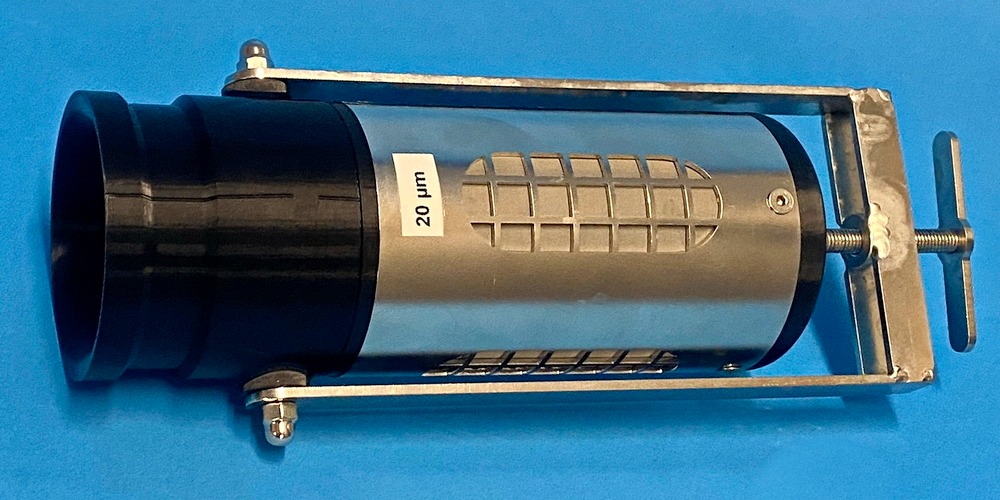

- F: Sample cylinder with 4 side windows covered by stainless steel sieve
Application
Used for plankton sampling in oceanographic and limnological research, suitable for various mesh sizes and flow meter integration.
Accessories
Accessories for Ring trawl net Ø100 cm
-
# 23.090

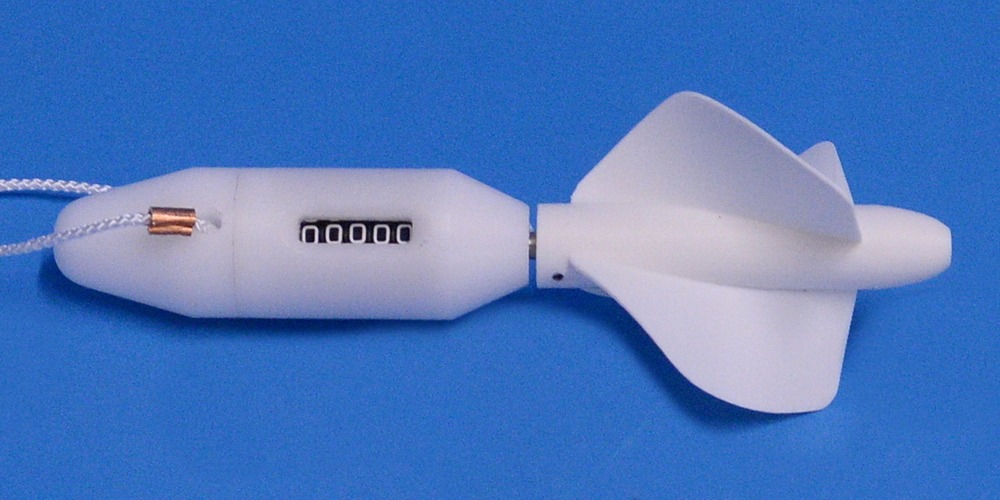

Digital flow meter (no back-run stop)
Optional flow meter to determine water volume through the net.
-
# 23.091
Digital flow meter (with back-run stop)
Optional flow meter with back-run stop function.
