Small Plankton Net Ø25 cm

Product #: 23.000

Compact plankton net Ø25 cm with Monodur Nytal net bag and various sample cylinder options for plankton collection.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 17 23.000 Plankton Net 25 Cm Hor 1000 300 F 1
Imgi 17 23.000 Plankton Net 25 Cm Hor 1000 300 F 1
Imgi 17 23.000 Plankton Net 25 Cm Hor 1000 300 F 1
Imgi 18 23.001 Bucket 1000 500
Imgi 18 23.001 Bucket 1000 500
Imgi 19 23.004 Net Bucket 1000 500 1
Imgi 19 23.004 Net Bucket 1000 500 1
Imgi 20 23.951 Transparent Collecting Bottle 2 1000 500 F 1
Imgi 20 23.951 Transparent Collecting Bottle 2 1000 500 F 1
Imgi 21 23.005 Adapter 1000 500 F 1
Imgi 21 23.005 Adapter 1000 500 F 1
Imgi 22 23.003 Protection Bag 1000 500 F 1
Imgi 22 23.003 Protection Bag 1000 500 F 1
Imgi 23 23.090 Flow Meter F 1000 500 1
Imgi 23 23.090 Flow Meter F 1000 500 1

About

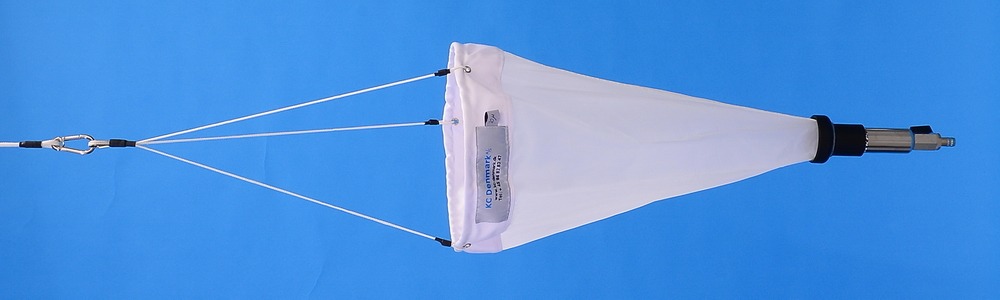

The small plankton net Ø25 cm is a lightweight, conical net used for plankton collection. The net bag has an upper diameter of 25 cm and a length of 40 cm, made of Monodur Nytal (Nylon) with mesh sizes from 20 to 500 µm (ordering no. 23.000) or 5–15 µm (ordering no. 23.002). The sample is collected via a valve at the bottom of the sample cylinder. Multiple cylinder options are available, including chromium-plated brass, ASA plastic, or transparent collecting bottle. An adapter enables use with glass bottles. A digital flow meter can be attached for volume measurement.

Contact us regarding this product

Features

Highlighted features for Small Plankton Net Ø25 cm

01
Compact and lightweight design
Ideal for small-scale or handheld plankton sampling.
02
Multiple sample cylinder options
Supports brass, ASA, and transparent plastic cylinders for various sampling needs.
03
Compatible with flow meter
Can be equipped with a digital flow meter to measure water volume passing through the net.

Specifications

Small Plankton Net Ø25 cm Specifications

Net diameter
Ø25 cm
Net length
40 cm
Mesh size options
20–500 µm (23.000); 5–15 µm (23.002)
Material (net)
Monodur Nytal (Nylon)
Standard cylinder capacity
35 ml
Optional cylinder capacities
80 ml, 300 ml

Standard Delivery Content

The contents of a standard order of Small Plankton Net Ø25 cm

  • Plankton net Ø25 cm (Monodur Nytal 20–500 µm), length 40 cm
  • Standard sample cylinder 23.001, chromium-plated brass with valve (35 ml)

Application

Used for plankton sampling in oceanographic, limnological, and hydrobiological studies, suitable for fine-mesh applications and customizable sample collection setups.

Do you have application questions?

Accessories

See all Accessories

Accessories for Small Plankton Net Ø25 cm

  • # 23.001

    Sample cylinder, brass

    Chromium-plated brass with valve, 35 ml capacity. Included as standard.

  • # 23.004

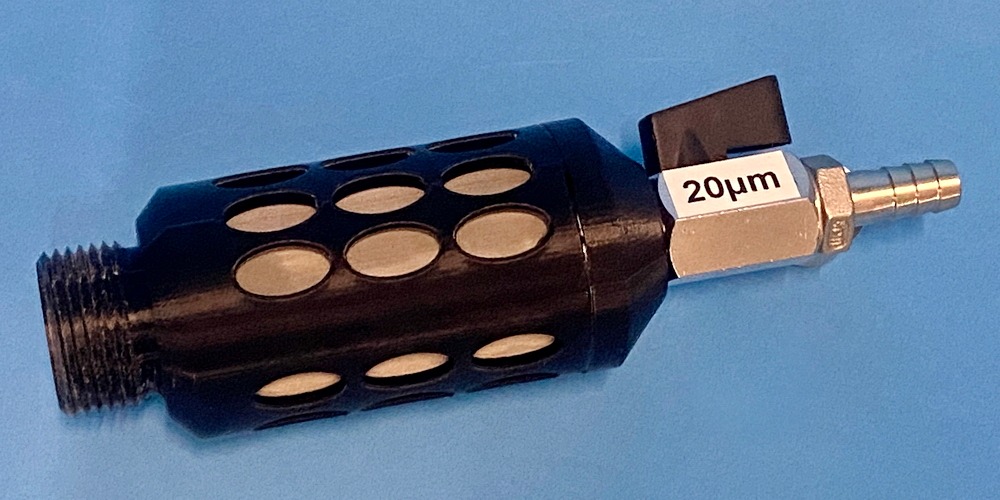

    Filtration sample cylinder

    Made of ASA plastic with sieved windows, mesh matching the main net, 80 ml capacity.

  • # 23.951D

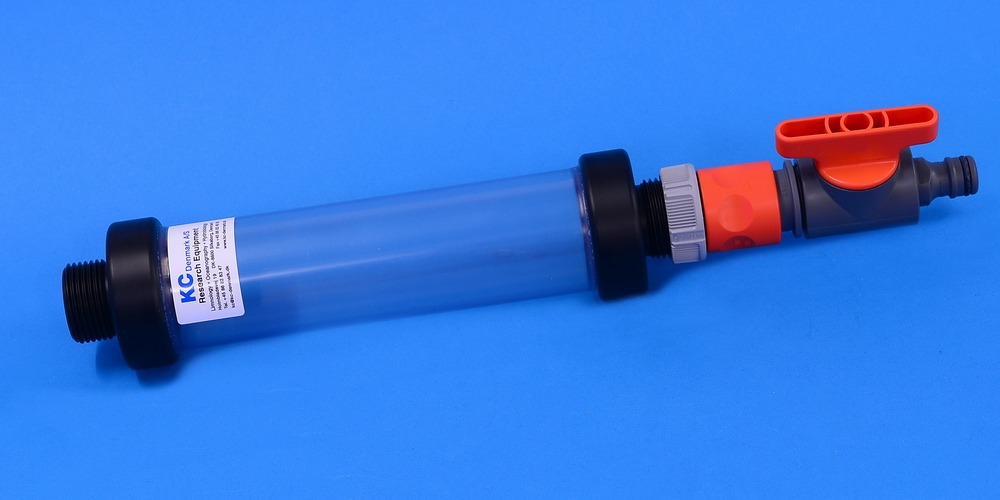

    Transparent collecting bottle

    Transparent bottle with valve, 300 ml capacity.

  • # 23.005

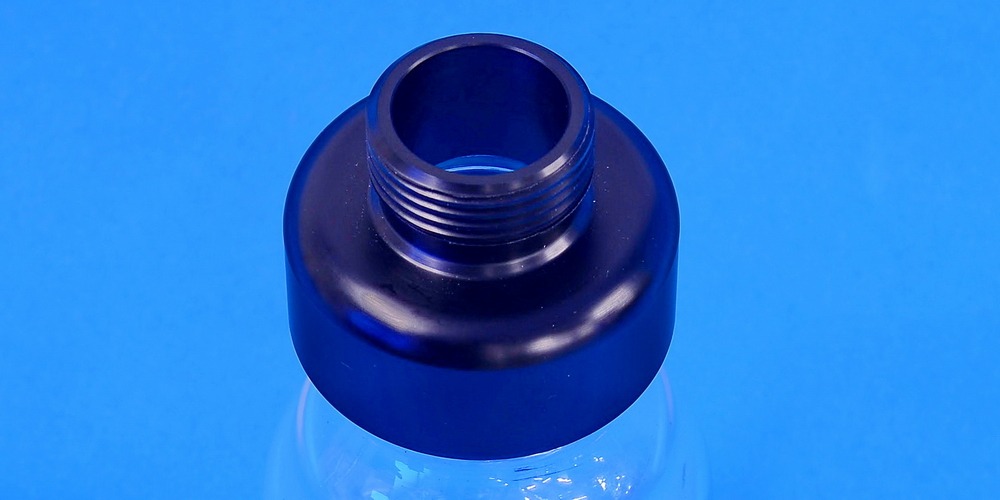

    Adapter for GL45 bottles

    Adapter for blue and red cap glass bottles with GL45 thread.

  • # 23.006

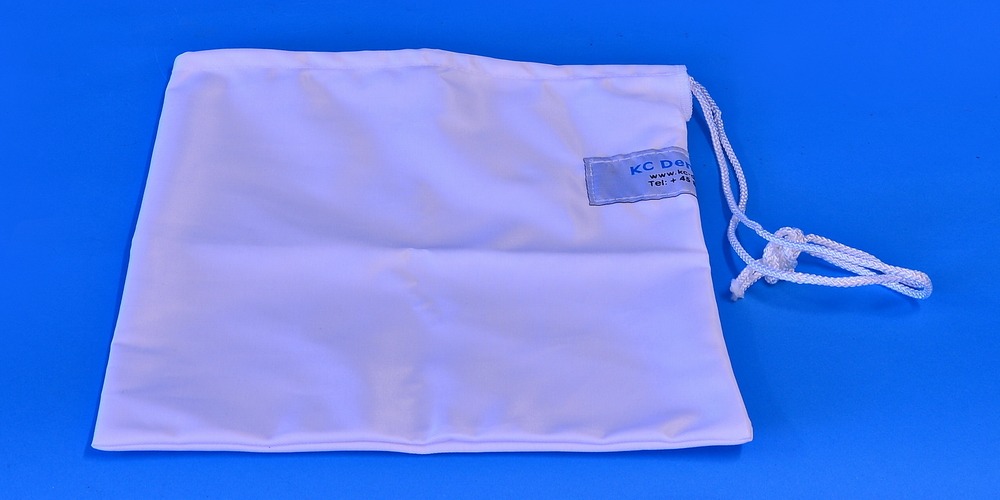

    Carrying bag

    Small carrying bag for plankton net and accessories.

  • # 23.090

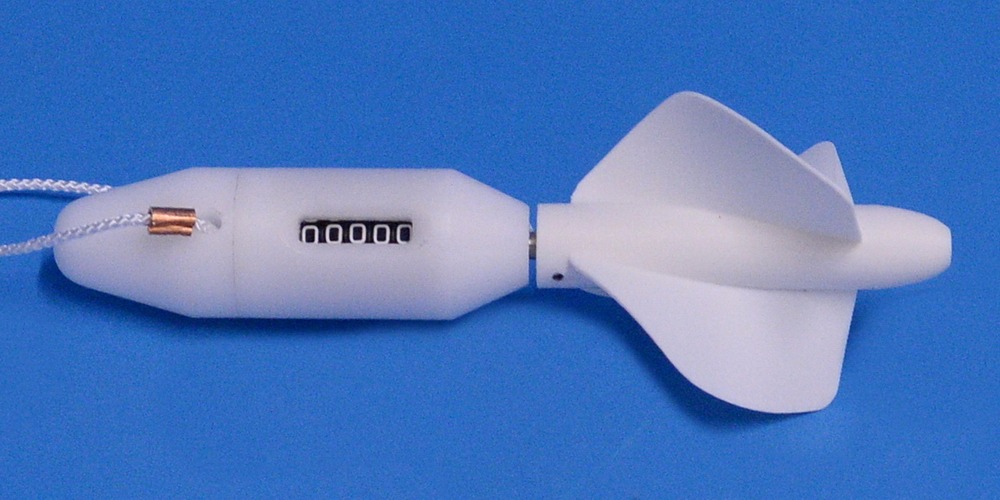

    Digital flow meter (no back-run stop)

    Optional digital flow meter to determine water volume through the net.

  • # 23.091

    Digital flow meter (with back-run stop)

    Optional digital flow meter with back-run stop feature.
