WP2 net Ø57/70/75 cm

Product #: 23.100

WP2 plankton net available with Ø57, Ø70, or Ø75 cm mouth diameters, designed for quantitative plankton sampling, compatible with optional digital flow meters and Nansen closing mechanism.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 18 23.100 Wp 2 Net F Hor 1000 500 1
Imgi 18 23.100 Wp 2 Net F Hor 1000 500 1
Imgi 18 23.100 Wp 2 Net F Hor 1000 500 1
Imgi 19 23.200 Net Bucket 1000 700 F 1
Imgi 19 23.200 Net Bucket 1000 700 F 1
Imgi 17 23.100 Wp 2 Net F Txt 1000 1884
Imgi 17 23.100 Wp 2 Net F Txt 1000 1884
Imgi 20 23.200 Net Bucket 9 Lead Weights F 1000 700 1
Imgi 20 23.200 Net Bucket 9 Lead Weights F 1000 700 1
Imgi 21 23.250 Collecting Bottle 1000 700 F 1
Imgi 21 23.250 Collecting Bottle 1000 700 F 1
Imgi 22 23.250 Collecting Bucket Dis F 1000 700 1
Imgi 22 23.250 Collecting Bucket Dis F 1000 700 1
Imgi 23 23.140 Mounted On The Net F 1000 700 1
Imgi 23 23.140 Mounted On The Net F 1000 700 1
Imgi 24 23.050 Nansen Releaser 1000 700 F 1
Imgi 24 23.050 Nansen Releaser 1000 700 F 1
Imgi 25 23.090 Flow Meter F 1000 700 1
Imgi 25 23.090 Flow Meter F 1000 700 1

About

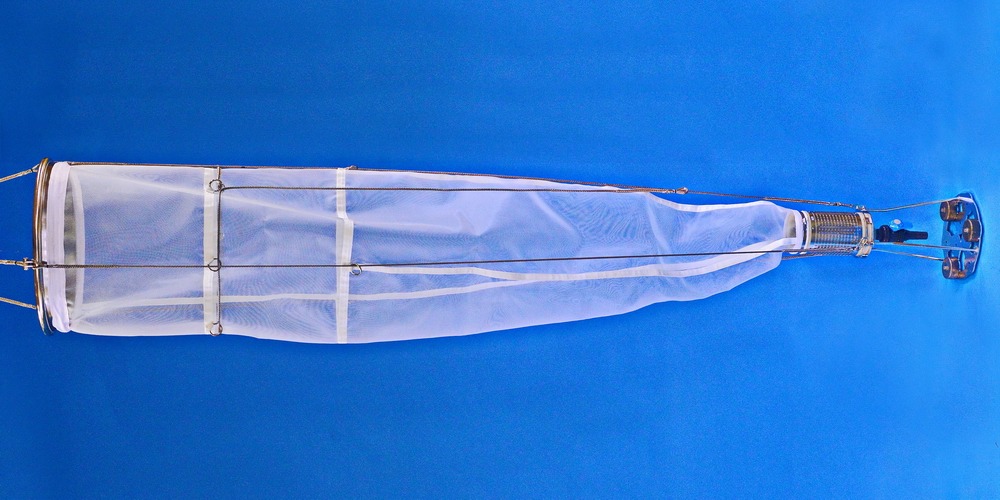

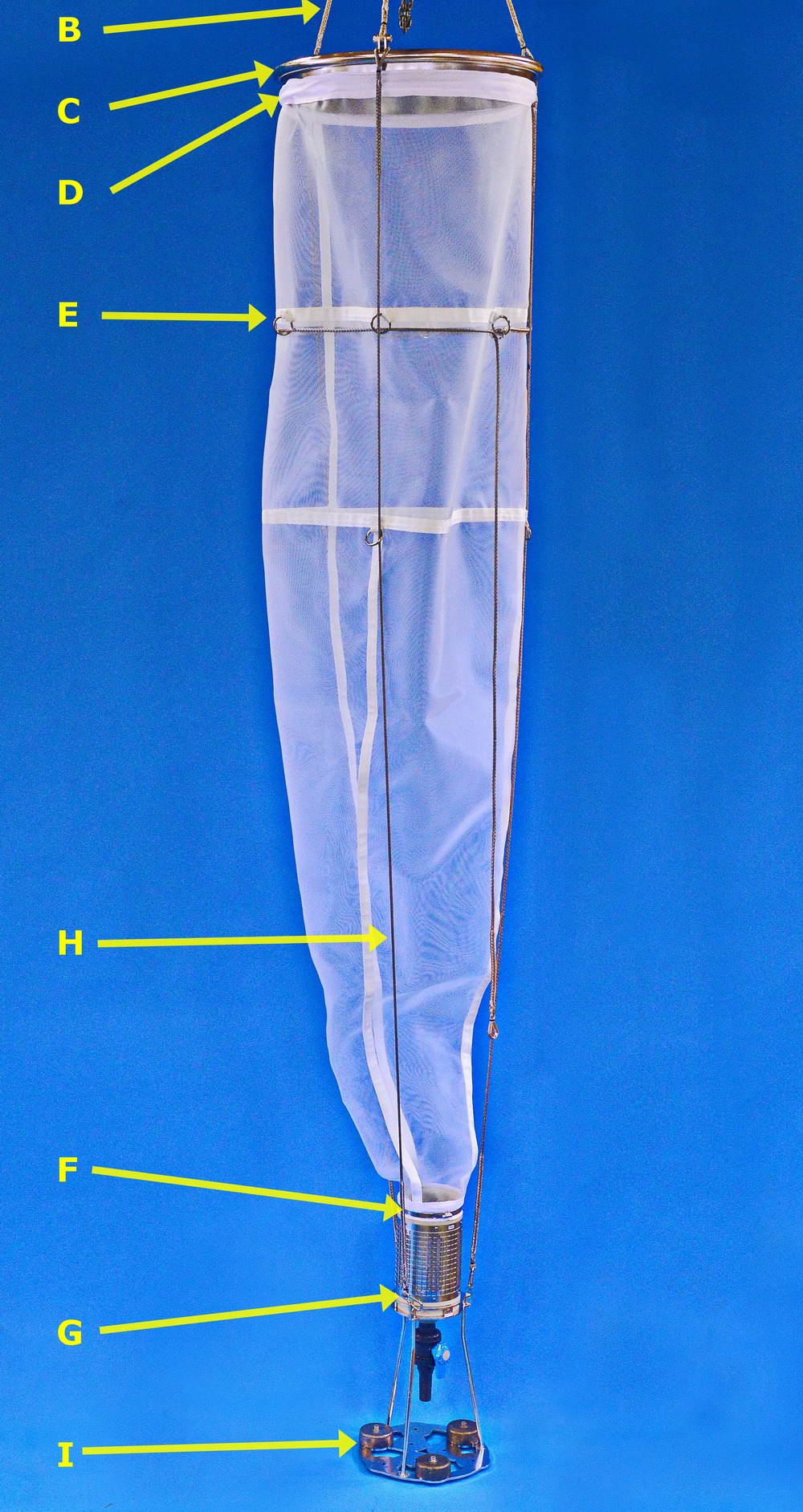

The WP2 plankton net is a high-quality, standardized net for plankton sampling. It is constructed with a stainless steel ring and Monodur Nytal (Nylon) conical net, and can be equipped with a digital flow meter to measure the volume of water filtered. The net is available in three diameters: Ø57 cm (0.25 m²), Ø70 cm (0.38 m², Nansen closing net), and Ø75 cm (0.44 m²). The WP3 model (Ø113 cm, 1.0 m²) is also available as the Indian Ocean Standard Net. The setup includes stainless steel fittings, bridle lines, and an optional Nansen release mechanism for messenger-operated closure.

Contact us regarding this product

Features

Highlighted features for WP2 net Ø57/70/75 cm

01
Standardized WP2 design
Follows international standards for plankton sampling with consistent geometry and materials.
02
Durable stainless steel construction
All metallic parts are AISI 316 stainless steel for corrosion resistance.
03
Flow meter compatibility
Supports KC Denmark digital flow meters for accurate water volume measurement.
04
Optional closing mechanism
Can be fitted with a Nansen release mechanism for depth-specific sample collection.

Specifications

WP2 net Ø57/70/75 cm Specifications

Available diameters
Ø57 cm (0.25 m²), Ø70 cm (0.38 m², Nansen closing net), Ø75 cm (0.44 m²)
Material (frame)
AISI 316 stainless steel
Material (net)
Monodur Nytal (Nylon)
Net length
approx. 2.5–3 m depending on model
Mesh size
200 µm standard (other mesh sizes on request)
Bridle ropes
3 pcs Ø6 mm Nylon, length 85 cm

Standard Delivery Content

The contents of a standard order of WP2 net Ø57/70/75 cm

  • Ring of AISI 316 stainless steel tubing with loops for bridle, weight, and counter
  • Three Nylon lines (Ø6 mm) with bridle and snap hook, length 85 cm
  • AISI 316 stainless steel clamping fixtures
  • Monodur Nytal (Nylon) conical net, mesh 200 µm (standard)
  • Sample cylinder with stainless steel sieve-covered windows

Application

Used for oceanographic, limnological, and hydrobiological plankton sampling, including quantitative collection and studies requiring flow measurement or depth-specific sampling via closing mechanism.

Do you have application questions?

Accessories

See all Accessories

Accessories for WP2 net Ø57/70/75 cm

  • # 23.090

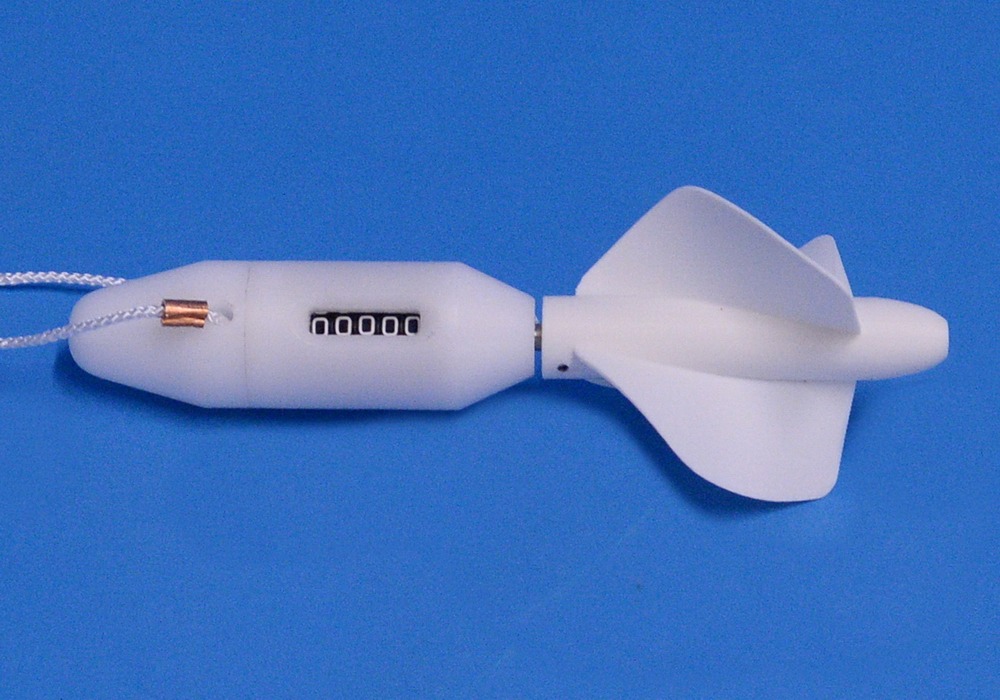

    Digital flow meter (no back-run stop)

    Optional instrument for measuring filtered water volume through the net.

  • # 23.091

    Digital flow meter (with back-run stop)

    Optional flow meter with back-run stop feature.

  • # 23.101

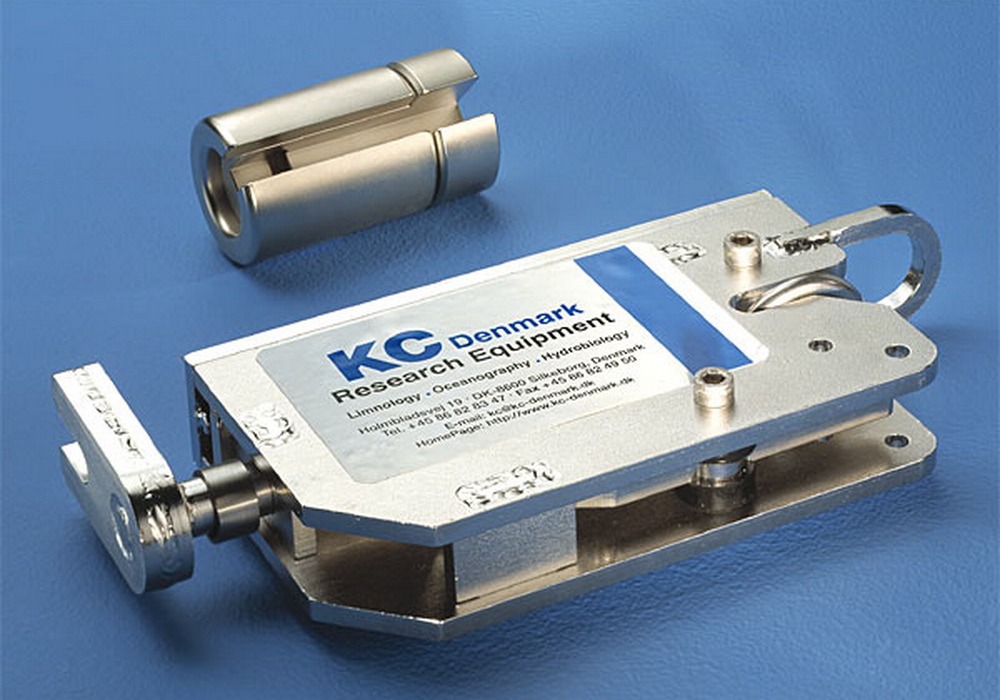

    Nansen release mechanism

    Optional mechanism for closing the net using a 0.8 kg drop messenger.

  • # 23.600

    Drop messenger

    0.8 kg messenger for triggering Nansen release mechanism.
