WP3 net Ø113 cm

Product #: 23.250

Large WP3 plankton net with Ø113 cm mouth (1.0 m² area), made of AISI 316 stainless steel and Monodur Nytal netting for quantitative plankton sampling.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 17 Wp 3 Net 1 F 1000 685 1
Imgi 17 Wp 3 Net 1 F 1000 685 1
Imgi 17 Wp 3 Net 1 F 1000 685 1
Imgi 19 23.200 Net Bucket 1000 700 F 1
Imgi 19 23.200 Net Bucket 1000 700 F 1
Imgi 20 23.200 Net Bucket 9 Lead Weights F 1000 700 1
Imgi 20 23.200 Net Bucket 9 Lead Weights F 1000 700 1
Imgi 21 23.250 Collecting Bottle 1000 700 F 1
Imgi 21 23.250 Collecting Bottle 1000 700 F 1
Imgi 18 23.100 Wp 2 Net F Txt 1000 1884
Imgi 18 23.100 Wp 2 Net F Txt 1000 1884
Imgi 22 23.250 Collecting Bucket Dis F 1000 700 1
Imgi 22 23.250 Collecting Bucket Dis F 1000 700 1
Imgi 23 23.140 Mounted On The Net F 1000 700 1
Imgi 23 23.140 Mounted On The Net F 1000 700 1
Imgi 24 23.050 Nansen Releaser 1000 700 F 1
Imgi 24 23.050 Nansen Releaser 1000 700 F 1
Imgi 25 23.090 Flow Meter F 1000 700 1
Imgi 25 23.090 Flow Meter F 1000 700 1

About

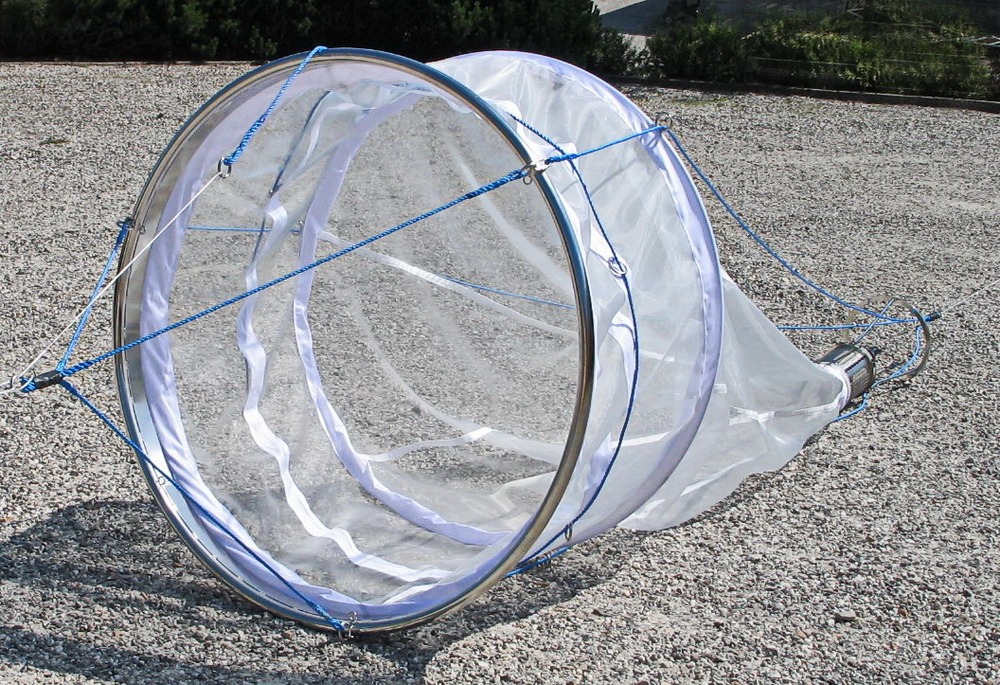

The WP3 plankton net Ø113 cm is designed for quantitative plankton sampling in accordance with international standards. It is similar to the WP2 model but larger, offering a mouth opening of 1.0 m². The net is constructed from AISI 316 stainless steel and fitted with a conical Monodur Nytal (Nylon) net bag, 200 cm long, with a standard 1000 µm mesh size (other sizes available on request; minimum recommended 200 µm). The WP3 is equipped with loops for optional digital flow meter and Nansen release mechanism for controlled depth sampling.

Contact us regarding this product

Features

Highlighted features for WP3 net Ø113 cm

01
Standardized WP3 construction
Follows the international WP3 net standard with 1.0 m² mouth area and precision geometry.
02
Robust stainless steel frame
AISI 316 stainless steel construction for long-term corrosion resistance.
03
Modular two-part net design
Cylindrical and conical net sections for improved hydrodynamics and easy replacement.
04
Flow meter and closing system ready
Supports KC Denmark digital flow meters and Nansen release mechanism for depth-specific sampling.

Specifications

WP3 net Ø113 cm Specifications

Mouth diameter
Ø113 cm (area 1.0 m²)
Net length
200 cm
Mesh size
1000 µm (standard); other sizes on request, minimum 200 µm recommended
Material (net)
Monodur Nytal (Nylon)
Material (frame and fixtures)
AISI 316 stainless steel
Bridle ropes
3 pcs Ø6 mm Nylon, length 85 cm

Standard Delivery Content

The contents of a standard order of WP3 net Ø113 cm

  • Three nylon lines Ø6 mm with bridle and snap hook, length 85 cm
  • Ring of AISI 316 stainless steel tubing with 3 loops for bridle and weight lines and 2 loops for optional digital counter
  • AISI 316 stainless steel clamping fixture
  • Monodur Nytal (Nylon) net, 1000 µm mesh, conical, length 200 cm (two-part design)

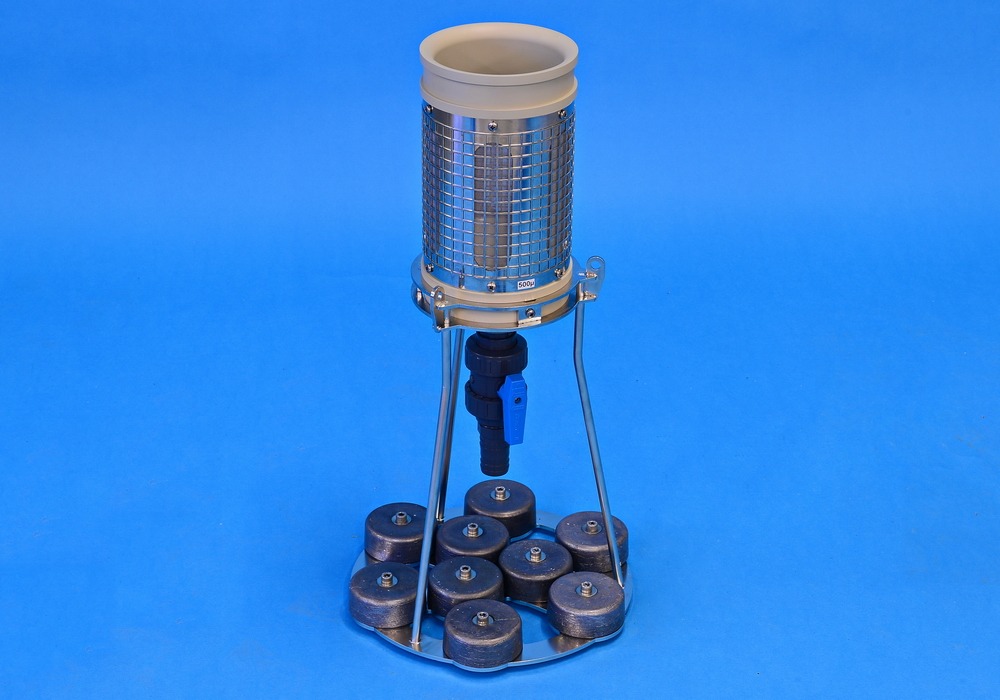

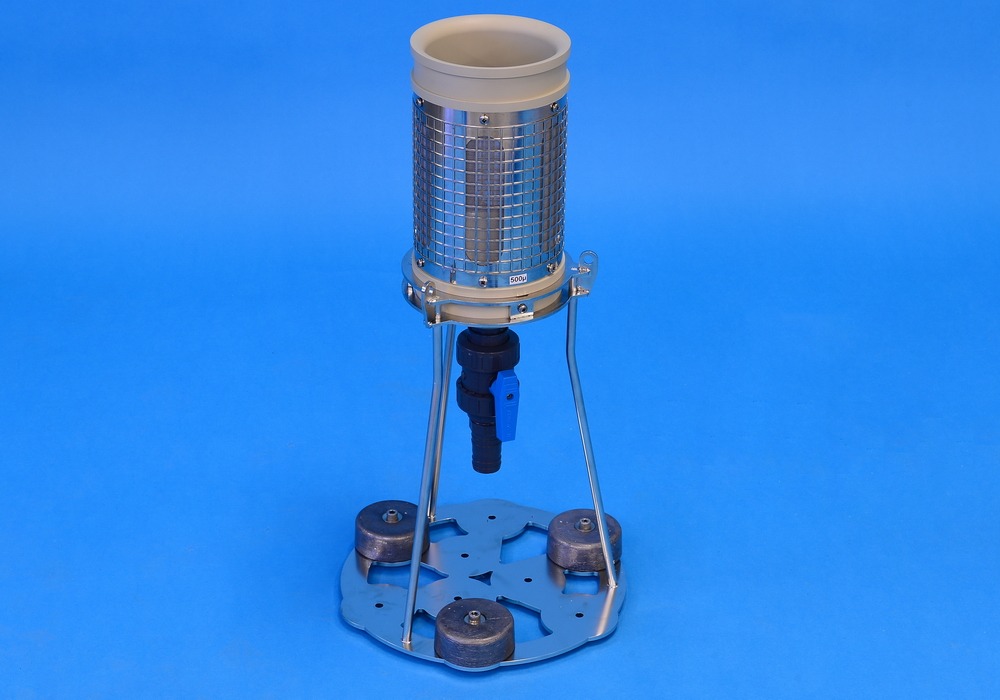

  • Sample cylinder with stainless steel sieve-covered side windows

Application

Used for large-volume plankton sampling in oceanographic, limnological, and hydrobiological research, allowing quantitative measurements and integration with flow meters or closing mechanisms.

Do you have application questions?

Accessories

See all Accessories

Accessories for WP3 net Ø113 cm

  • # 23.101

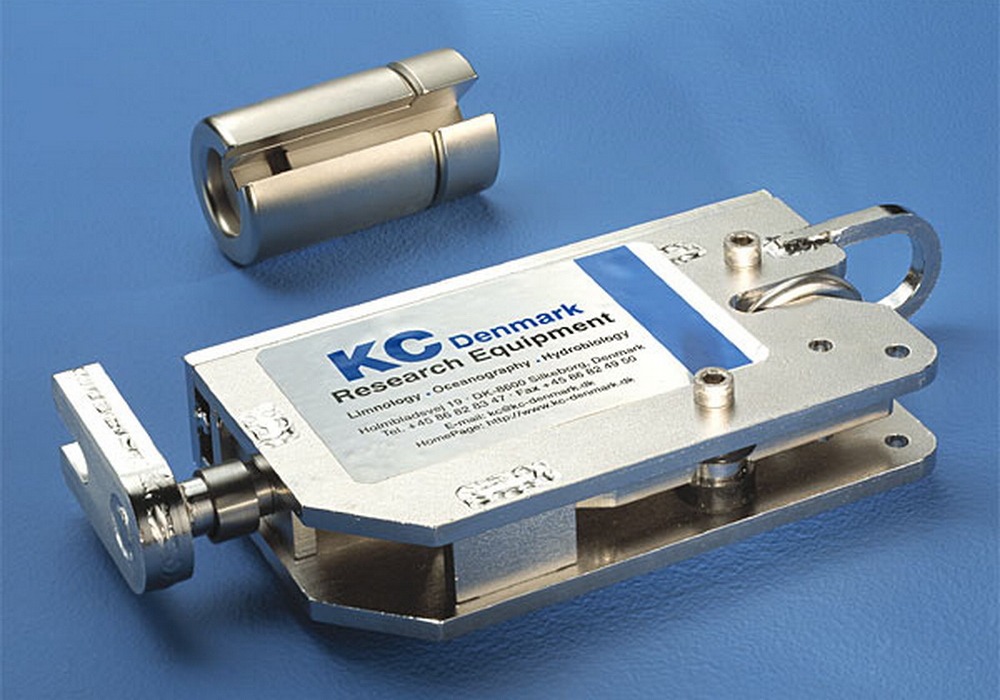

    Nansen release mechanism

    Optional mechanism for closing the WP3 net using a 0.8 kg drop messenger.

  • # 23.600

    Drop messenger

    0.8 kg drop messenger used with Nansen release mechanism.

  • # 23.090

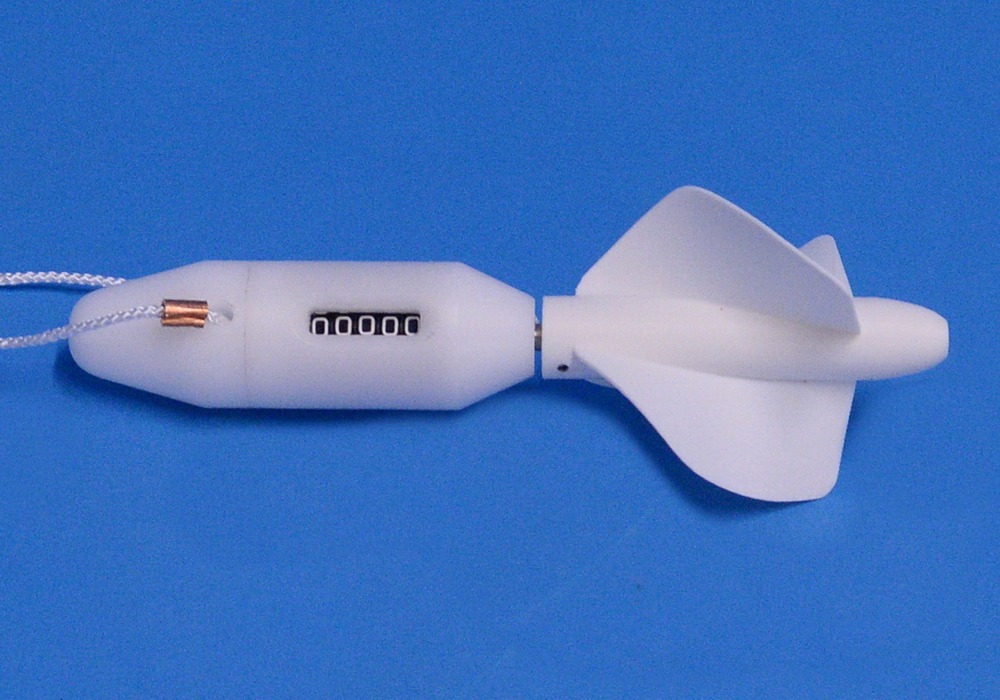

    Digital flow meter (no back-run stop)

    Optional flow meter for measuring the volume of filtered water.

  • # 23.091

    Digital flow meter (with back-run stop)

    Optional flow meter with back-run stop feature.
