Plankton pump for 6000 m depth
Deep-sea plankton pump constructed from AISI 316 stainless steel, depth-rated for 6000 meters, with a 13,500 L/hour flow capacity and quick-change bottle system.
Explore product sections
About

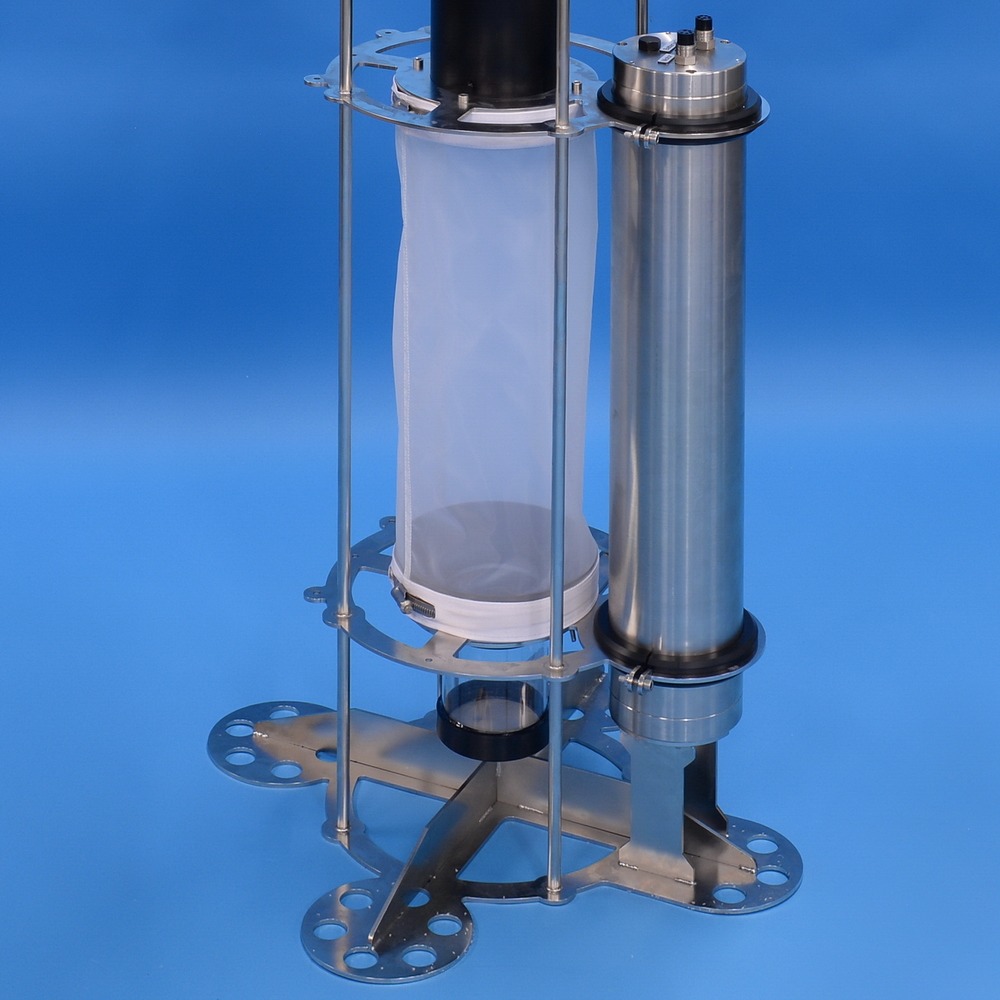

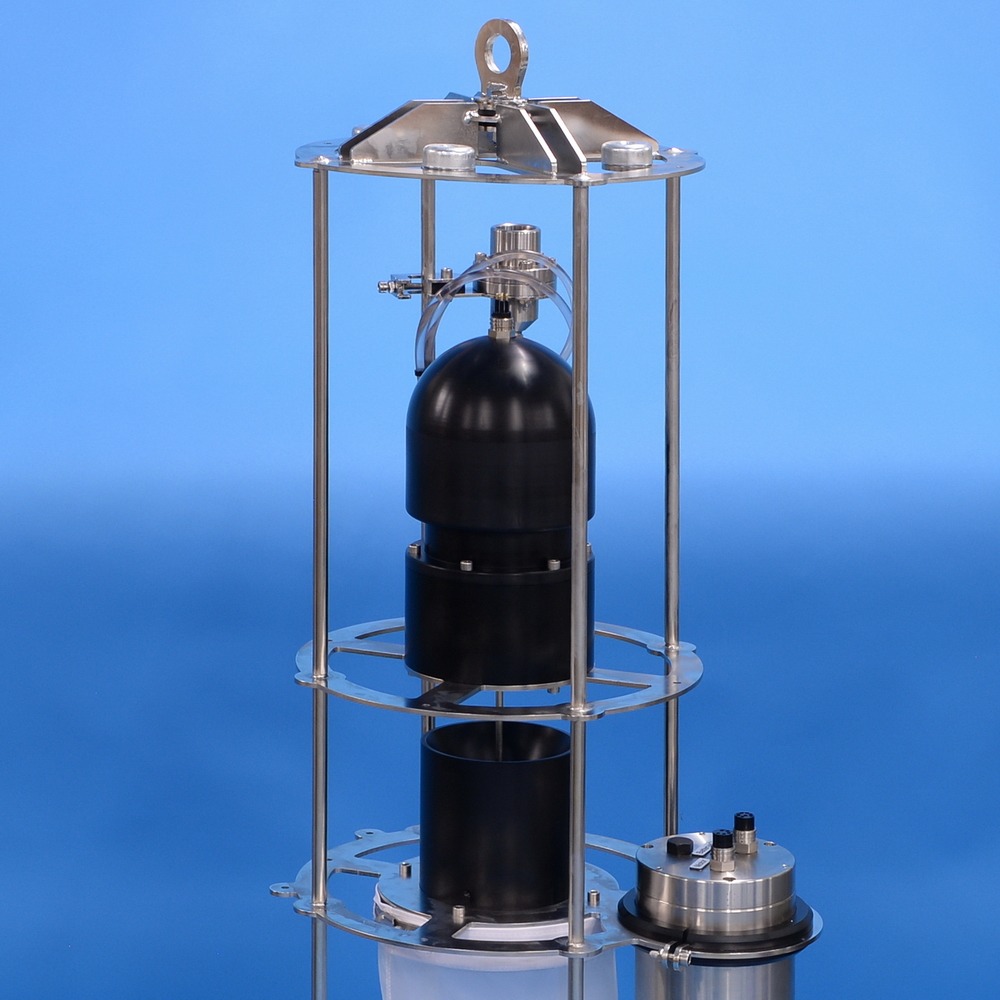

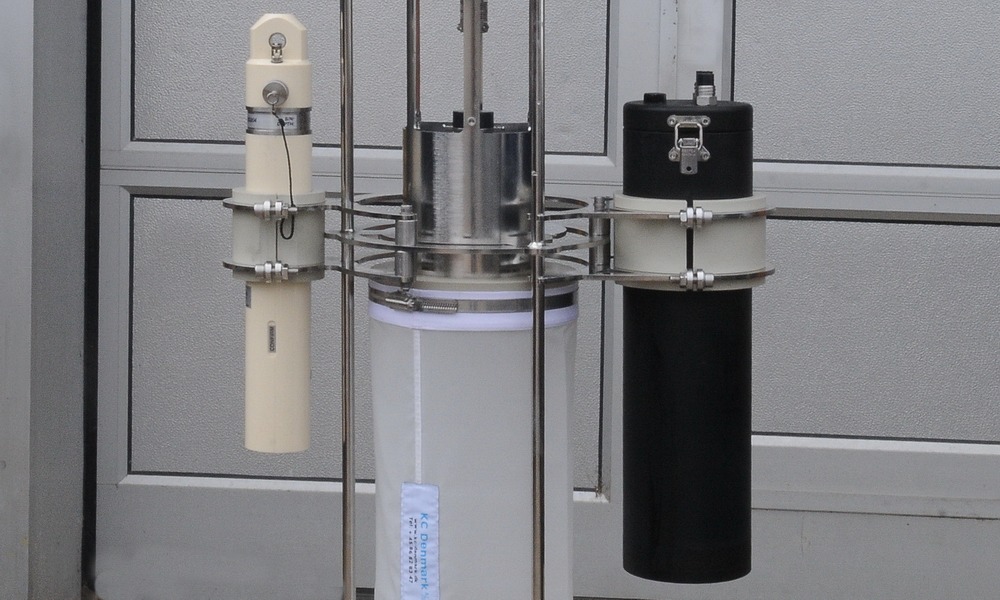

The KC Denmark plankton pump for 6000 m depth is designed for vertical plankton sampling in extreme ocean depths. Built from AISI 316 stainless steel, the system operates on 24 V DC power and can pump up to 13,500 liters per hour. It is equipped with a 60 µm net bag as standard (other mesh sizes available upon request) and includes a quick-change system for collecting bottles, enabling rapid sample exchange. The pump supports the optional KC Denmark digital flow meter (23.095) for monitoring water volume and can be powered by a pressure-stable battery cylinder rated to 4000 m (100.217) or 6000 m (100.226).
Features
Highlighted features for Plankton pump for 6000 m depth
Specifications
Plankton pump for 6000 m depth Specifications
- Maximum operating depth
- 6000 m
- Pump capacity
- 13,500 L/hour
- Power supply
- 24 V DC
- Material
- AISI 316 stainless steel
- Height
- 1510 mm
- Width (incl. battery cylinder)
- 600 mm
- Net bag diameter
- Ø201 mm
- Net bag length
- 540 mm
- Filtration area
- 3000 cm²
- Weight (without battery cylinder)
- 24 kg
- Standard mesh size
- 60 µm
- Optional battery cylinders
- 100.217 (4000 m), 100.226 (6000 m)
Standard Delivery Content
The contents of a standard order of Plankton pump for 6000 m depth
- Plankton pump with 60 µm net bag
- Quick-change bottle system
- Support for digital flow meter (23.095)
Application
Used for deep-sea plankton collection at depths up to 6000 meters. Ideal for oceanographic research requiring precise and repeatable plankton sampling in high-pressure environments.
Accessories
Accessories for Plankton pump for 6000 m depth
-
# 100.217

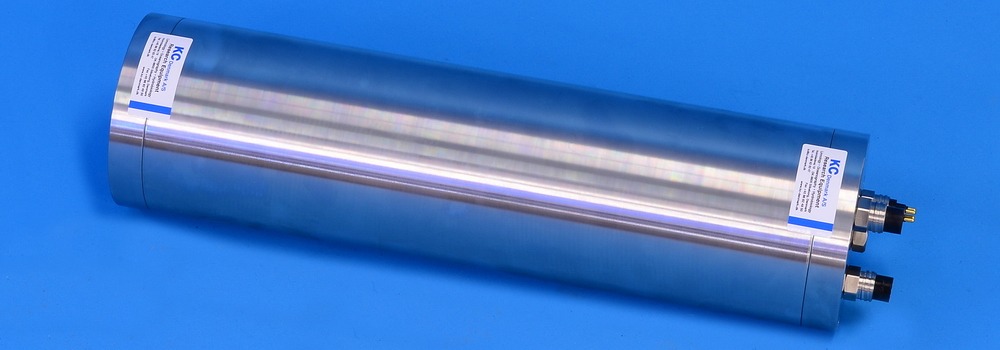

Pressure-stable battery cylinder 4000 m
Battery cylinder for powering the pump down to 4000 m.
-
# 100.226
Pressure-stable battery cylinder 6000 m
Battery cylinder for powering the pump down to 6000 m.
-

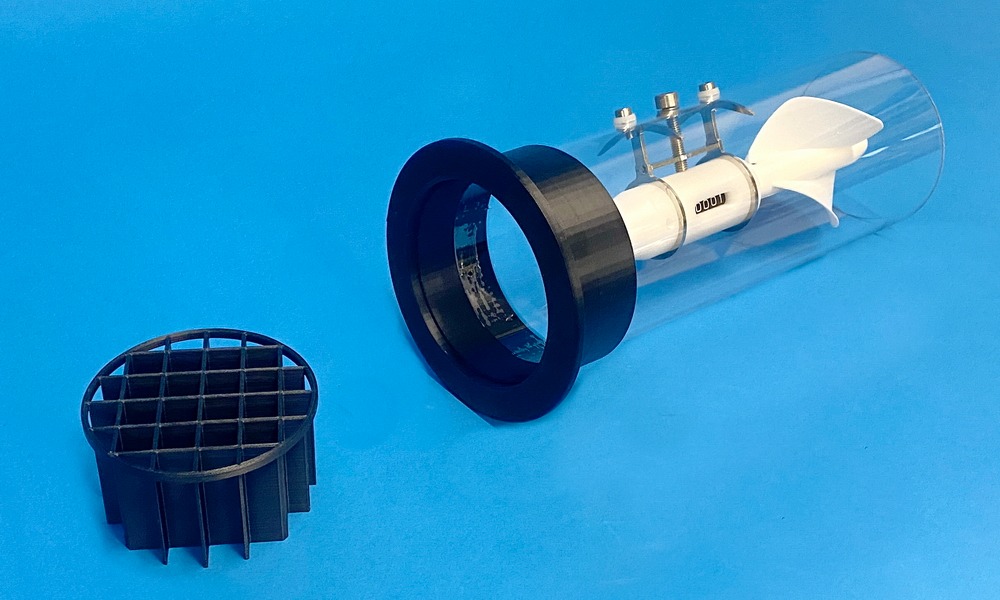

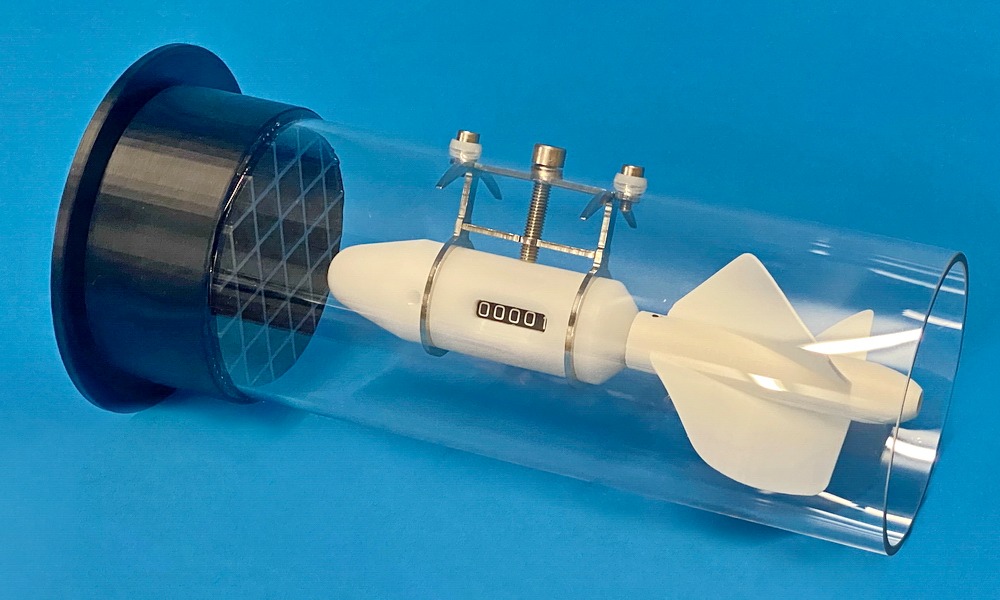

# 23.095

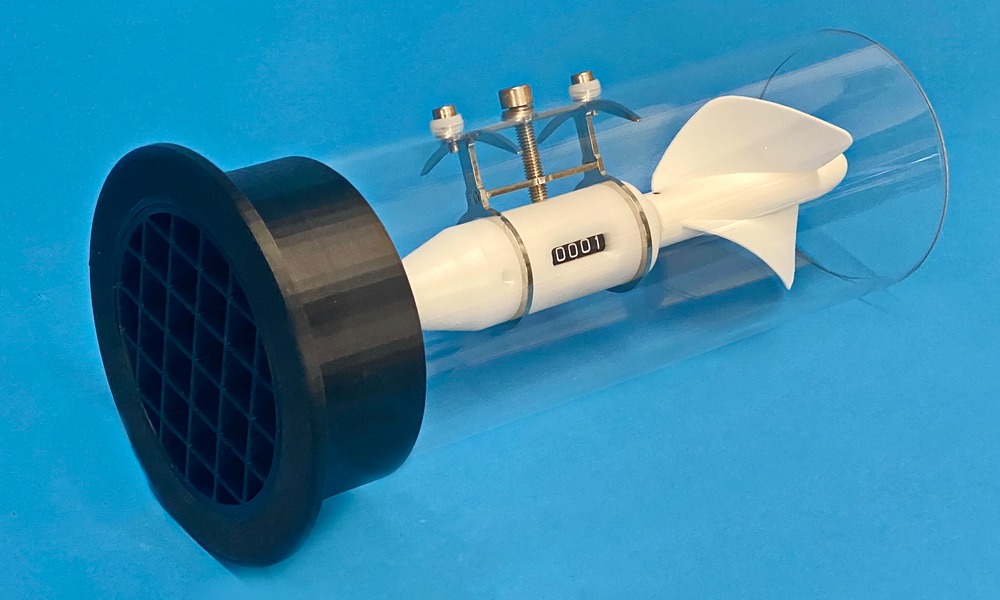

Digital flow meter support
Optional support for flow meter integration.
-
# 23.592
Collecting bottle (quick-change compatible)
Spare collecting bottle for plankton pump.
-
# 23.590A
Net bag replacement
Replacement Monodur Nytal net bag, available in multiple mesh sizes.
