Pressure stable battery cylinder for 6000 meters

Product #: 100.226

High-pressure resistant battery cylinder rated for 6000 m depth, providing 24 V DC/10 Ah power for deep-sea equipment such as plankton pumps and lander systems.

Explore product sections

About Features Specifications Standard Contents Application Accessories

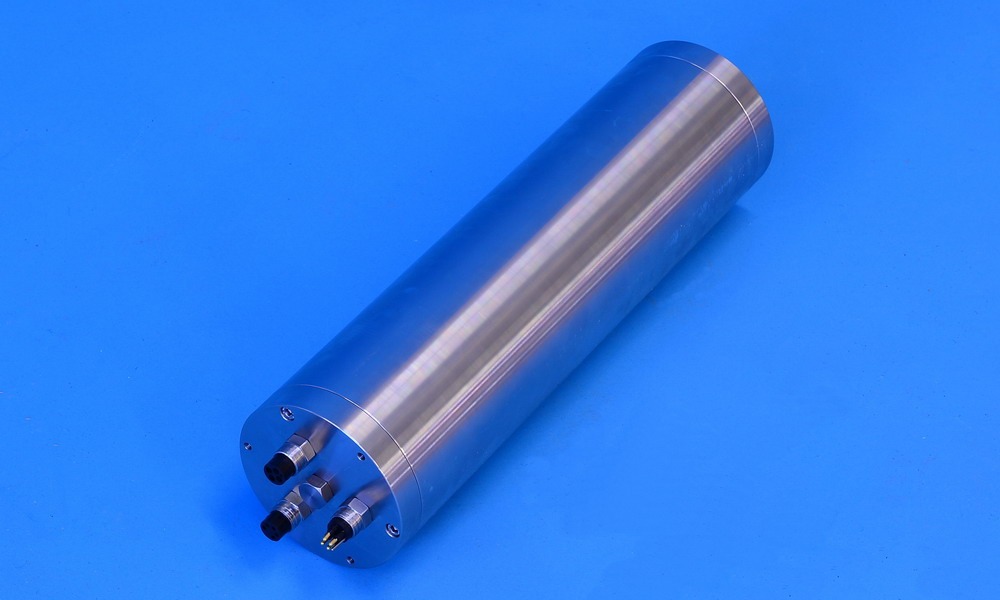

Imgi 15 Battery Cylinder 1000
Imgi 15 Battery Cylinder 1000
Imgi 15 Battery Cylinder 1000

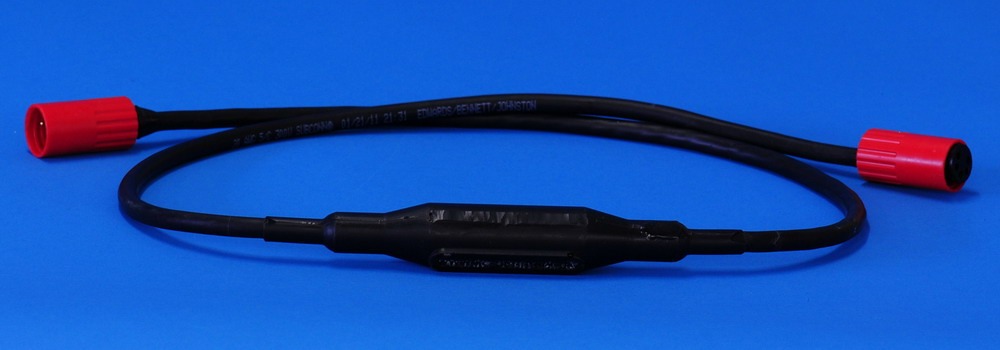

Imgi 20 100.230 Battery Cabel 1000 350
Imgi 20 100.230 Battery Cabel 1000 350

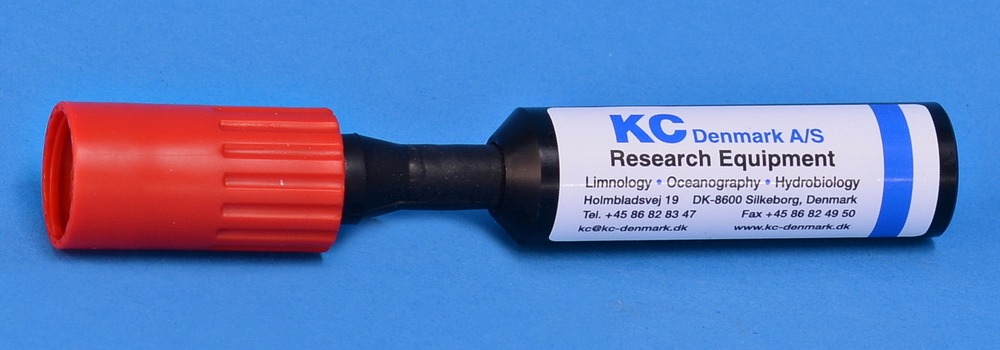

Imgi 19 100.234 Programming Plug F 1000 350 1
Imgi 19 100.234 Programming Plug F 1000 350 1

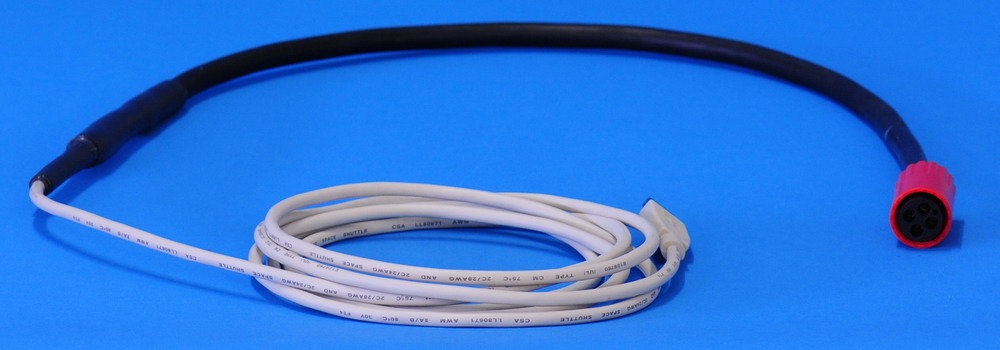

Imgi 22 Usb Cable 1000 350
Imgi 22 Usb Cable 1000 350

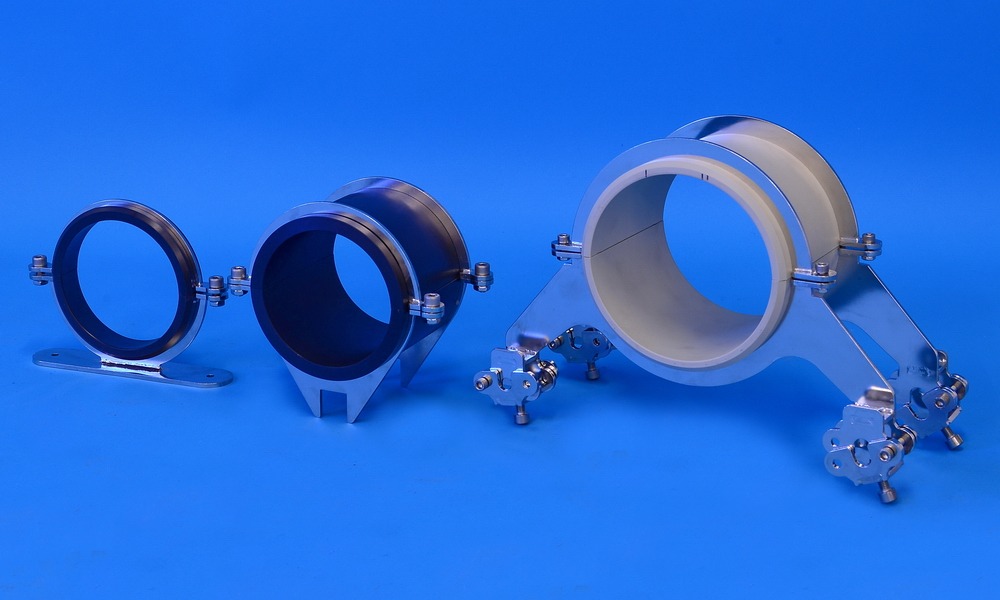

Imgi 18 Brackets Various F 1000 600 1
Imgi 18 Brackets Various F 1000 600 1

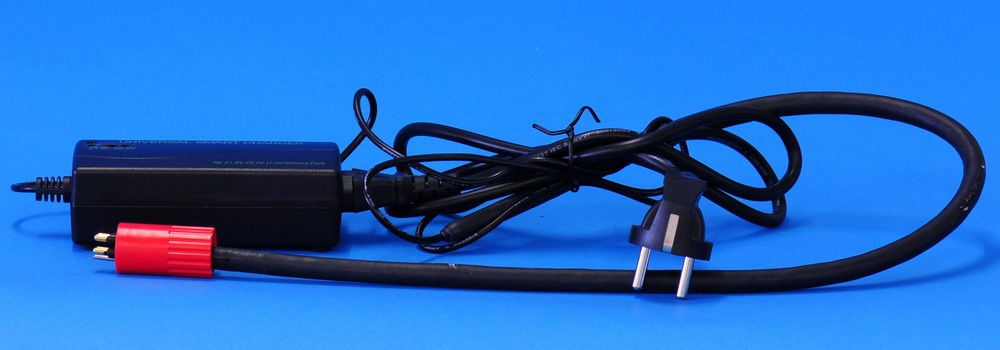

Imgi 21 100.235 Battery Charger 1000 350
Imgi 21 100.235 Battery Charger 1000 350

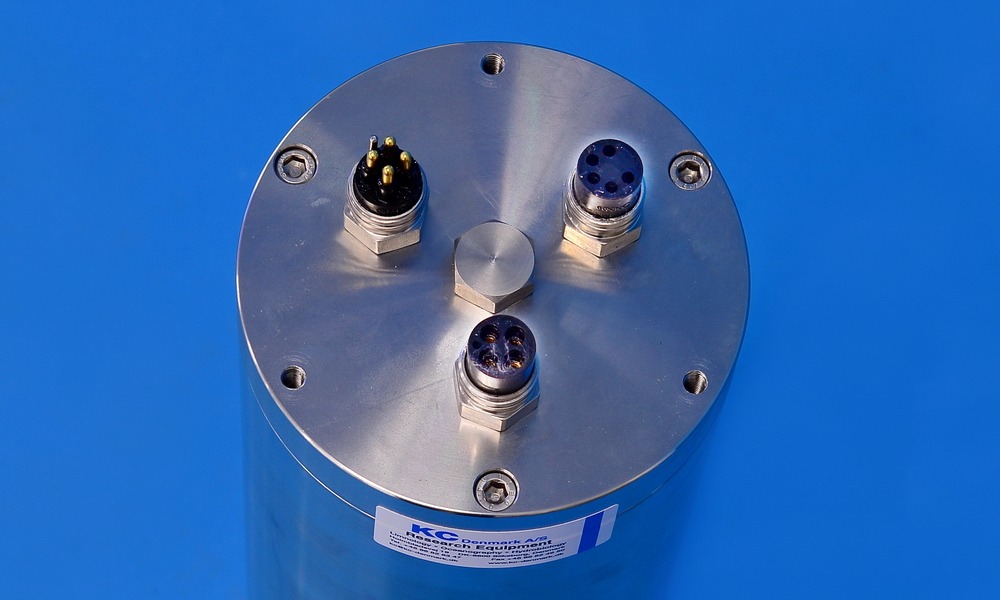

Imgi 17 100.217 Battery Cylinder Subconn F 1000 600 1
Imgi 17 100.217 Battery Cylinder Subconn F 1000 600 1

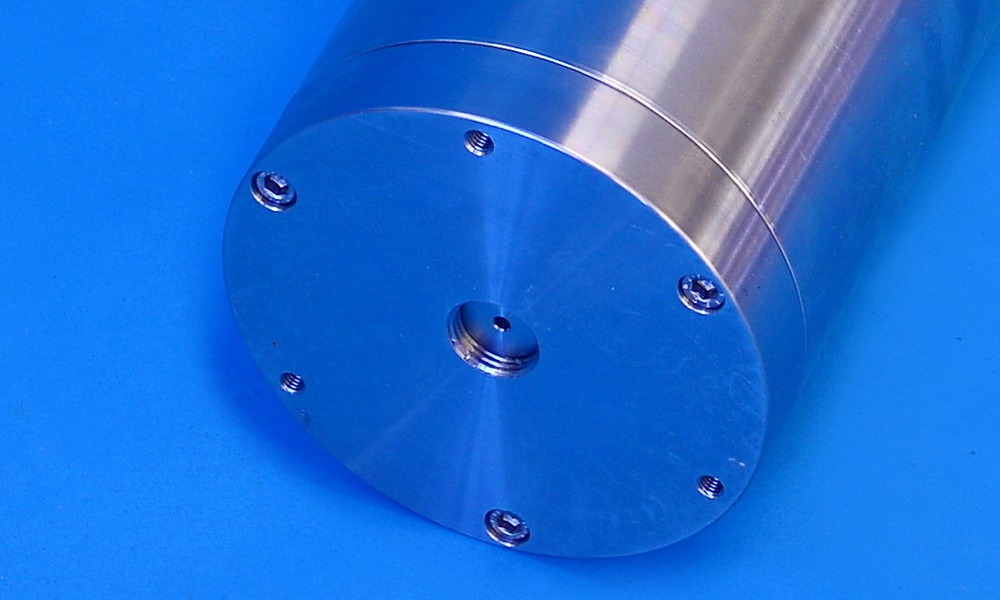

Imgi 16 Pressure Transmitter F 1000 600 1
Imgi 16 Pressure Transmitter F 1000 600 1

About

The KC Denmark pressure-stable battery cylinder (model 100.226) is designed for powering oceanographic instruments at depths up to 6000 meters. Built from AISI 316 stainless steel, it houses rechargeable batteries and can accommodate a programmable timer (model 60.010, USB or RS-485 interface) and optional pressure transmitter. The cylinder features three Subconn connectors for USB/RS-485 communication, motor output, and starter/charger input. This robust power supply is compatible with a range of KC Denmark equipment, including Niskin rosette racks, sediment trap stations, plankton pumps, multi water samplers, and autonomous lander systems. The 4000 m variant (model 100.217) is also available for shallower deployments.

Contact us regarding this product

Features

Highlighted features for Pressure stable battery cylinder for 6000 meters

01
Pressure-resistant deep-sea design
Engineered to withstand hydrostatic pressure at 6000 m depth using AISI 316 stainless steel construction.
02
Integrated power and communication
Includes 3 Subconn connectors for USB/RS-485 communication, motor connection, and charger interface.
03
Modular compatibility
Supports optional timer (60.010) and pressure transmitter for automated control and monitoring.
04
Versatile instrument support
Compatible with KC Denmark plankton pumps, Niskin rosettes, sediment traps, and lander systems.

Specifications

Pressure stable battery cylinder for 6000 meters Specifications

Model
100.226
Maximum operating depth
6000 m
Length (incl. Subconn)
690 mm
Outer diameter
139 mm
Inner diameter
90 mm
Weight (incl. batteries)
55 kg
Material
AISI 316 stainless steel
Voltage
24 V DC
Capacity
10 Ah

Standard Delivery Content

The contents of a standard order of Pressure stable battery cylinder for 6000 meters

  • Pressure-stable battery cylinder 100.226 rated to 6000 m
  • 3 × Subconn connectors (USB/RS-485, motor cable, starter/charger)
  • Internal battery pack, 24 V DC / 10 Ah
  • Housing for optional programmable timer 60.010
  • Housing for optional pressure transmitter

Application

Used to supply autonomous power to deep-sea research instruments down to 6000 m. Ideal for long-term deployments of plankton pumps, lander systems, sediment samplers, and water samplers requiring reliable 24 V DC operation.

Do you have application questions?

Accessories

See all Accessories

Accessories for Pressure stable battery cylinder for 6000 meters

  • # 60.010

    Programmable timer

    USB or RS-485 programmable timer for automation and power management.

  • # __zz.mis-press

    Pressure transmitter

    Optional depth and pressure sensor compatible with battery cylinder.

  • # 100.217

    Battery cylinder for 4000 m

    Shallower variant rated to 4000 m depth, same interface layout and voltage.
