Various battery cylinders
Collection of battery cylinders and corresponding brackets for powering underwater equipment at various depths, including custom designs upon request.
Explore product sections
About
KC Denmark offers a wide range of battery cylinders and mounting brackets designed for underwater research equipment. These include standard designs as well as models tailored for specific instruments. The cylinders provide reliable 24 V DC power for cameras, lights, sensors, and other subsea tools. Available models cover different operational depths, with specific versions rated up to 500 m and others designed for deep-sea use (4000–6000 m). Customized solutions can be provided based on project requirements.
Features
Highlighted features for Various battery cylinders
Specifications
Various battery cylinders Specifications
- Operating depth range

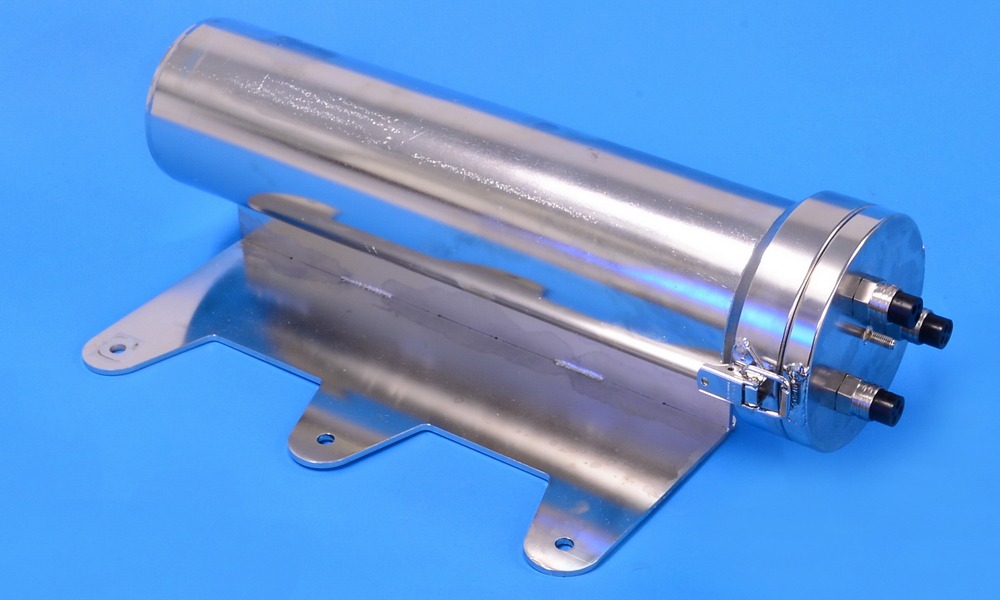

- up to 500 m (standard models)
- Available deep-sea models
- 4000–6000 m (see model 100.226)
- Material
- AISI 316 stainless steel or hard-anodized aluminum
- Output voltage
- 24 V DC
- Power capacity
- typically 10 Ah or customized
Standard Delivery Content
The contents of a standard order of Various battery cylinders

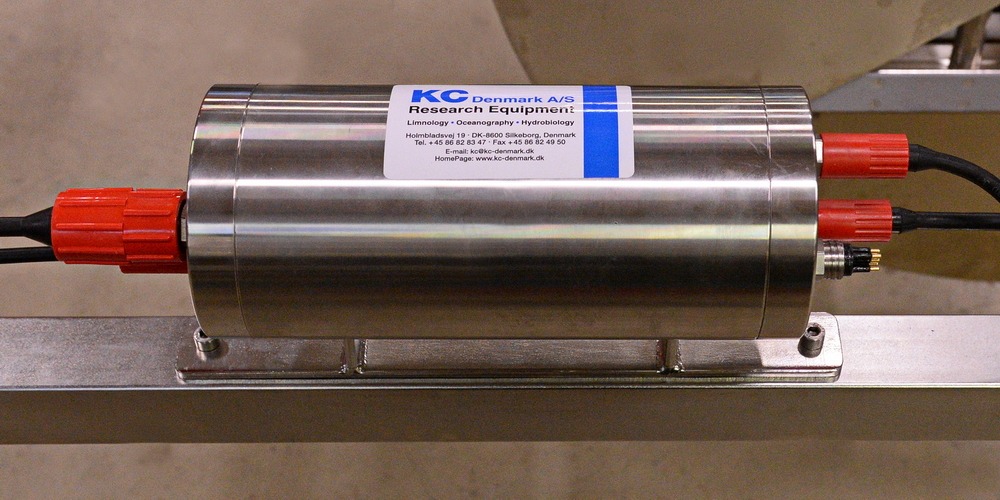

- Battery cylinder with marine-grade connectors

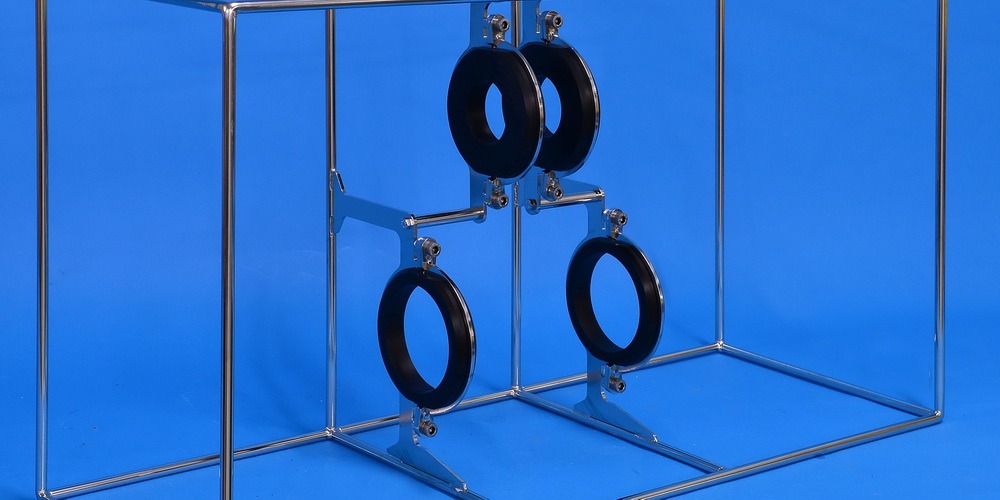

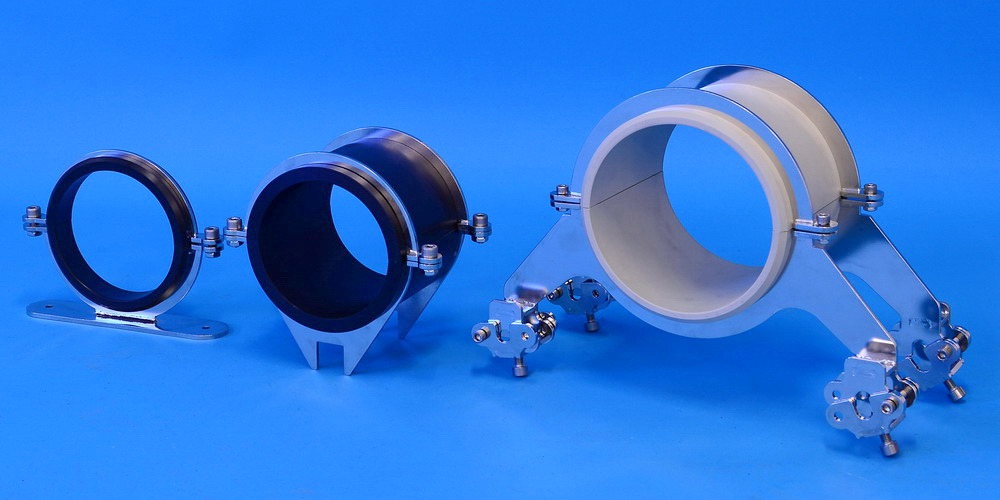

- Mounting bracket or frame (depending on model)
- Power and communication cables
Application
Suitable for oceanographic, limnological, and hydrobiological applications requiring autonomous power supply to underwater instruments such as cameras, lights, and sensors at various depths.
Accessories
Accessories for Various battery cylinders
-
# 100.226

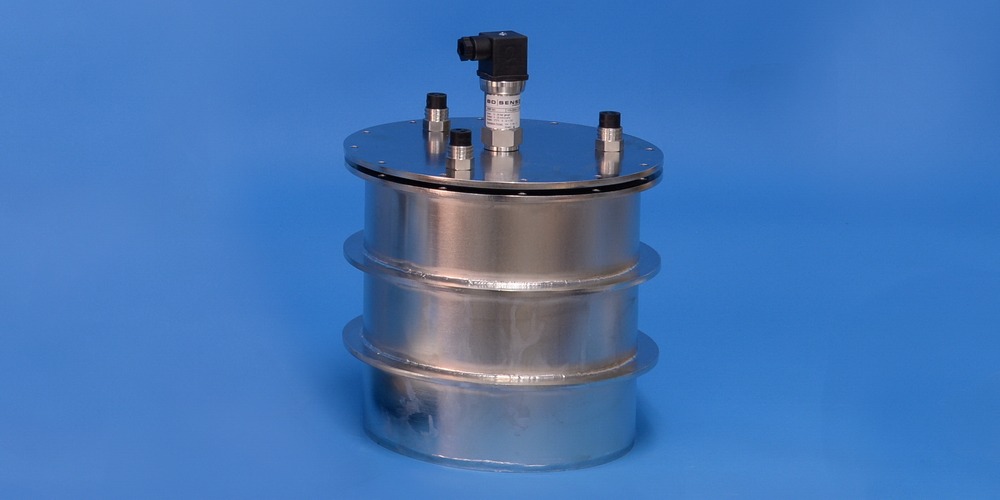

Pressure stable battery cylinder for 6000 meters
High-pressure rated battery cylinder for powering deep-sea instruments.
-
# 100.217
Pressure stable battery cylinder for 4000 meters
Shallower version of pressure-stable battery cylinder.
-

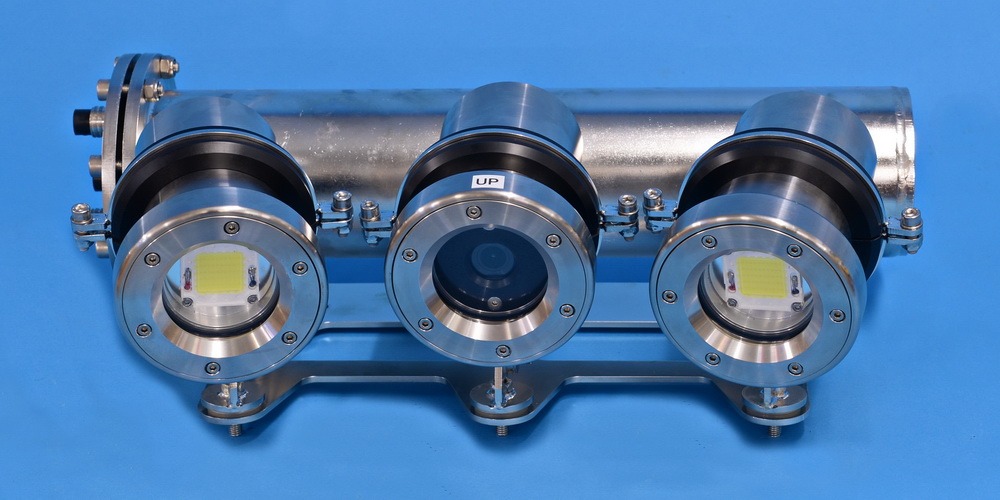

# 19.680Camera and light system
Camera and light unit compatible with battery cylinders.
