Niskin Mini Rosette 12 bottles

Product #: 60.060

Compact 12-bottle Niskin Mini Rosette rack made from AISI 316 stainless steel for non-metallic Niskin samplers up to 1 L, with motorized release and programmable trigger system.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 5 60.060 Mini Rosette Fa 1000 1000 1 450X450
Imgi 5 60.060 Mini Rosette Fa 1000 1000 1 450X450
Imgi 5 60.060 Mini Rosette Fa 1000 1000 1 450X450
Imgi 12 Bottle 600 Ml F 1000 300 1
Imgi 12 Bottle 600 Ml F 1000 300 1
Imgi 13 Battery And Tablet Fa 1000 400 1
Imgi 13 Battery And Tablet Fa 1000 400 1
Imgi 14 Setup 1000 700A
Imgi 14 Setup 1000 700A

About

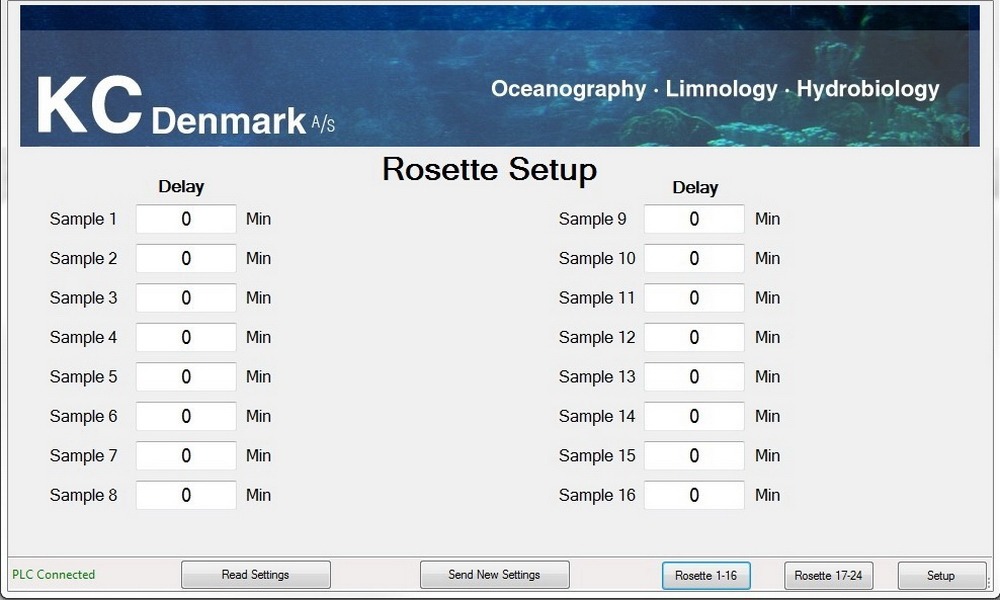

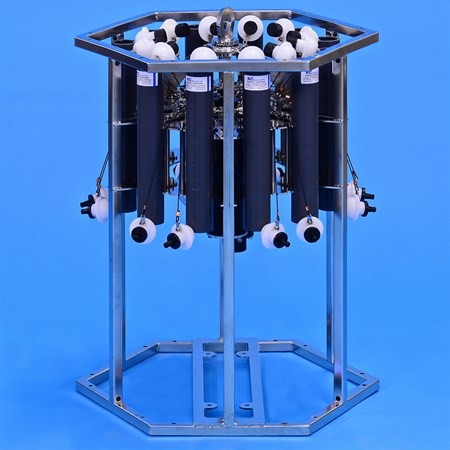

The KC Denmark Niskin Mini Rosette (model 60.060) is a compact water sampling rack designed for up to 12 non-metallic Niskin bottles, each with capacities of 300, 600, or 1000 ml. The rack is made entirely from AISI 316 stainless steel and features a motor-driven release system powered by 24 V DC. The electronic control system includes a sleep mode, enabling deployments of up to 12 months with the standard battery. Longer immersion times are supported using larger battery cylinders. The system supports manual triggering, time-lapse triggering, and optional pressure activation. The control software provides sampler status, battery voltage, and motor current monitoring. The design also allows mounting of a CTD rack for integrated water quality measurements.

Contact us regarding this product

Features

Highlighted features for Niskin Mini Rosette 12 bottles

01
Motor-driven release system
Automated 24 V DC motor mechanism allows precise control of sampler activation.
02
Programmable triggering
Supports manual, time-lapse, or pressure-activated triggering options.
03
Non-metallic Niskin bottles
All bottles are metal-free internally and equipped with seawater-resistant Para/Latex closure bands.
04
CTD rack compatibility
Provides space for mounting a CTD rack for conductivity, temperature, and depth sensors.
05
Long deployment capability
Sleep mode electronics enable up to 12 months of operation on standard battery.

Specifications

Niskin Mini Rosette 12 bottles Specifications

Rack capacity
12 Niskin bottles (300–1000 ml each)
Material
AISI 316 stainless steel
Power supply
24 V DC
Deployment duration
up to 12 months with standard battery
Depth rating
up to 6000 m (with battery 100.226); 4000 m (with battery 100.217)
Dimensions (without bottles and battery)
Ø57 cm × 75 cm height
Weight (without bottles and battery)
31 kg

Standard Delivery Content

The contents of a standard order of Niskin Mini Rosette 12 bottles

  • Rosette rack for 12 Niskin bottles (stainless steel construction)
  • Electronic control system with 24 V DC motor
  • Sleep mode functionality for long-term deployments

Application

Used for multi-depth water sampling in oceanographic, limnological, and hydrobiological research. Suitable for autonomous long-term deployments or controlled operations via timer or pressure trigger.

Do you have application questions?

Accessories

See all Accessories

Accessories for Niskin Mini Rosette 12 bottles

  • # 100.217

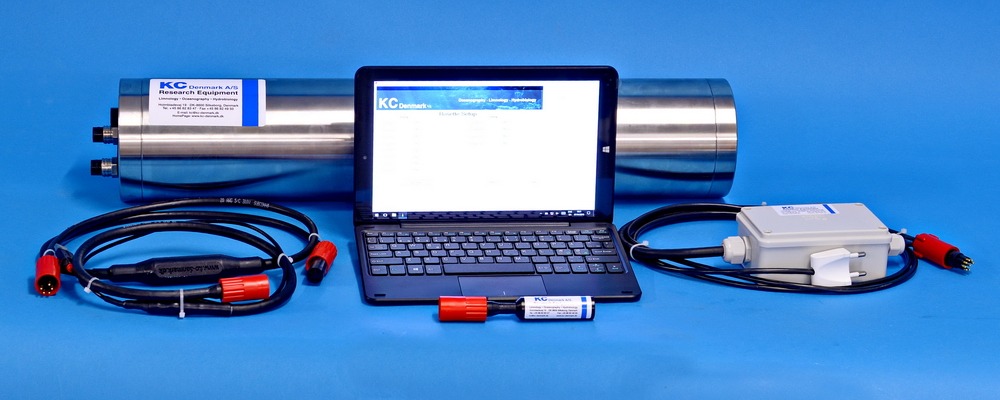

    Pressure stable battery cylinder for 4000 m

    Battery cylinder for powering rosette up to 4000 m depth.

  • # 100.226

    Pressure stable battery cylinder for 6000 m

    High-pressure battery cylinder for operations up to 6000 m depth.

  • # 60.010

    Programmable timer

    Optional timer module with USB or RS-485 communication for autonomous control.

  • # 54.000

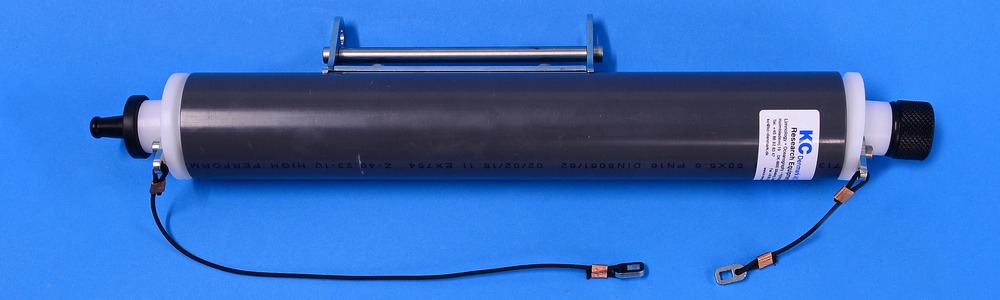

    Niskin water samplers (non-metallic)

    Available in 300, 600, and 1000 ml volumes for use with mini rosette.
