Rack for mounting 2 pcs. Niskin bottles
Rack made of AISI 316 stainless steel for mounting two Niskin bottles (1.7–12 L), designed for simultaneous bottle release upon seabed contact.
Explore product sections
About

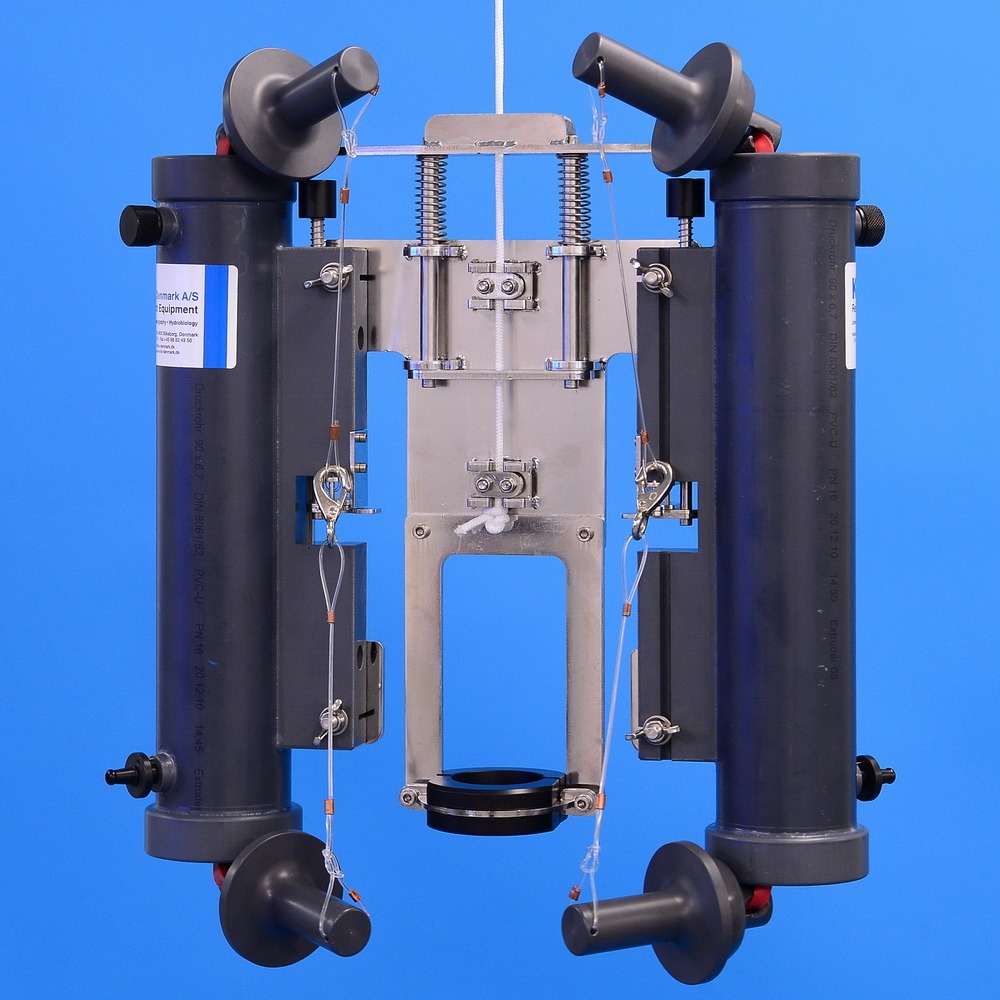

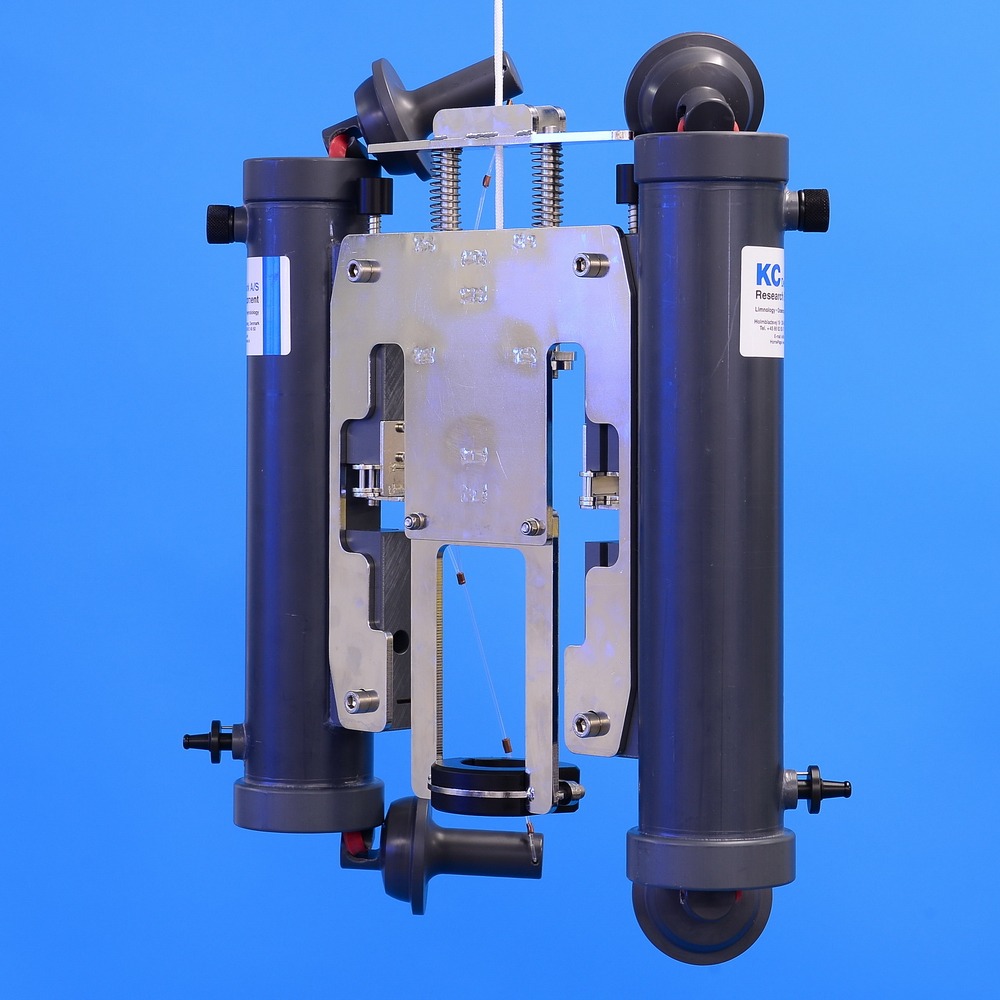

The KC Denmark Rack for mounting two Niskin bottles (model 60.081) is designed for vertical water sampling applications. The rack holds two Niskin bottles of the 61.xxx series, each ranging in volume from 1.7 to 12 liters. It is constructed from AISI 316 stainless steel for maximum corrosion resistance in marine environments. The system is designed so both bottles are triggered simultaneously when the footplate touches the seabed, allowing for synchronized sample collection. The rack provides a sturdy and reliable platform for dual-bottle deployments and is compatible with standard KC Denmark Niskin bottles.
Features
Highlighted features for Rack for mounting 2 pcs. Niskin bottles
Specifications
Rack for mounting 2 pcs. Niskin bottles Specifications
- Capacity
- 2 Niskin bottles (1.7–12 L each)
- Compatible bottle series
- 61.xxx
- Material
- AISI 316 stainless steel
- Operation
- simultaneous release when footplate contacts seabed
- Dimensions (H × L × W)
- 172/155 × 29 × 15 cm (excluding bottles)
- Weight
- 10.7 kg (excluding bottles)
Standard Delivery Content
The contents of a standard order of Rack for mounting 2 pcs. Niskin bottles
- Rack for two Niskin bottles made from AISI 316 stainless steel
- Integrated footplate for seabed activation
Application
Used for collecting water samples at the seabed in oceanographic and limnological research, providing simultaneous activation of two Niskin bottles for paired sampling.
Accessories
Accessories for Rack for mounting 2 pcs. Niskin bottles
-
# 61.xxx
Niskin Water Sampler 1.7 to 12 L
Compatible non-metallic bottles for installation on the rack.
