Rosette station 12 bottles

Product #: 60.000

Stainless steel rosette rack for 12 Niskin water samplers with motor-driven release, optional programmable and pressure-triggered control, and compatibility with CTD systems up to 6000 m depth.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 10 60.000 Niskin Rosette 1000 1200 F 1
Imgi 10 60.000 Niskin Rosette 1000 1200 F 1
Imgi 10 60.000 Niskin Rosette 1000 1200 F 1
Imgi 11 Battery And Tablet Fa 1000 400 1
Imgi 11 Battery And Tablet Fa 1000 400 1

About

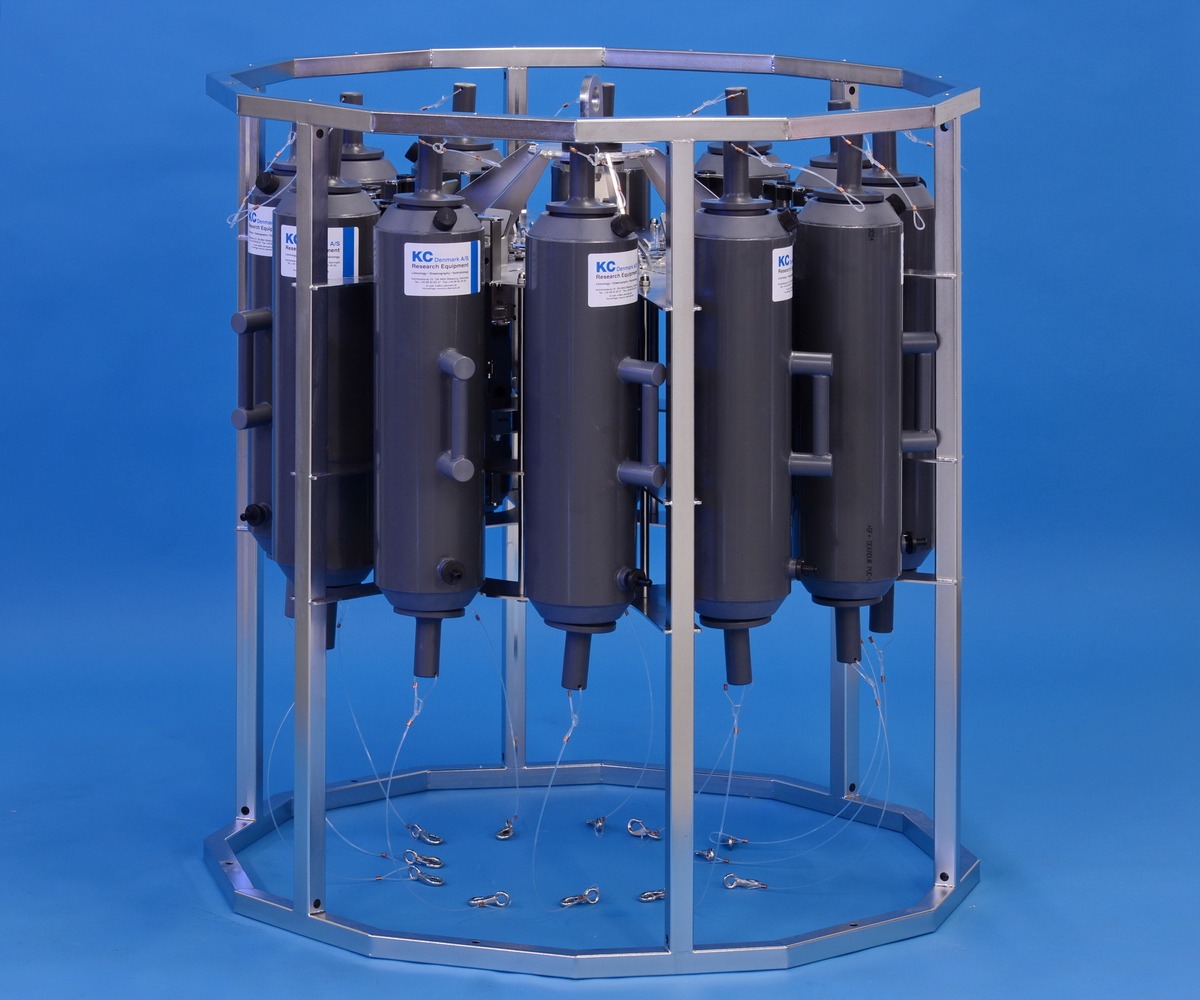

The KC Denmark Rosette Station 12 Bottles (model 60.000) is designed for mounting twelve Niskin water samplers on a durable AISI 316 stainless steel frame. Each Niskin bottle features a non-metallic PVC tube interior, Delrin stopcock, and Para/Latex end closure band to ensure seawater resistance. The rosette includes a 24 V DC motor-driven release system, which can operate manually, through a programmable time-lapsed trigger, or via pressure trigger. The integrated control software provides real-time information such as sampler status, motor current, and battery voltage. It also provides space for a CTD rack and an optional reversing thermometer assembly. The unit is depth-rated to 6000 m when used with battery 100.226 or to 4000 m with battery 100.217.

Contact us regarding this product

Features

Highlighted features for Rosette station 12 bottles

01
Motor-driven release system
Operated via a 24 V DC motor with options for manual, time-lapsed, or pressure-triggered control.
02

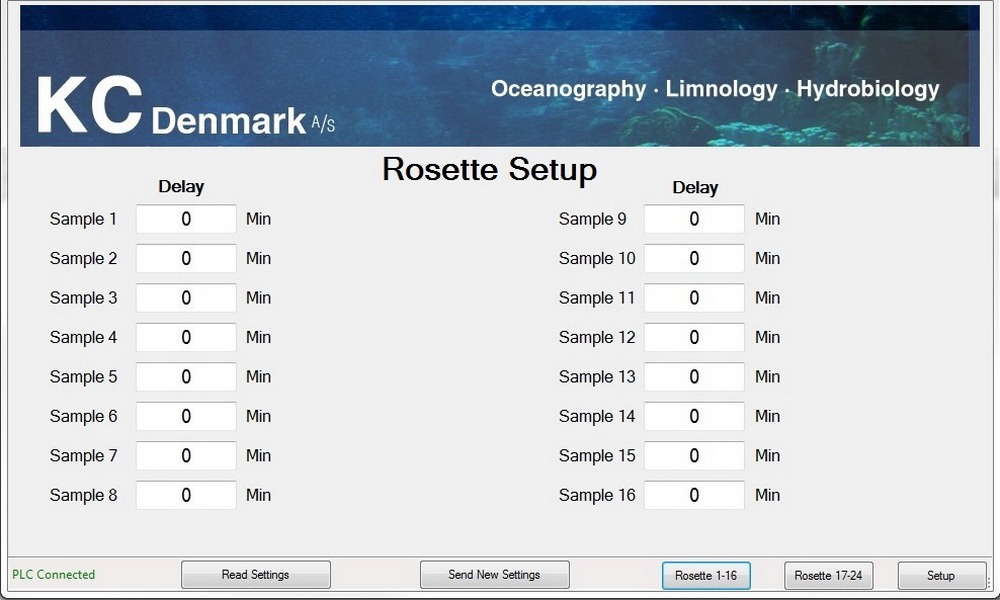

Software monitoring
Displays sampler status, battery voltage, and motor current during operation.
03
CTD integration ready
Rack design includes room for mounting a CTD rack for combined sampling and profiling.
04
Optional thermometer assembly
Can be fitted with a reversing thermometer for additional measurements.
05
Deep-water capable
Depth rated to 6000 m (with battery 100.226) and 4000 m (with battery 100.217).
06
Corrosion-resistant construction
Manufactured from AISI 316 stainless steel and non-metallic components for marine durability.

Specifications

Rosette station 12 bottles Specifications

Capacity
12 Niskin bottles (1.7–12 L each, series 61.xxx)
Material
AISI 316 stainless steel
Release system
Motor driven (24 Volt DC)
Control options
Manual, programmable (time-lapse), or pressure-triggered
Depth rating
6000 m (with battery 100.226) / 4000 m (with battery 100.217)
Recommended wire diameter
6 mm
Deployment duration
Up to 12 months with standard battery

Standard Delivery Content

The contents of a standard order of Rosette station 12 bottles

  • Rack for 12 Niskin bottles made from AISI 316 stainless steel
  • Motor-driven release system (24 V DC)
  • Electronics and control software for monitoring status, current, and voltage

Application

Used in deep-sea and oceanographic research for simultaneous or sequential collection of up to 12 discrete water samples. Compatible with CTD and auxiliary oceanographic sensors for combined environmental profiling.

Do you have application questions?

Accessories

See all Accessories

Accessories for Rosette station 12 bottles

  • # 61.xxx

    Niskin Water Sampler 1.7 to 12 L

    Non-metallic Niskin bottles compatible with this rosette system.

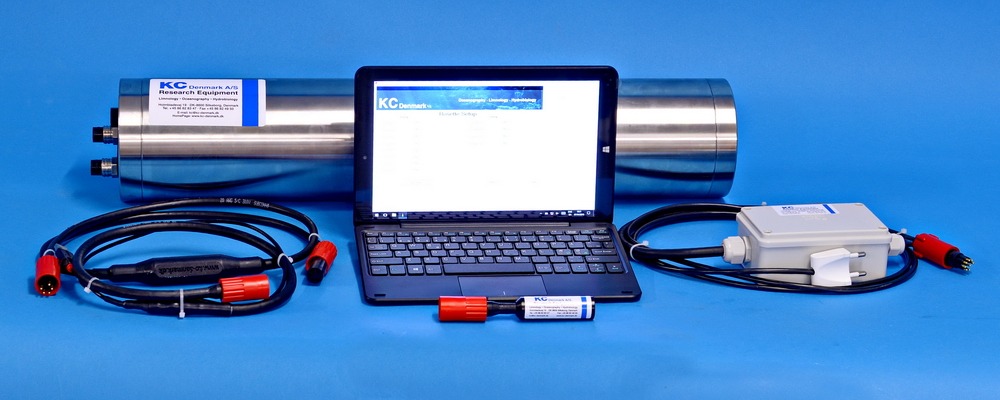

  • # 100.226

    Battery 100.226

    Pressure-stable 24 V DC battery for 6000 m operation.

  • # 100.217

    Battery 100.217

    Standard 24 V DC battery for operation up to 4000 m.
