Rosette station 24 bottles

Product #: 60.070

AISI 316 stainless steel rosette rack for 24 Niskin bottles, motor-driven release system, with support for CTD integration and deep-sea operation up to 6000 m.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 10 60.070 Rosette Rack F 1000 1000 1
Imgi 10 60.070 Rosette Rack F 1000 1000 1
Imgi 10 60.070 Rosette Rack F 1000 1000 1
Imgi 11 Battery And Tablet Fa 1000 400 1
Imgi 11 Battery And Tablet Fa 1000 400 1

About

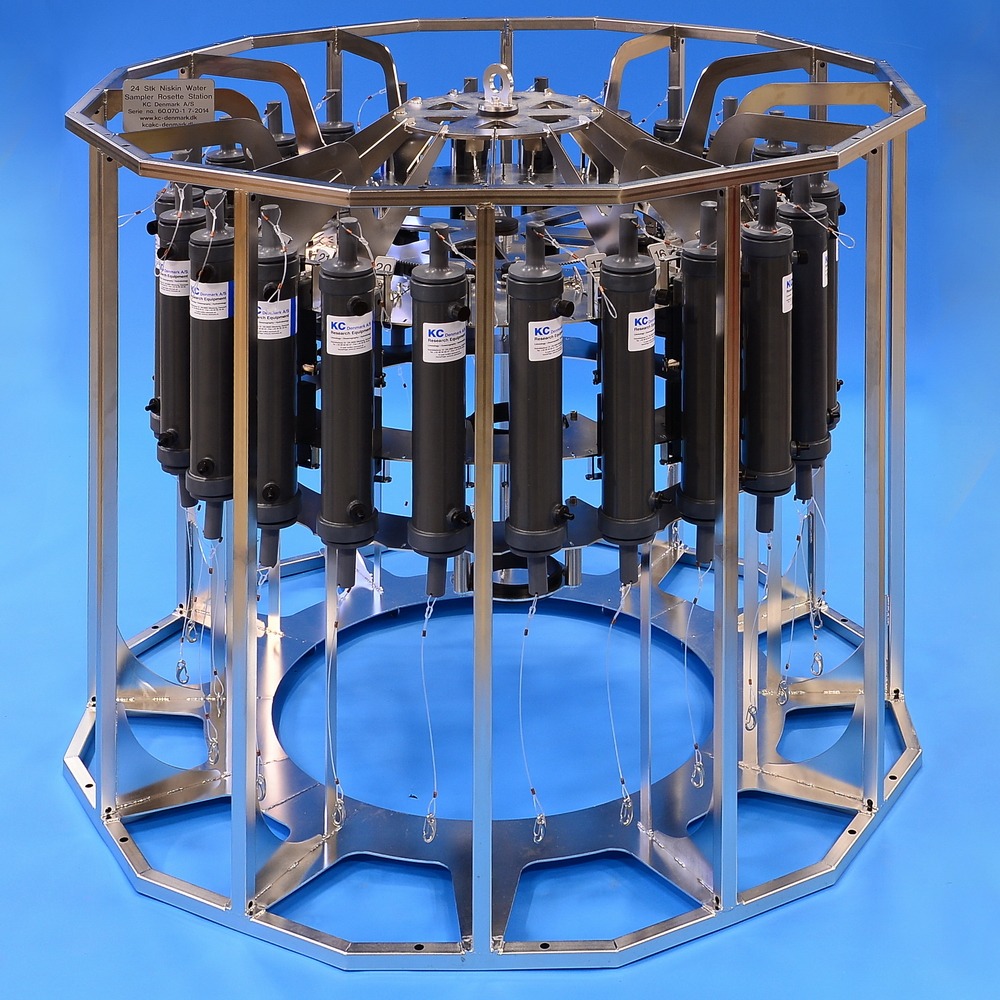

The KC Denmark Rosette Station 24 Bottles (model 60.070) is a robust, deep-sea water sampling system designed for up to 24 Niskin bottles. The rack is constructed from corrosion-resistant AISI 316 stainless steel and supports Niskin bottles in sizes ranging from 1.7 to 12.0 liters. The non-metallic bottle interiors prevent contamination and feature Delrin stopcocks, air vent screws, and seawater-resistant Para/Latex closure bands. The rosette’s release mechanism is motor-driven (24 V DC) and can be operated manually, through a programmable time-lapse trigger, or via pressure activation. An integrated control system with software provides real-time monitoring of sampler status, battery voltage, and motor current. The rack includes space for a CTD unit and offers an optional reversing thermometer assembly. Depth-rated to 6000 meters (with battery 100.226) or 4000 meters (with battery 100.217), it is suited for demanding oceanographic applications requiring precise multi-sample collection.

Contact us regarding this product

Features

Highlighted features for Rosette station 24 bottles

01
Motor-driven release mechanism
Operated by a 24 V DC system with manual, programmable, and pressure-triggered control options.
02

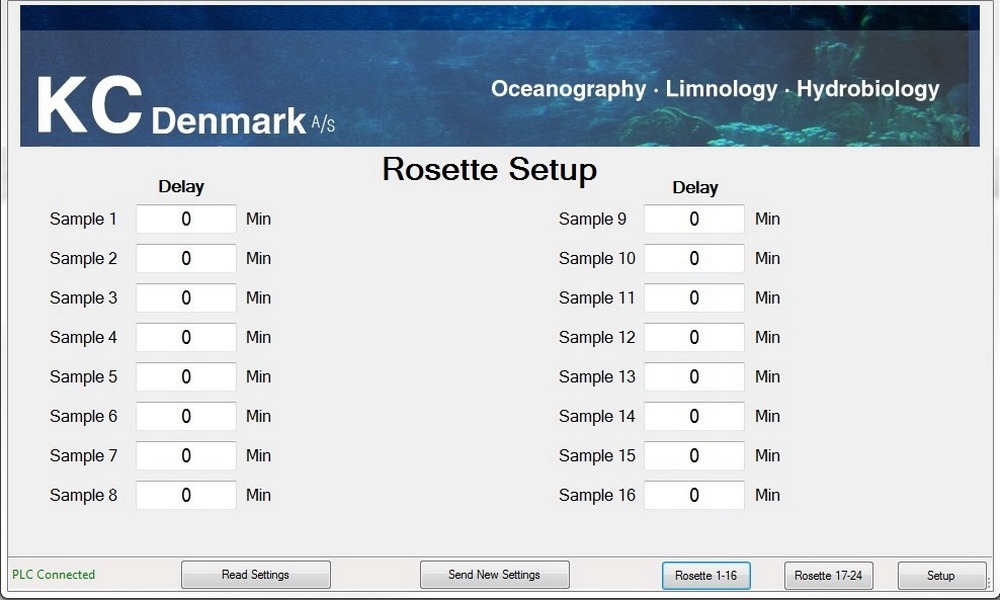

Software monitoring and diagnostics
Displays real-time information such as sampler status, motor current, and battery voltage.
03
Deep-water operation
Capable of functioning at depths up to 6000 m with pressure-stable battery 100.226.
04
CTD and thermometer integration
Provides mounting space for a CTD rack and optional reversing thermometer assembly.
05
Durable, corrosion-resistant design
AISI 316 stainless steel structure and non-metallic bottle components ensure longevity in marine conditions.

Specifications

Rosette station 24 bottles Specifications

Capacity
24 Niskin bottles (1.7–12 L each, series 61.xxx)
Material
AISI 316 stainless steel
Release system
Motor driven (24 Volt DC)
Control options
Manual, programmable, or pressure-triggered

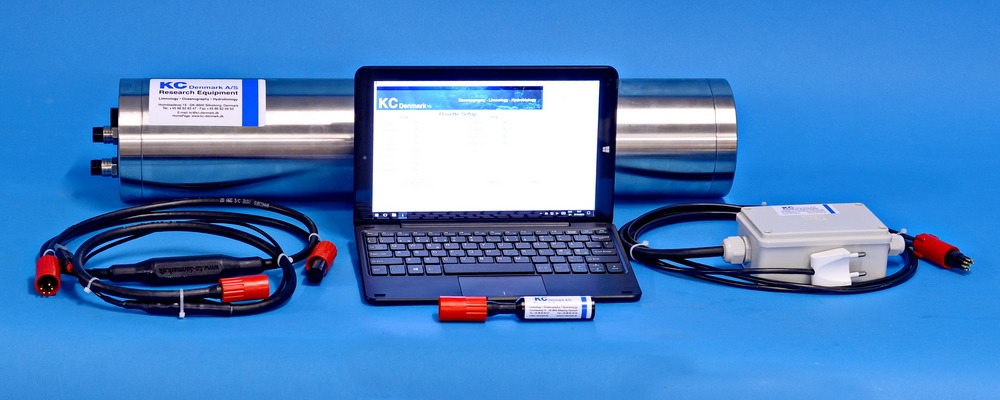

Battery options
100.226 (6000 m), 100.217 (4000 m)
Deployment duration
Up to 12 months with standard battery
Recommended wire diameter
6 mm

Standard Delivery Content

The contents of a standard order of Rosette station 24 bottles

  • Rack for 24 Niskin bottles made from AISI 316 stainless steel
  • Motor-driven release system (24 Volt DC)
  • Electronics with monitoring and control software

Application

Ideal for oceanographic research and environmental monitoring, enabling simultaneous or sequential collection of 24 discrete water samples at various depths, compatible with CTD and other sensors.

Do you have application questions?

Accessories

See all Accessories

Accessories for Rosette station 24 bottles

  • # 61.xxx

    Niskin Water Sampler 1.7 to 12 L

    Non-metallic water bottles compatible with this rosette station.

  • # 100.226

    Battery 100.226

    Pressure-stable 24 V DC battery suitable for 6000 m operation.

  • # 100.217

    Battery 100.217

    Standard 24 V DC battery for operation up to 4000 m.
