Rosette station 6 bottles

Product #: 60.050

AISI 316 stainless steel rack for 6 Niskin water samplers, motor-driven release system, compatible with CTD and deep-sea operations up to 6000 m.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 10 60050 Niskin Rack F 1000 900 1
Imgi 10 60050 Niskin Rack F 1000 900 1
Imgi 10 60050 Niskin Rack F 1000 900 1
Imgi 11 Battery And Tablet Fa 1000 400 1
Imgi 11 Battery And Tablet Fa 1000 400 1

About

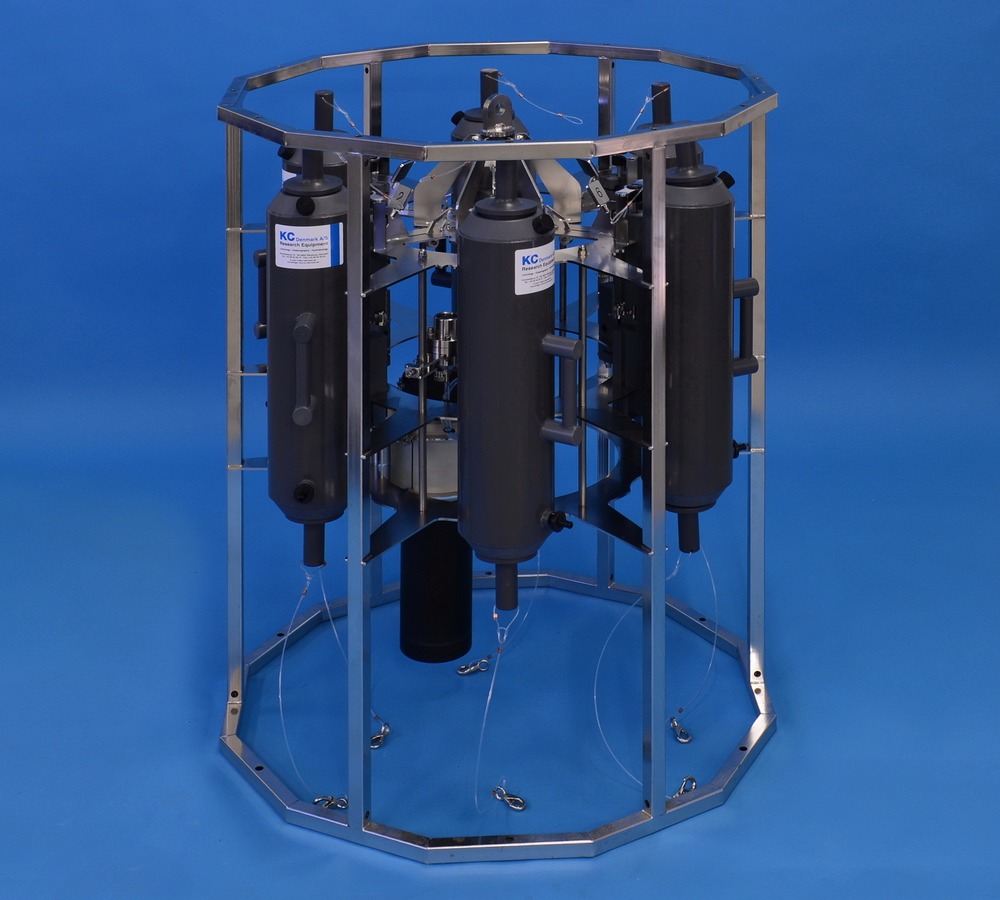

The KC Denmark Rosette Station 6 Bottles (model 60.050) is designed for mounting six Niskin water samplers on a robust AISI 316 stainless steel frame. The rack allows for automated or manual triggering and includes a motor-driven release system operating at 24 Volt DC. The system can be controlled manually or through a programmable time-lapsed trigger and supports pressure-triggered release. It includes software that displays status information such as sampler position, battery voltage, and motor current. The unit provides space for mounting a CTD rack and can optionally include a reversing thermometer assembly. The rosette is depth-rated for 6000 m when used with battery 100.226, or 4000 m with battery 100.217. Niskin bottles are made of non-metallic PVC tubing with Delrin stopcock and air vent screw, featuring AISI 316 stainless steel clamps and Para/Latex closure bands for seawater resistance.

Contact us regarding this product

Features

Highlighted features for Rosette station 6 bottles

01
Automated motor-driven release
Operates via 24 V DC motor system with options for manual or programmable time-lapse release.
02
Long-term deployment
Supports deployments up to 12 months using standard batteries.
03
Deep-sea ready
Depth-rated to 6000 meters with compatible battery configuration.
04

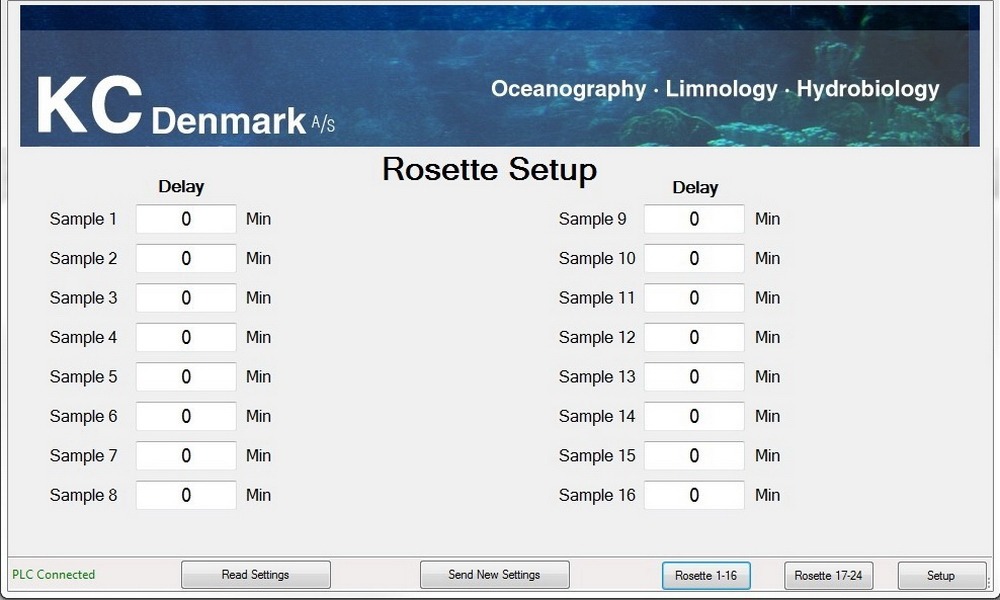

Integrated monitoring software
Displays operational status including sampler position, battery voltage, and motor current.
05
CTD and thermometer integration
Provides space for CTD rack and optional reversing thermometer assembly.
06
Corrosion-resistant construction
AISI 316 stainless steel frame and non-metallic bottle design ensure durability in marine environments.

Specifications

Rosette station 6 bottles Specifications

Capacity
6 Niskin water samplers
Material
AISI 316 stainless steel
Release system
Motor driven (24 Volt DC)
Depth rating
6000 m (battery 100.226), 4000 m (battery 100.217)
Battery type
24 V DC standard battery (12-month endurance)
Trigger options
Time-lapse programmable, manual, or pressure-triggered
Recommended wire diameter
6 mm
Bottle volume range
1.7–12.0 L

Standard Delivery Content

The contents of a standard order of Rosette station 6 bottles

  • Rack for 6 Niskin bottles made from AISI 316 stainless steel
  • Motor-driven release system (24 V DC)
  • Electronics with monitoring software

Application

Designed for deep-sea and oceanographic water sampling at depths up to 6000 meters, allowing collection of up to six discrete samples with motorized or pressure-triggered release.

Do you have application questions?

Accessories

See all Accessories

Accessories for Rosette station 6 bottles

  • # 61.xxx

    Niskin Water Sampler 1.7 to 12 L

    Non-metallic bottles for use with the rosette system; ordered separately.

  • # 100.226

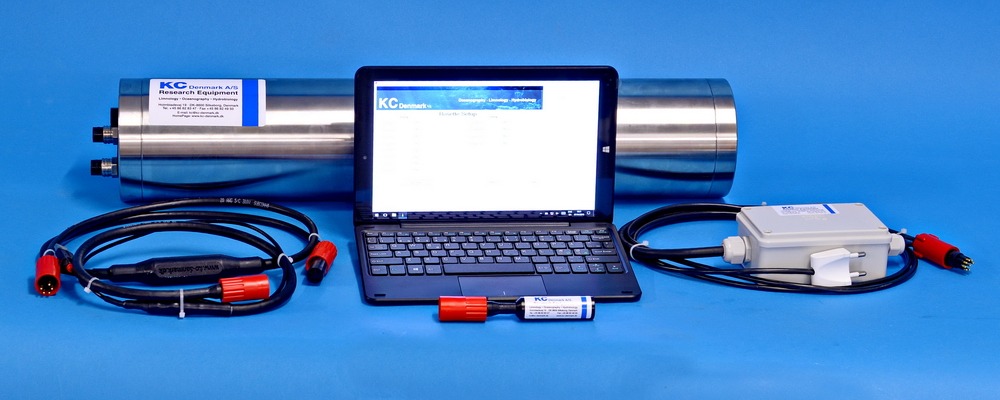

    Battery 100.226

    Pressure-stable battery rated for 6000 m operation.

  • # 100.217

    Battery 100.217

    Battery rated for use up to 4000 m depth.
