Rosette with glass bottles

Product #: 100.270

AISI 316 stainless steel rosette system for 12 glass bottles (1 L each), motor-driven programmable release system rated for 500 m depth.

Explore product sections

About Features Specifications Standard Contents Application Accessories
Imgi 11 100.270 Rosette With Glass Bottles Open Fa 1000 1000 1
Imgi 12 100.270 Rosette With Glass Bottles Released Fa 1000 1000 1
Imgi 12 100.270 Rosette With Glass Bottles Released Fa 1000 1000 1
Imgi 13 Battery And Tablet Fab 1000 600 1
Imgi 13 Battery And Tablet Fab 1000 600 1
Imgi 5 100.270 Rosette With Glass Bottles Open Fa 1000 1000 1 450X450
Imgi 5 100.270 Rosette With Glass Bottles Open Fa 1000 1000 1 450X450

About

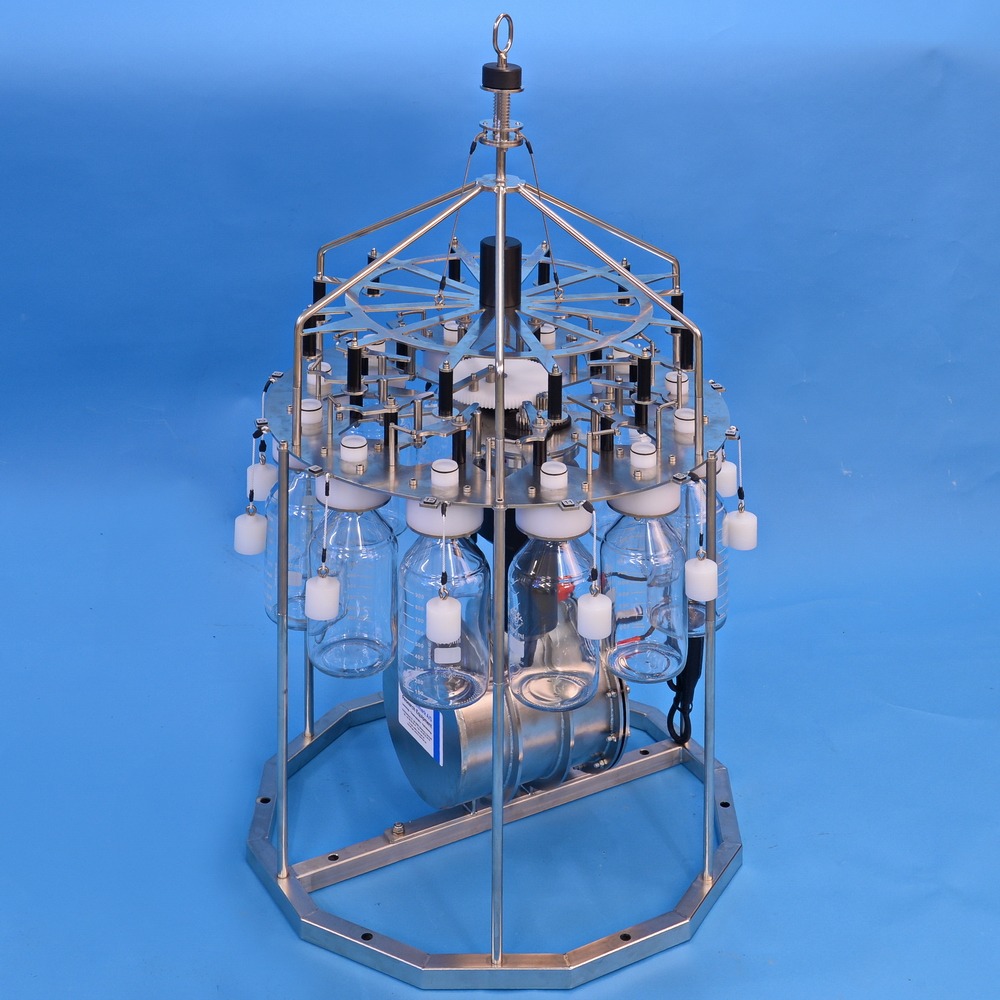

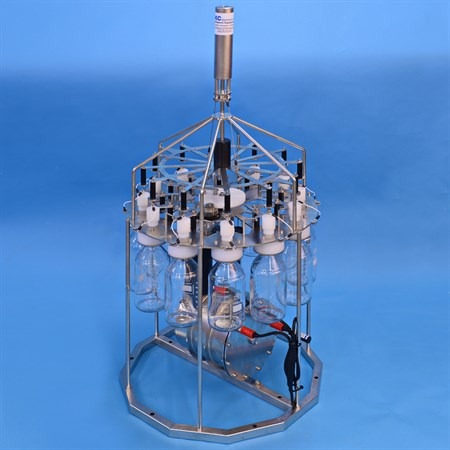

The KC Denmark Rosette with Glass Bottles (model 100.270) is designed for collecting uncontaminated water samples using 12 glass bottles, each with a capacity of 1 liter. The rack is made of AISI 316 stainless steel, offering high corrosion resistance and structural stability. Each bottle remains closed until an individual, programmable release is activated. Before retrieval, a drop messenger releases a mechanism that closes all bottles simultaneously. The rosette features a 24 V DC motor-driven release system that can be operated manually, fully automatically via a time-lapse trigger, or by pressure activation. The system software provides live feedback on operational parameters such as sampler status, motor current, and battery voltage. The design allows for flexible use in oceanographic, limnological, or environmental studies where sample purity is critical.

Contact us regarding this product

Features

Highlighted features for Rosette with glass bottles

01
Programmable release control

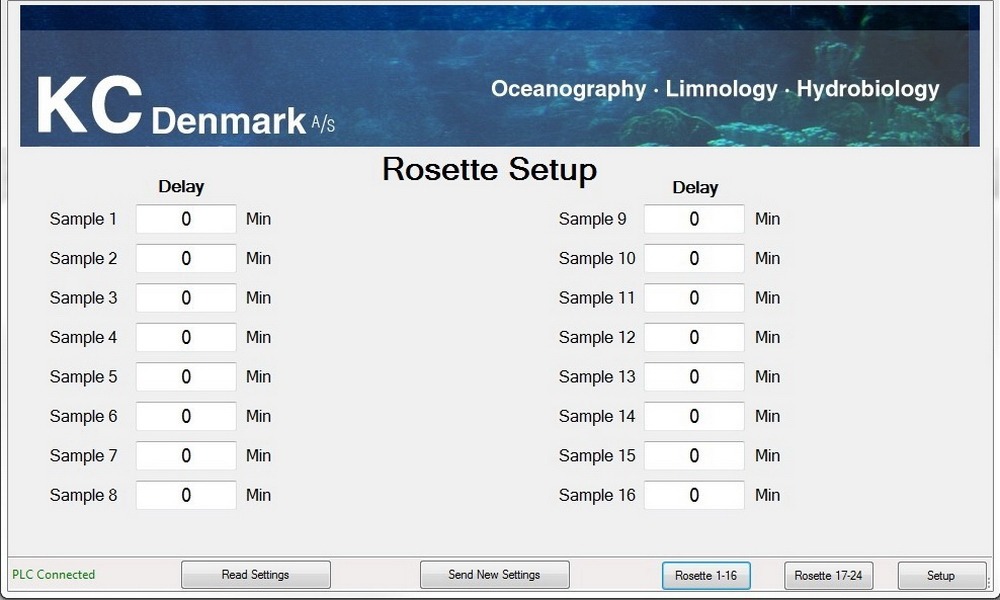

Each bottle can be triggered individually or in sequence through a programmable time-lapse system.
02
Motor-driven and pressure-triggered options
Supports manual, automatic, or pressure-activated release modes for flexibility in deployment.
03
Automatic closing mechanism
A drop messenger system activates simultaneous bottle closure before recovery.
04
Corrosion-resistant design
AISI 316 stainless steel frame ensures durability for marine applications.
05
Monitoring software included
Displays sampler status, battery voltage, and motor current in real time.

Specifications

Rosette with glass bottles Specifications

Bottle capacity
12 × 1 L glass bottles (other sizes on request)
Material
AISI 316 stainless steel
Depth rating
500 m
Release system
Motor driven (24 Volt DC)
Control options
Manual, programmable (time-lapse), or pressure-triggered
Footprint
59 × 59 cm
Height
116 cm
Weight
51 kg

Standard Delivery Content

The contents of a standard order of Rosette with glass bottles

  • Rack for 12 glass bottles (AISI 316 stainless steel construction)
  • Motor-driven release system (24 V DC)

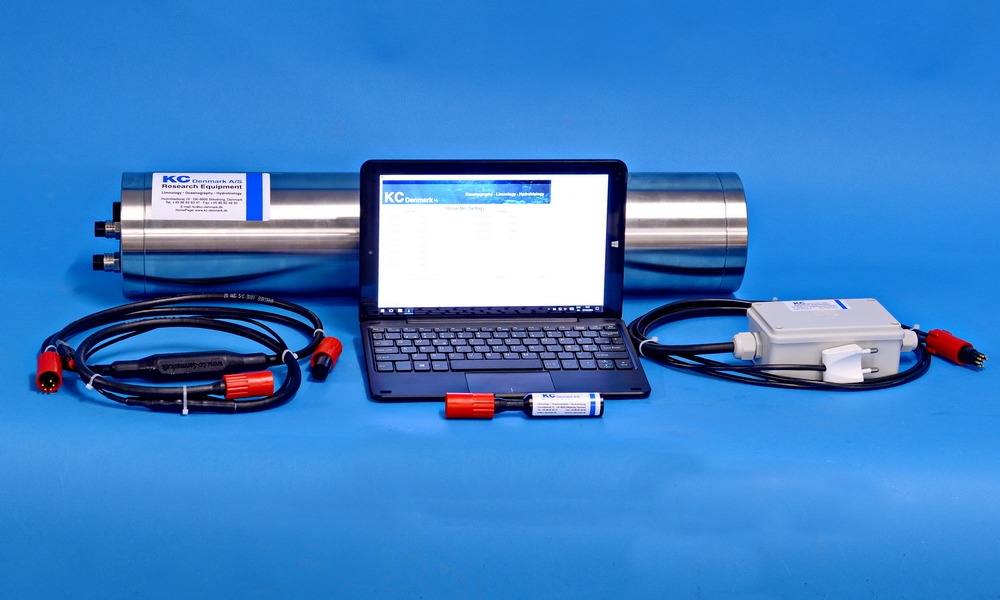

  • Electronic control and software for monitoring motor and battery parameters

Application

Ideal for marine and freshwater research where high-purity water samples are required. Suitable for chemical, biological, and trace-element sampling down to 500 m depth.

Do you have application questions?

Accessories

See all Accessories

Accessories for Rosette with glass bottles

  • # __zz.mis-timelapse

    Time-lapse trigger (optional)

    Allows fully programmable automatic triggering of bottles.

  • # 60.001

    Drop Messenger

    Used to close all bottles simultaneously before recovery.

  • # __zz.mis-power

    Power supply and cables

    Required accessories for motor operation, ordered separately.
